Home > Products > Transformer Oil Purification Machine > ULTRA HIGH VACUUM TRANSFORMER OIL TREATMENT MACHINE,ZYD INSULATING OIL PURIFIER
ULTRA HIGH VACUUM TRANSFORMER OIL TREATMENT MACHINE,ZYD INSULATING OIL PURIFIER
- 50 Cubic Meter / Cubic Meters per Month
- CHONGQING
- T/T L/C
- 15 days
-
Waste Oil Regenerating Equipment for Various Dielectric Oils
-
BZ Transformer oil regeneration Equipment
-
Transformer OLTC On-load Tap Changer Oil Purifier//separator/Regeneration/Dehydration Machine
-
Insulation Oil Regeneration Machine
-
On-load Tap Changer Oil Filter Oil Filtration Machine Oil Decanter
-
Specilize Model BZ Transformer Oil Regeneration Unit
Product Details
| Brand Name: | ASSEN | Place of Origin: | China | Model Number: | ZYD |
| Certification: | iso9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 600 kg |
| Dimension(L*W*H): | 1050*750*1350mm | Voltage: | Three Phase 50HZ380V(as per the customer's requirements) | Usage: | Transformer Oil |
| Condition: | New | Power(W): | 35500 | Working Pressure: | ≤0.3 |
| Flow: | 30-300 L/min |
Product Description
Description

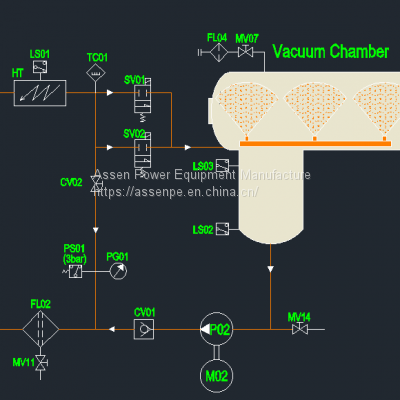

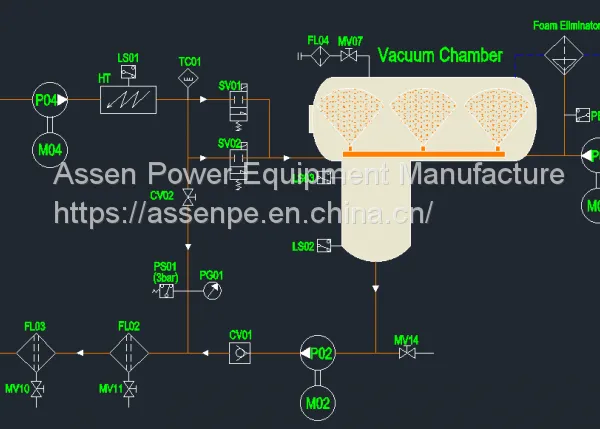

In order to achieve optimal dielectric strength and insulating performance inside of transformers and circuit breakers, dielectric oils must be kept absolutely clean and dry. Our ZYD vacuum transformer oil recycling machine, designs and builds the most effective, durable, and user-friendly Hi-Vacuum system on the market today. ZYD transformer oil recycling machine combines with unique and advanced vacuum dewatering, degassing components and three grades filtering system for rapidly and effectively separating water, gas, particles from oil. Special engineered design features maximize the water extraction rates of our systems, and top-quality components and workmanship ensure years of maintenance-free operation and performance
Technical Data
Parameters | Unit | ZYD-30 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 | |
Working vacuum | MPa | 0.08 ～ 0.099 | |||||||
Working Pressure | MPa | ≤0.3 | |||||||
Temperature Range | ℃ | 20 ～ 80 | |||||||
Power | Three Phase 50HZ380V(as per the customer's requirements) | ||||||||
Working Noise | dB（A） | 75 | 75 | 75 | 80 | 80 | 80 | 80 | |
Heating Power | kW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | |
Total Power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | |
Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
Weight | kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | |
Overall | Length | mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | |
Height | mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 | |
After treatment, oil quality guarantees to the following specifications
Moisture | PPM | ≤3 |
Gas content | % | ≤0.01 |
Impurity size | μ | ≤1 (no free carbon) |
Breakdown voltage | kV | ≥75 |
IFT | dynes/cm | ≥40 |
Acid value | mgKOH/g | ≤0.03 |
Dielectric loss factors | tgδ(90°C) | ≤0.001 |
