Application

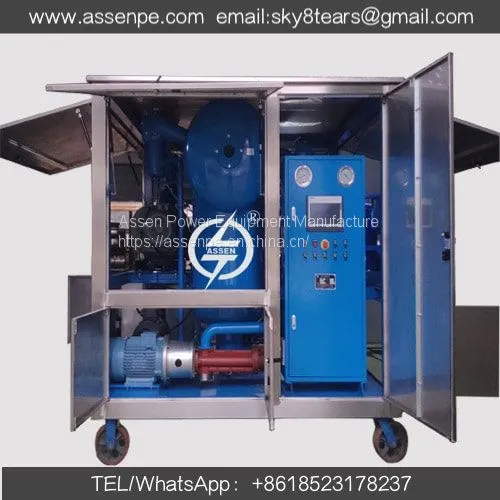

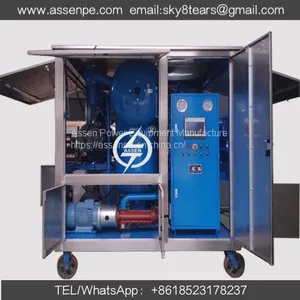

Assen ZYD-E Transformer Oil Treatment Plant equips stainless steel material canopy, widely used in the oil purification treatment and vacuum hot oil circulation drying in the installation and maintenance of various large transformer equipment.Not only use in Insulating oil purification treatment in 110KV-550KV transformer, but also applies to high-grade new oil, the high depth of processing imported oil.
Transformer Oil Treatment Plant's Features
1.Expectations on an effective oil plant for treatment of insulating oil.
2.PLC mode,Easy and failsafe operation.
3.On-line measuring and recording of process parameters.
4.It is equipped with leakage and overload stop devices to protect the motor
5.Fast and efficient extrusion of moisture, gas, machinery impurities in the oil, and other harmful substances, improve the insulating oil flash point and breakdown voltage.
6.Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤5Pa
7.Flexibility in application(flow frequency conversion, suitable for transformers of different sizes)
8.Lower maintenance and replacement expense.
After treatment
Moisture | PPM | ≤3 |
Gas content | % | ≤0.01 |
Impurity size | μ | ≤1 (no free carbon) |
Breakdown voltage | kV | ≥75 |
IFT | dynes/cm | ≥40 |
Acid value | mgKOH/g | ≤0.03 |
Dielectric loss factors | tgδ(90°C) | ≤0.001 |
