PLC System Double Stage High Vacuum Transformer Oil Dehydration Machine, Insulating Oil Purifier
Application
Transformer shutdown time increase because of the aging transformer oil. So transformer oil purification is an very important step of transformer maintenance. PLC System Double Stage High Vacuum Transformer Oil Filtration Machine is used in repair of power transformers and reactors with voltage up to 110 kV inclusively, and for recondition of transformer oils and also at mineral oil facilities in view of further regeneration.
PLC System Double Stage High Vacuum Transformer Oil Filtration Machine is mainly used to improve the properties of insulation oil. It can remove water content, gas, particulate matter and so on. It can remove the impurities from the transformer oil effectively and rapidly so as to boost the performance of transformers, circuit breakers, mutual inducts, cable, and capacitors which have insulation system. It equips double stage vacuum pump which can ensure the quality after treatment. It specialize in purifying waste transformer oil, insulating oil of high voltage and super high voltage transformer. After treatment, the BDV of transformer oil will be above 75kv.

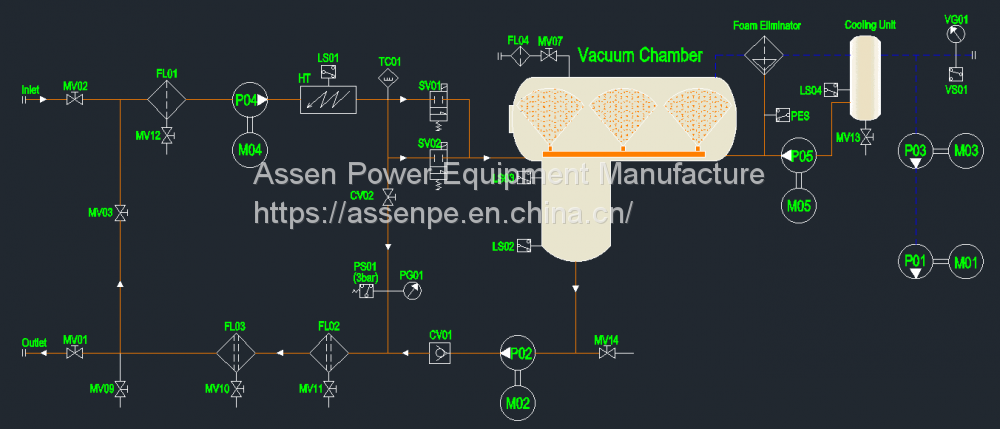

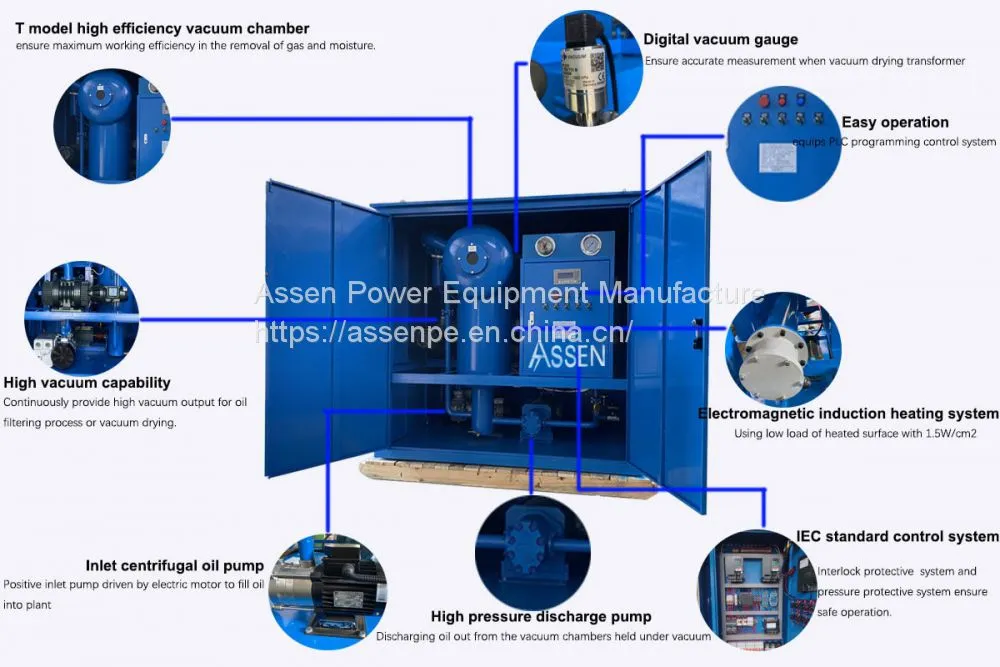

Structure of PLC System Double Stage High Vacuum Transformer Oil Filtration Machine
Features:
1. Dehydration, degassing, and impurity removal of 110-1100KV main transformer insulation oil.
2. Vacuum drying of 110-1100KV main transformer insulation oil.
3. Enhance the value of breakdown voltage greatly
4. overload stop device
5. low noise oil pumps and friendly to environmental
6. save your human consumption and after treatment, the waste transformer oil can be used as new oil
7. 0-18000L/h can satisfy your different needs of flow rate

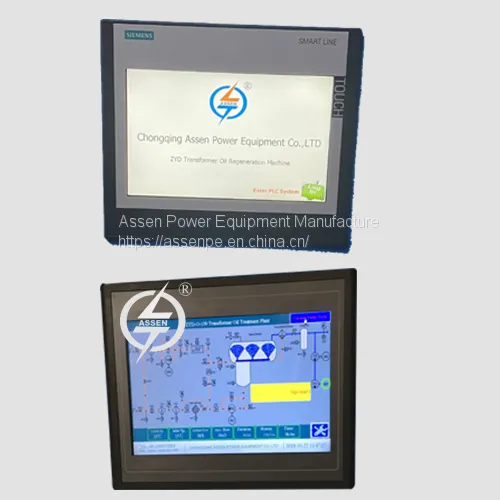

8. PLC control system can record all data during process, and automatic operation to save your human comsuption.
Technical Parameters
| Parameters | Unit | ZYD-35 | ZYD-50 | ZYD-100 | ZYD-150 | ZYD-200 | ZYD-250 | ZYD-300 | |
| Flow | L/Hr | 2000 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
| Working vacuum | Mpa | -0.08 ～ -0.099 | |||||||
| Working Pressure | Mpa | ≤0.4 | |||||||
| Temperature Range | ℃ | 0 ～ 100 | |||||||
| Power | Three Phase 50HZ 380V(or as needs) | ||||||||
| Working hours without Trouble | Hour | 4000 | |||||||
| Continuous Working Hours | Hour | 150 | |||||||
| Working Noise | dB（A） | 75 | 75 | 75 | 80 | 80 | 80 | 80 | |
| Heating Power | KW | 16 | 30 | 45 | 60 | 75 | 90 | 120 | |
| Total Power | KW | 22 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | |
| Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
| Weight | Kg | 750 | 850 | 1150 | 1150 | 1450 | 1600 | 2200 | |
| Overall | Length | mm | 1380 | 1480 | 1880 | 1980 | 2100 | 2300 | 2550 |
| Width | mm | 1300 | 1450 | 1860 | 1960 | 2060 | 2200 | 2490 | |
| Height | mm | 1350 | 1450 | 1850 | 1950 | 2050 | 2280 | 2520 | |

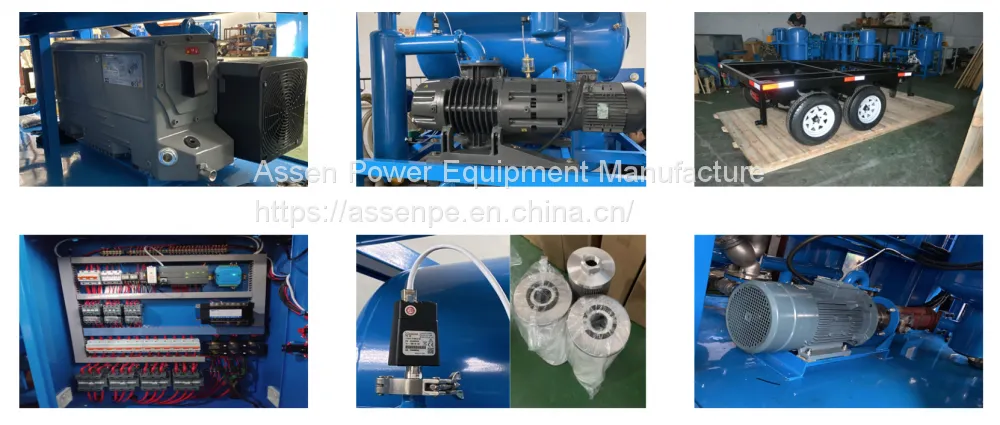

Main Parts
Company information
Chongqing Assen Power Equipment Co., LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff, professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Filtration Machine, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipment operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
