Functions
﹒To purify fuel oil and diesel oil
﹒The water and dust purifying of hydraulic oil lubrication system
﹒Access hydraulic lubrication system comprehensively improve the cleanliness of the system
Application

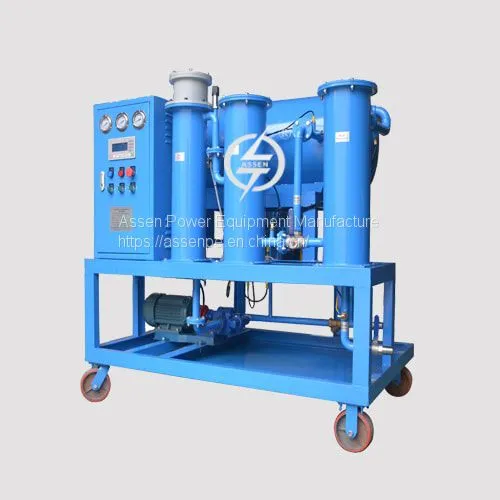

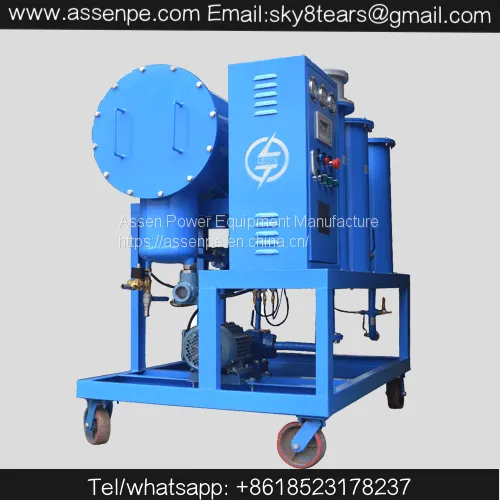

TYL Coalescence-separation Fuel Oil Purification machine has five filtration systems, combining precise filtration and dewatering two functions into one efficient. The introduction of the US “coalescing separation” technology for dehydration, which has high efficient dehydration, especially is adapted to the large amount of water separation from oil, dehydration ability is far better than the centrifugal method, you can get rid of all of the oil-water emulsion medium structure ; by filtration, particle filtration system, the cleanliness of the medium can be controlled in a stable state of the system requirements to ensure the cleanliness; the oil does not change the physical and chemical properties, to extend the service life of the oil; energy small, low operating costs; excellent system configuration, continuous strong performance for online operation.
Fuel Oil Purification System's Technical Paramters
Parameters |
Unit |
TYL-50 |
|
Flow rate |
L/hr |
3000 |
|
Working pressure |
MPa |
≤0.5 |
|
The original pressure loss |
MPa |
≤0.1 |
|
Working noise |
Db (A) |
≤65-75 |
|
Filtration precision before pump |
μm |
100 |
|
First filtration precision |
μm |
20 |
|
Coalescence-separation Filter |
Optional |
A. Standard coalescence-separation Filter Precision:10μm |
|
B. Advanced coalescence-separation Filter Precision:3μm |
|||
Continuous running hours |
H |
≥720 |
|
Power Supply |
380 V A/C, 3 PHASE, 50 Hz (or as per required) |
||
Water discharge |
L |
4L/Per time |
|
Heating Power |
KW |
36 |
|
Inlet (outlet) Caliber |
mm |
Ф32 |
|
Size |
mm |
1580*1030*1480 |
|
Weight |
Kg |
420 |
|
