6000L/h Transformer Oil Dehydration Equipment, Insulating Oil Drying Process
Application
ASSEN 6000L/h Transformer Oil Dehydration Equipment are portable maintenance equipment, it is a process the reduces, or in fact, eliminates all the physical contaminants from oils and oil dryting process, using physical processes such as oil filtration, dehumidification, and degasification. DVTP transformer oil purifier machines process effectively removes all those particles that are larger than 1 micron as well as most of the dissolved water and gases in the oil. Enhance the value of breakdown voltage over 75-80KV.
Transformer Oil Treatment Plant's Features
1. Pre-Electromagnetic-valve before vacuum pump to prevent the vacuum oil flow backwards.
2. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
3. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
4. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
5.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Pre-gas-water separator before vacuum pump to prolong the vacuum pump and vacuum pump oil.
7. Double protecting system, Gas-water separator equips liquid level protector to prevent oil escape from vacuum pump
8. Optical oil foam detector and high oil level detector to prevent oil escape from vacuum pump
9. Low oil level sensor to prevent oil pump idle working, so prolong oil pump lifetime
10. Completely Intelligent pressure protector to protect oil pump and fine filter
11. Completely Intelligent vacuum controller to protect the booster pump
12. Fully intelligent temperature controller to prevent the large surge current
13. Phases protector, voltage overload protector to achieve unattended
Technical Parameters
Parameters
Unit
ZYD-100
Flow rate
L/Hr
0～9,000
Working vacuum
Mpa
-0.08 ～ -0.099
Working Pressure
Mpa
≤0.5
Temperature Range
℃
0 ～ 100
Power
380V, 50Hz, 3P or as your needs
Working hours without trouble
Hr
≥4000
Continuous working hours
Hr
≥720
Working Noise
Db（A）
75
Heating Power
KW
45
Total Power
KW
52.5
Inlet/Outlet
mm
Φ42
Weight
Kg
1050
Overall
Length
mm
1200
Width
mm
950
Height
mm
1500
Spare Parts
1
Two sets of 20M PVC Oil Pipes for both inlet/outlet with fast connector
2
20M Vacuum Pipes for Evacuation

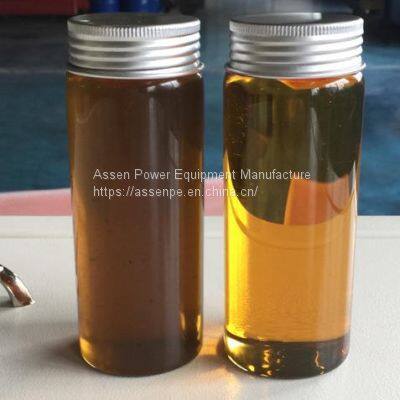

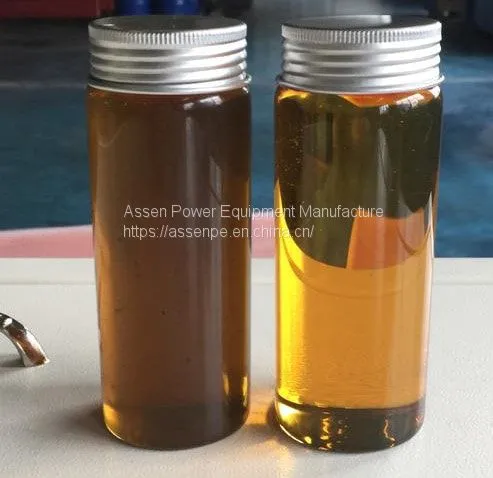

After treatment
Moisture |
PPM |
≤3 |
Gas content |
% |
≤0.01 |
Impurity size |
μ |
≤1 (no free carbon) |
Breakdown voltage |
kV |
≥75 |
IFT |
dynes/cm |
≥40 |
Acid value |
mgKOH/g |
≤0.03 |
Dielectric loss factors |
tgδ(90°C) |
≤0.001 |
Main Parts
