Home > Products > Transformer Oil Purification Machine > Moisture Remove CE Qualified Transformer Oil Regeneration Machine, Insulating Oil Purification
Moisture Remove CE Qualified Transformer Oil Regeneration Machine, Insulating Oil Purification
- 50 Cubic Meter / Cubic Meters per Month
- CHONGQING
- T/T L/C
- 15 days
- Waste Oil Regenerating Equipment for Various Dielectric Oils
- BZ Transformer oil regeneration Equipment
- Transformer OLTC On-load Tap Changer Oil Purifier//separator/Regeneration/Dehydration Machine
- Insulation Oil Regeneration Machine
- On-load Tap Changer Oil Filter Oil Filtration Machine Oil Decanter
- Specilize Model BZ Transformer Oil Regeneration Unit
Product Details
Brand Name: | ASSEN | Place of Origin: | China | Model Number: | DVTP |
Certification: | iso9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 1050KG |
Dimension(L*W*H): | 1200*950*1500mm | Voltage: | 380v | Usage: | Transformer Oil |
Condition: | New | Power(W): | Three Phase 50HZ380V(as per the customer's requirements) | Working Pressure: | ≤0.3MPA |
Flow: | 30-300L/h |
Product Description

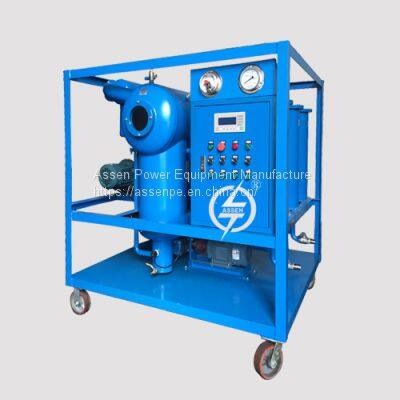

Moisture Remove CE Qualified Transformer Oil Regeneration Machine, Insulating Oil Purification
Performance
In a single pass through the purifier at a full flow rate:
Water Removal: 50 ppm down to <5 ppm in a single pass
down to <3 ppm after two passes. (According to the PPM Tester)
Gas Removal: From fully saturated with air (10% to 12% by volume) down to less than 0.1% by volume.
Particulate Matter Removal: 98% of particles over 0.5mm or over 1 mm or over 5mm at customers preference.
Dielectric Strength: Improve dielectric strength up to 75-80KV for New oil.
Acid Removal: after treatment, the acid value will down to less than 0.1mgKOH/g
Free Carbon Removal: there is no free carbon's residue
1.Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤ 5Pa
2.Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and dielectric strength improving greatly.
3.Double-horizontal film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
4.Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies.
5.Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6.Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7.Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8.Functions of live line work onsite, vacuum drying and vacuum oiling.
9. Reliable, safe to use
After treatment
Moisture | PPM | ≤3 |
Gas content | % | ≤0.01 |
Impurity size | μ | ≤1 (no free carbon) |
Breakdown voltage | kV | ≥75 |
IFT | dynes/cm | ≥40 |
Acid value | mgKOH/g | ≤0.03 |
Dielectric loss factors | tgδ(90°C) | ≤0.001 |
Main Parts
Assen's Information
Professional
20 years experience of manufacturing and exporting oil purification machines
Reliable
24/7 after service and technical support
Efficient
Customized your waste oil solutions by our team
Assen's Factory
Contact information
Sky ZHOU, Sales Manager
Email: sky8tears@gmail.com
Tel/whatsapp +8618523178237
Website:www.assenpe.com
