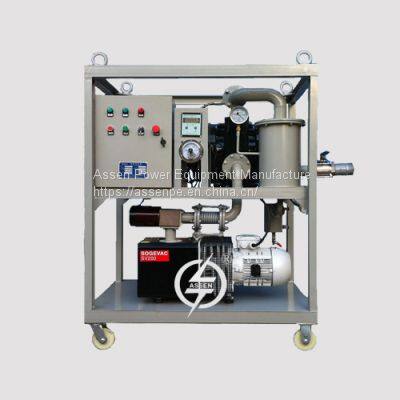

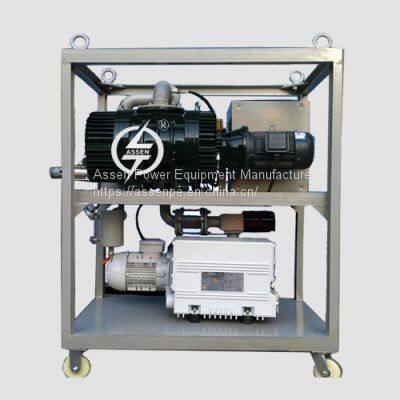

Asv High Efficiency Transformer Vacuum Pumping System Unit with Vacuum Rotary Vane Pump and Roots Pump
Structures
Application
Vacuum is drawn in transformer tank with aid of transformer evacuation system to remove moisture and gases from insulation/oil. Alternately during the commissioning of the transformer, nitrogen is evacuated with the transformer evacuation system before new oil filling or oil alteration in transformers. Transformer evacuation is a wet process that necessitates proper moisture extraction before its entry into the vacuum pump.
ASSEN has designed an ASV series transformer vacuum pumping system that has efficient moisture condensers with adequate cooling areas that are placed in line with the vacuum pump. In case of non-availability of cold water circulation at the site, condensers are also provided with the facility of ice cups which aid to hold ice and improve the moisture condensation.
The transformer evacuation systems are robustly designed with vacuum pumps and booster pumps (ROOTS PUMP) to handle large volumes of moisture in transformers.
Vacuum Pumping System's Technical Parameter
| Name | ASV-70 | ASV-150 | ASV-300 | ASV-600 | ASV-1200 |
| Pumping Rate (L/s) | 70 | 150 | 300 | 600 | 1200 |
| Ultimate Vacuum (Pa) | ≤7 | ≤7 | ≤7 | ≤5 | ≤5 |
| Operating Vacuum(Pa) | ≤133 | ||||
| Pumping Stage | 2 | 2 | 2 | 2 | 3 |
| Net Weight | 450 | 600 | 900 | 1200 | 1500 |
| Overall Dimensions (cm) | 100*60*140 | 120*65*150 | 120*70*160 | 130*80*180 | 150*100*190 |

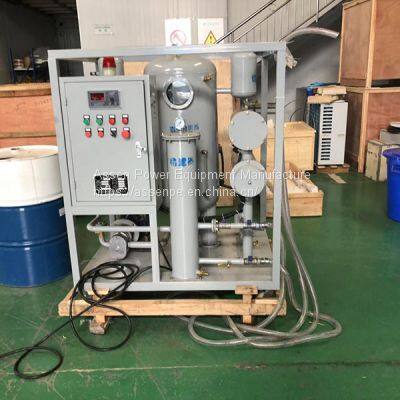

Real photo as Reference
About Assen
Company Information:
Chongqing Assen Power Equipment Co.,LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff, professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification System, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Vacuum Pumping System, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipment operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
Assen's Factory and Visitors
Assen's World Partners
Assen's Onsite Project
Assen's Main Product
