Elecnova industrial automation solutions intelligent motor protection controller mccb siemens
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
WDH-31-200 AC 380V intelligent overload motor protection controller
-
WDH-31-580 water pump intelligent multi protection motor overload controller
-
Elecnova side-open IoT wireless LoRa/RS485 1/3 phase CT integrated multi-functional energy meter
-
din rail mounted rs485 interface power meter lora wireless transmission module
-
PD194Z-E14D din rail mounted lora wireless transmission energy meter
-
S15 Nb-iot Gateway Wireless Communication Module Iot Device Wireless Transmission, Industrial CE CCC No Corrosive Gas IP20
Product Description
Product Description

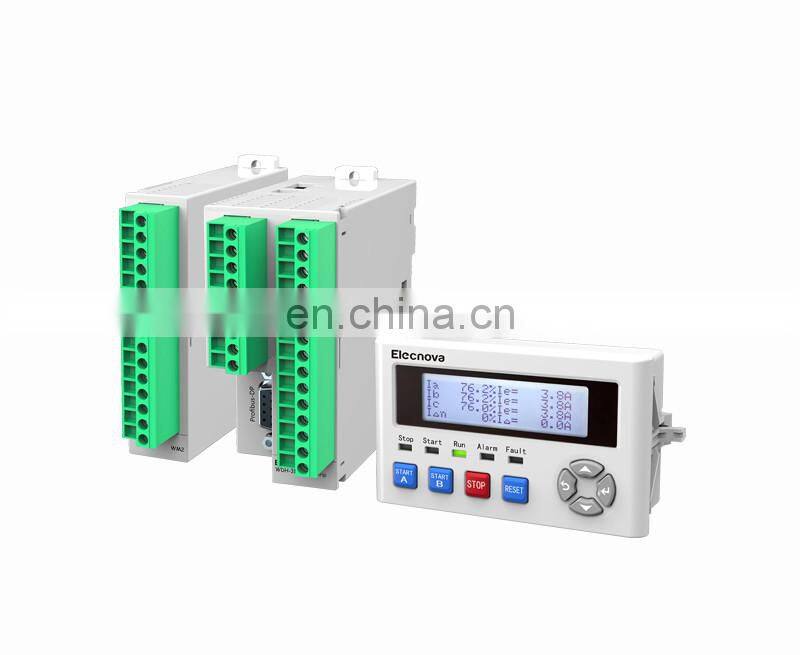

Product name：Elecnova industrial automation solutions intelligent motor protection controller mccb siemens
WDH-31-580 is a new generation multi-functional intelligent motor protection controller for the thermal relay, time replay and asynchronous motor etc. There are 16 motor protection types including residual current, star-triangle, current unbalance, residual CT, direct start, bi-direction start, start timeout, phase-sequence, phase loss, external fault, tE time, short circuit protection, overload and underload protection. It can be the equivalent of SIMOCODE pro 3UF7, Multilin MM300, TeSys T and UMC100. It has achieved international basic standard IEC 60079-14, IEC 60079-17, IEC 61241-14, IEC 61241-17. It is widely used in chemical industry, steel, mining, water supply, waste water treatment, pharmaceutical, power plants, asynchronous, asynchronous motor, belt distribution, HVAC system, fan controller, protection and monitoring.
WDH-31-580 is a new generation multi-functional intelligent motor protection controller for the thermal relay, time replay and asynchronous motor etc. There are 16 motor protection types including residual current, star-triangle, current unbalance, residual CT, direct start, bi-direction start, start timeout, phase-sequence, phase loss, external fault, tE time, short circuit protection, overload and underload protection. It can be the equivalent of SIMOCODE pro 3UF7, Multilin MM300, TeSys T and UMC100. It has achieved international basic standard IEC 60079-14, IEC 60079-17, IEC 61241-14, IEC 61241-17. It is widely used in chemical industry, steel, mining, water supply, waste water treatment, pharmaceutical, power plants, asynchronous, asynchronous motor, belt distribution, HVAC system, fan controller, protection and monitoring.
Motor protect function | 16 |
Communication | Modbus-RTU, Double Modbus-RTU, Profibus-DP |
External CT Model | SHI-ZT40 |
Diemension | 105mm*90mm(protector), 98mm*61mm(Display module) |
Area of Application | MCC |
Working range | AC/DC 80~270V |
Operating temperature | -20°C~60°C |
Insulation | ≥2kVAC |
CT optional | External CT/ Residual CT |
Specification
Product Name | Elecnova Mccb industrial automation intelligent motor protection controller | ||
System | Rated voltage of motor | AC 380V or AC 660V,50Hz | |
Rated current of motor | 0.1A~800A | ||
Insulation resistor | ≥100MΩ | ||
Safe Power Supply | Working range | AC 100~415V | |
Power consumption | ≤3VA | ||
Environment Condition | Operating temperature | -20℃~+60℃ | |
Relative humidity | ≤93%RH | ||
Storage temperature | -25℃~70℃ | ||
IP degree | Front:IP64,Rear:IP20 | ||
Protection Accuracy | Current/voltage | ±1% of setting value | |
Thermal capacity | ±1% of setting value | ||
Delayed acting time | When delayed acting value <2s:±100msWhen delayed acting value ≥ 2s:±5% | ||
Control Relay | Contact capacity | AC 250V/5A | |
Signal Relay | Contact capacity | AC 250V/5A | |
Analog Output | Mode | DC 4~20mA,RL≤350Ω | |
Insulation | ≥2kVAC | ||
Product Components
■ Controller
■ SHI-I 3 phase CT
■ Residual current CT(Optional)
■ External CT(Optional)
■ SHI-I 3 phase CT
■ Residual current CT(Optional)
■ External CT(Optional)

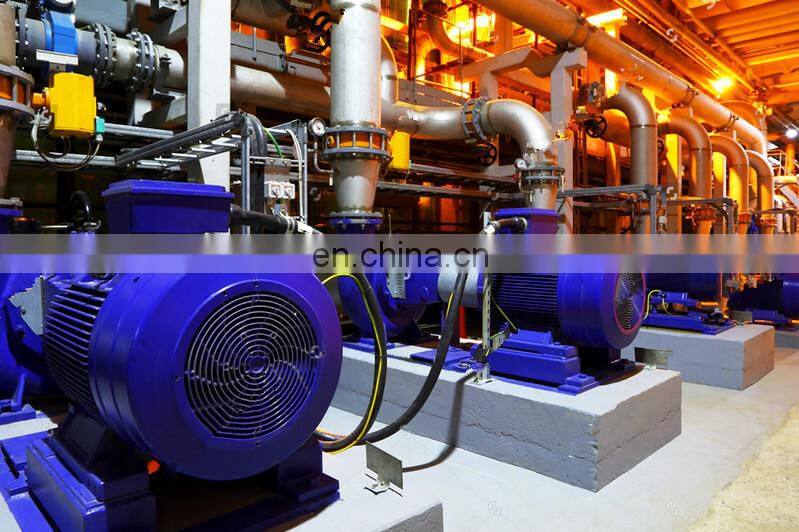

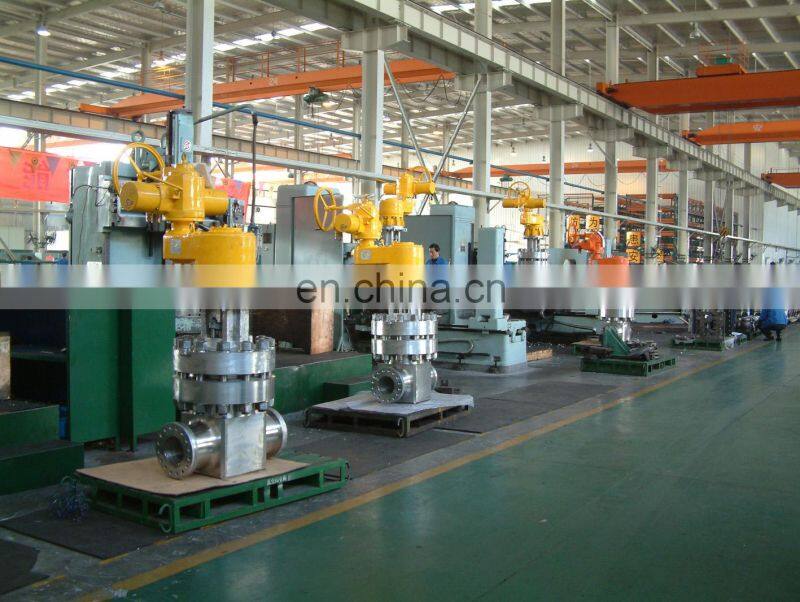

Application
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or
by negotiated for the both parties.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or
by negotiated for the both parties.
