Help CenterSFR-M Industrial Power Capacitor Smart Reactive Compensation Module
Related Products
-
SFR-SVG 100 Kvar Reactive Compensation Low Voltage Power Factor Correction Capacitor BankNegotiableMOQ: 1 -
SFR-L Power Factor Correction Capacitor Module Reactive Power Compensation Bank Power Quality Capacitor Aluminum 2 Years 80kvarNegotiableMOQ: 1
-
Aluminum Capacitor 100 Kvar Capacitor Bank Price Single Phase Capacitor BankNegotiableMOQ: 1
-
Aluminum Capacitor 3 Phase Capacitor Bank for Power Factor Improvement HargaNegotiableMOQ: 1
-
SVG Reactive Power Compensation Module Low-voltage Static Var Generator Super CapacitorNegotiableMOQ: 1

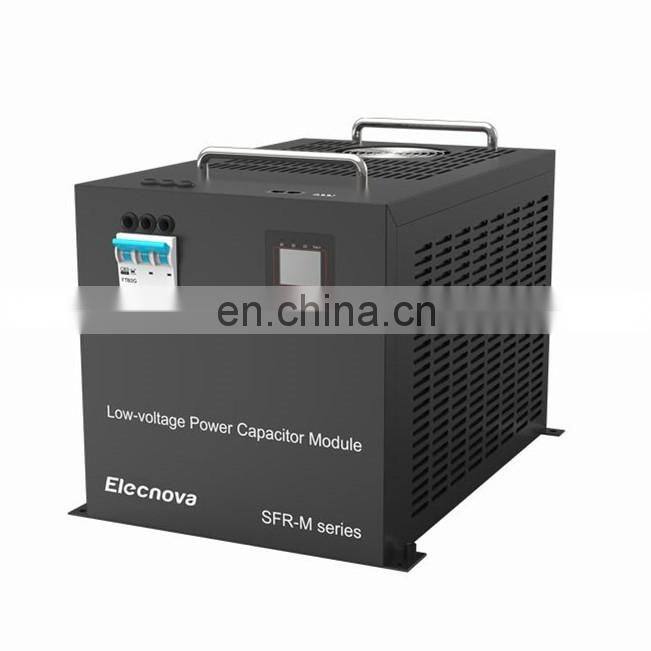

SFR-M industrial power capacitor smart reactive compensation module is designed for the problem of harmonic and power factor in the sitation of serious harmonic pollution in 0.4kV low voltage distribution network. It is used as an integrated reactive power compensation module with functions of power factor enhancement, effective harmonic suppression, reduction of line loss and improvement of power quality.
The components of dynamic harmonic suppression reactive compensation module include DSP digital processing circuit, highly integrated detection, control, protection, display unit, zero crossing switching module, discharge and air cooling unit, filter reactor, low-voltage filter power capacitor and function module operation status indicator circuit. This module is a new generation of dynamic reactive compensation equipment for 0.4kV low voltage ditribution network which is suitable for frequent load change and high voltage qualification rate requirement situation.It is a typical dynamic traking compensation integration module with switching time ≤20ms.
Features
*Improve efficiencies on power system
*power factor correction
*harmonic voltage
*system capacity release and reduced system losses
Dimension: 280mm*290mm*370mm (SFR-MXD-50-P7)

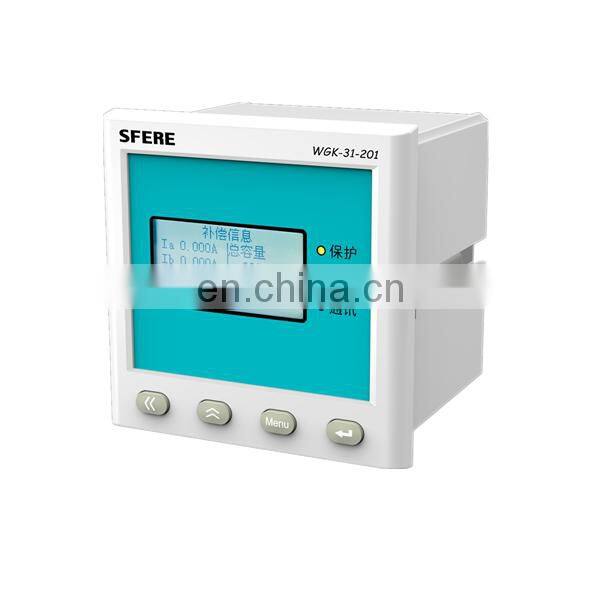

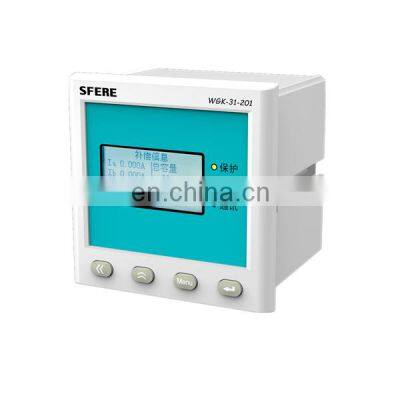

Matching controller

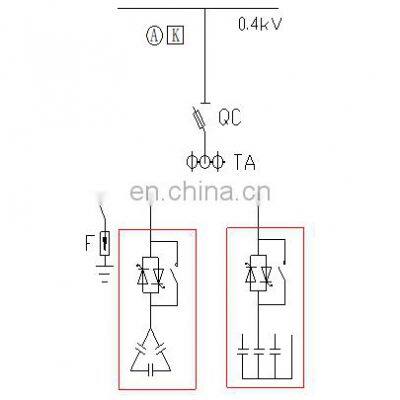

Compensation mode:
G indicateds three-phase total compensation
F indicates combined compensation
Current |
≤0.5 %(within the range 20%~120% of rated current) |
||
Voltage |
≤0.5 %(within the range 50%~120% of rated voltage) |
||
Power |
≤1% |
||
Power factor |
±0.01 |
||
Switching mode |
Zero-crossing switch |
||
Compensation operation
|
Working voltage |
AC 380V±20%, distortion rate≤5% |
|
Consumption |
≤5VA |
||
Max. working current |
1.35*In |
||
Switching inrush current |
≤*In |
||
Local protection
|
Over current |
0~100A (can be set) |
|
Over temperature |
20℃~80℃(can be set) |
||
Unbalance |
0%~200%(can be set, only for total compensation) |
||
Working temperature |
-25℃~50℃ |
||
Storage temperature |
-25℃~55℃ |
||
Altitude |
<2000m |
||

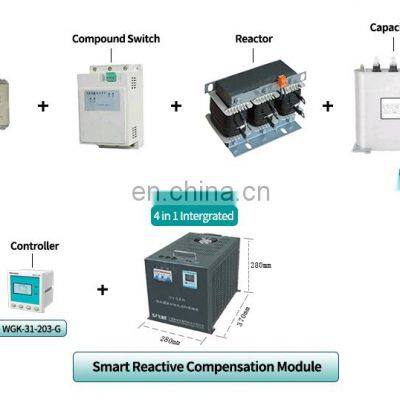

SFR-L is a new generation of compensation module.

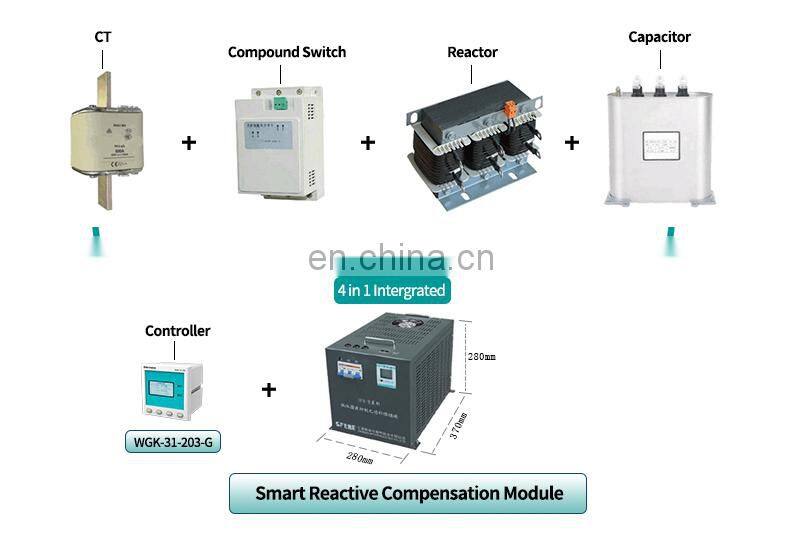

It is the combination of CT, Reactor, composite switching and capacitor.
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
