SFR-M Reactive Compensation Module Low Voltage Power Factor Correction Equipment
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SFR-M Low Voltage Dynamic Harmonic Suppression Power Factor Correction EquipmentNegotiableMOQ: 1 -
SVG Reactive Power Auto Compensation Controller Kvar Capacitor Bank Capacitor Aluminum 2 Years AC / Motor 7-15days ElecnovaNegotiableMOQ: 1
-
SFR-L Cost-optimized IEEE-519 Low Voltage Power Factor Correction Capacitor Bank Capacitor Aluminum AC / Motor Power QualityNegotiableMOQ: 1
-
SFR-M Industrial Power Capacitor Smart Reactive Compensation ModuleNegotiableMOQ: 1
-
SFR-SVG 100 Kvar Reactive Compensation Low Voltage Power Factor Correction Capacitor BankNegotiableMOQ: 1
Product Description
Product name：Reactive compensation module low voltage power factor correction equipment
SFR-M series LV power capacitor module is designed for 0.4kV low voltage distribution network. It is used as a new generation of compensation module with functions of energy saving, reduction of line loss, power factor enhancement and improvement of power quality.
Features
*Improve efficiencies on power system
*power factor correction
*harmonic voltage
*system capacity release and reduced system lossesDimension: 392mm*110mm*363mm (SFR-MXD-4020/450)
Matching controller
Compensation mode:
G indicateds three-phase total compensation
F indicates combined compensation
Product Paramenters
Function |
Specification |
|
Measurement accuracy |
Current |
≤1.0%(5%~120%In) |
Voltage |
≤0.5%(80%~120%Un) |
|
Power |
≤2% |
|
Power factor |
≤0.01 |
|
Switching mode |
Zero cross switching |
|
Compensation operation |
Working voltage |
AC380V±20%, distortion rate ≤5% |
Comsumption |
≤5VA |
|
Max working current |
1.35 X In |
|
Switching inrush current |
≤3 X In |
|
Host protection |
Over voltage |
430V(can be set) |
Under voltage |
300V(can be set) |
|
Harmonic exceeding |
0%~100% |
|
Local protection |
Over current |
0A~100A |
Over temperature |
55 ℃ |
|
Unbalance |
50% |
|
Control setting |
Control parameter |
Target power factor, switching threshold, delay time etc. |
Peripheral unit parameters |
Current transformer ratio |
|
Network interface |
Pluggable data line, internal network protocol |
|
Mechanical installation |
Outline dimension |
W-71.5mm L-370mm, height is a according to different capacity |
Installation dimension |
Distance of installation fixing holes:W-85mm*L-315MM |
|
Weight |
≤6.5kg |
|
Environment temperature |
Working temperature |
-15℃~45℃ |
Storage temperature |
-25℃~55℃ |
|
Altitude |
≤2000m |
|
Standard |
GB/T15575-2008 |
|

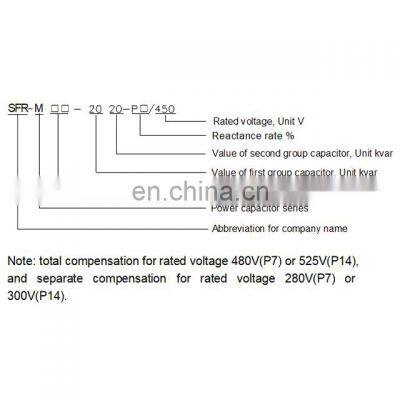

Model Selection
compensation mode |
capacity(KVar) |
Model |
Application field |
Three-phase total compensation |
50 |
SFR-MXD-50-P7/480 |
It is used for many occasion with nonlinear load ,large harmonic ,such as frequency converter ,intermediate frequency furnace,UPS power supply ,rolling mill and lighting and switching power supply. |
25+25 |
SFR-MXD-2525-P7/480 |
||
40 |
SFR-MXD-40-P7/480 |
||
20+20 |
SFR-MXD-2020-P7/480 |
||
30 |
SFR-MXD-30-P7/480 |
||
20+10 |
SFR-MXD-2010-P7/480 |
It is used for many occasion with nonlinear load ,large harmonic ,such as frequency converter ,intermediate frequency furnace,UPS power supply ,rolling mill and lighting and switching power supply. |
|
20 |
SFR-MXD-20-P7/480 |
||
10+10 |
SFR-MXD-1010-P7/480 |
||
15 |
SFR-MXD-15-P7/480 |
||
10+5 |
SFR-MXD-1005-P7/480 |
||
10 |
SFR-MXD-10-P7/480 |
||
Phase separation compensation |
30 |
SFR-MXD-30-P7/280 |
|
20 |
SFR-MXD-20-P7/280 |
||
10 |
SFR-MXD-10-P7/280 |

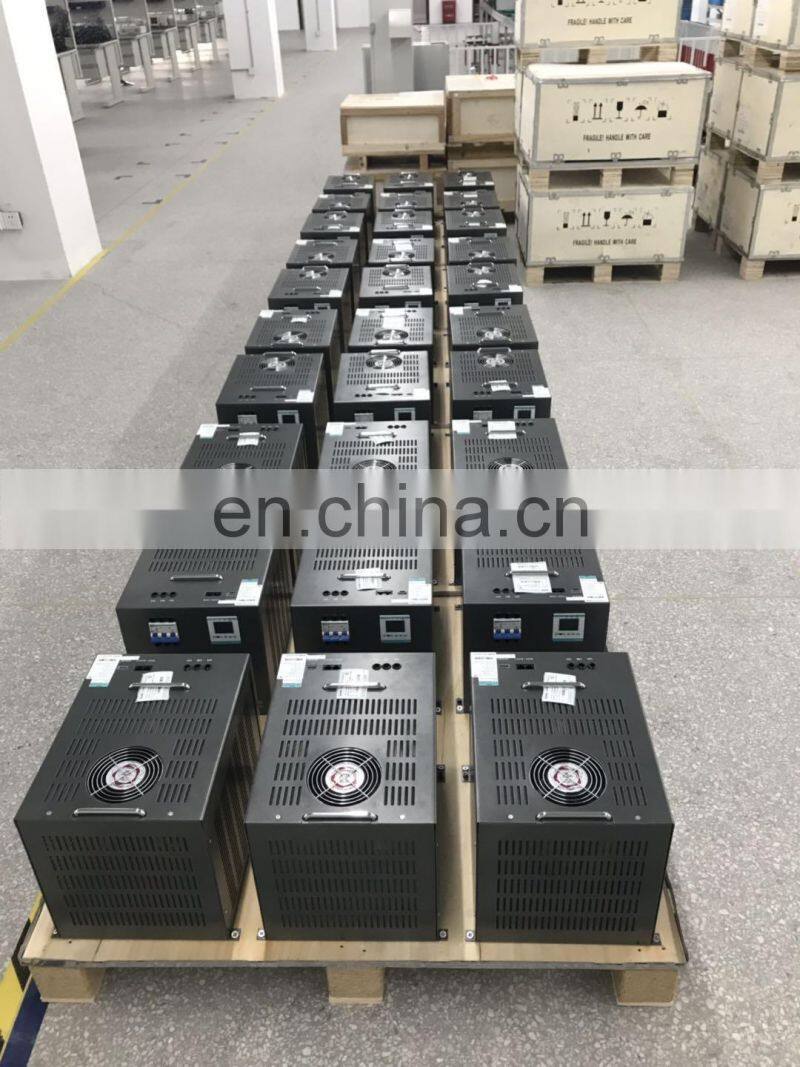

Packing & Delivery
