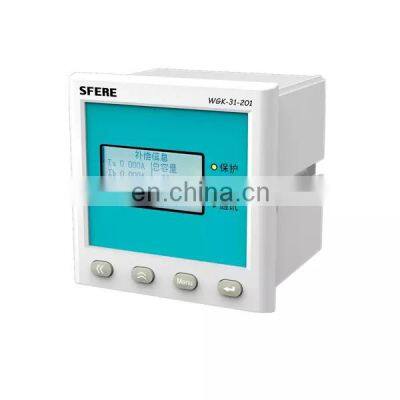

SVG Reactive Power Auto Compensation Controller Kvar Capacitor Bank Capacitor Aluminum 2 Years AC / Motor 7-15days Elecnova
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SFR-L Cost-optimized IEEE-519 Low Voltage Power Factor Correction Capacitor Bank Capacitor Aluminum AC / Motor Power QualityNegotiableMOQ: 1 -
SFR-M Industrial Power Capacitor Smart Reactive Compensation ModuleNegotiableMOQ: 1
-
SFR-SVG 100 Kvar Reactive Compensation Low Voltage Power Factor Correction Capacitor BankNegotiableMOQ: 1
-
SFR-L Power Factor Correction Capacitor Module Reactive Power Compensation Bank Power Quality Capacitor Aluminum 2 Years 80kvarNegotiableMOQ: 1
-
Aluminum Capacitor 100 Kvar Capacitor Bank Price Single Phase Capacitor BankNegotiableMOQ: 1

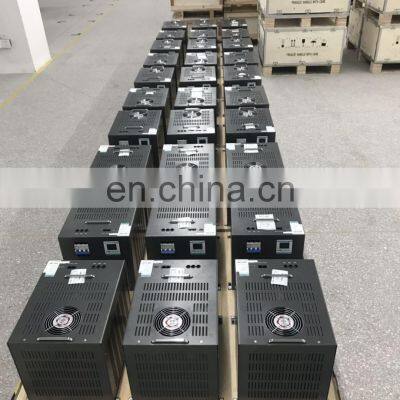

Product Description
Product name：SVG reactive power auto compensation controller kvar capacitor bank
The principle of the SVG is very similar to that of Active Power Filter, as demonstrated in the picture below. When the load is generating inductive or capacitive current, it makes load current lagging or leading the voltage. SVG detects the phase angle difference and generates leading or lagging current into the grid, making the phase angle of current almost the same as that of voltage on the transformer side, which means fundamental power factor is unit. SFR-SVG is also capable of correcting load imbalance.
SVG Running Mode
Product Paramenters
Function |
Technical parameters
|
Wall mounted SFR-SVG-(30~50)/B
|
Rack mounted SFR-SVG-(30~200)/M
|
Cabinet type SFR-SVG-(100~500)/G
|
characteristics
|
Rated voltage(V) |
AC380V±15%, AC690V±15% |
||
Working frequency(Hz) |
50Hz±5% |
|||
Rated compensation capacity(KVA) |
30 50
|
30 50 75 100
150 200
|
100~500 |
|
Scope of reactive adjustment |
Continuously adjustable from rated induced to rated capacitive |
|||
Response time |
5ms |
|||
Loss of active power |
<3% rated module power |
|||
Over-load capability |
120% |
|||
Multi-set running mode |
Parallel running |
|||
Mean time between failures |
≥100,000hours |
|||
Switching frequency |
Average 10kHz |
|||
Control algorithm |
compensation algorithm of screening vector of frequency domain possessing self-adaptation capability |
|||
Controller |
Digital signal processor(DSP) |
|||
Communication capability
|
Adopting Modbus remote communication protocol,communication interface RS485/232 and CAN bus |
|||
Control connection |
Optical fiber or electrical connection |
|||
Structural characteristics
|
W x H x D(mm) |
510 x 218 x 694 |
340 x 629 x 709 |
Refer to capacity of cabinet |
Protection grade |
IP21 orcustomized according to the user' s demand |
|||
Color |
RAL7035(light gray), |
|||
Cooling mode |
Forced air cooling |
|||
Overall structure |
Floor type |
|||
Installation mode |
Indoor installation; optional fixing modes and optional cable incoming modes |
|||
Environmental conditions
|
Environmental temperature |
-10~40℃ |
||
Storage temperature |
-40~65℃ |
|||
Relative humidity |
5%-95%, no condensation |
|||
Altitude |
≤1000m,1000-4000;according to national standard GB/T3859.2, for every increased 100m, the power is reduced by 1% |
|||
Electromagnetic compatibility
|
Conforming to GB/T7250-2005 |
|||
Model Selection
Transformer Capacity(kVA) |
Three-phase Four-wire |
Three-phase Three-wire |
200 |
SFR-SVG4-100/0.4 X 1 |
SFR-SVG3-100/0.4 X 1 |
250/315 |
SFR-SVG4-100/0.4 X 1 |
SFR-SVG3-100/0.4 X 1 |
400 |
SFR-SVG4-150/0.4 X 1 |
SFR-SVG3-200/0.4 X 1 |
500/630 |
SFR-SVG4-200/0.4 X 1 |
SFR-SVG3-300/0.4 X 1 |
800 |
SFR-SVG4-250/0.4 X 1 |
SFR-SVG3-400/0.4 X 1 |
1000 |
SFR-SVG4-300/0.4 X 1 |
SFR-SVG3-500/0.4 X 1 |
1250 |
SFR-SVG4-400/0.4 X 1 |
SFR-SVG3-300/0.4 X 2 |
1600 |
SFR-SVG4-250/0.4 X 2 |
SFR-SVG3-400/0.4 X 2 |
2000 |
SFR-SVG4-300/0.4 X 2 |
SFR-SVG3-500/0.4 X 2 |
2500 |
SFR-SVG4-400/0.4 |
SFR-SVG3-400/0.4 X 3 |
