Low Voltage Super Capacitor Reactive Power Compensation Bank
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Low Voltage Power Factor Reactive Power Compensation Capacitor Bank
-
SFR-M Reactive Compensation Module Low Voltage Power Factor Correction Equipment
-
SFR-M Low Voltage Dynamic Harmonic Suppression Power Factor Correction Equipment
-
SVG Reactive Power Auto Compensation Controller Kvar Capacitor Bank Capacitor Aluminum 2 Years AC / Motor 7-15days Elecnova
-
SFR-L Cost-optimized IEEE-519 Low Voltage Power Factor Correction Capacitor Bank Capacitor Aluminum AC / Motor Power Quality
-
SFR-M Industrial Power Capacitor Smart Reactive Compensation Module
Product Description
Product Description

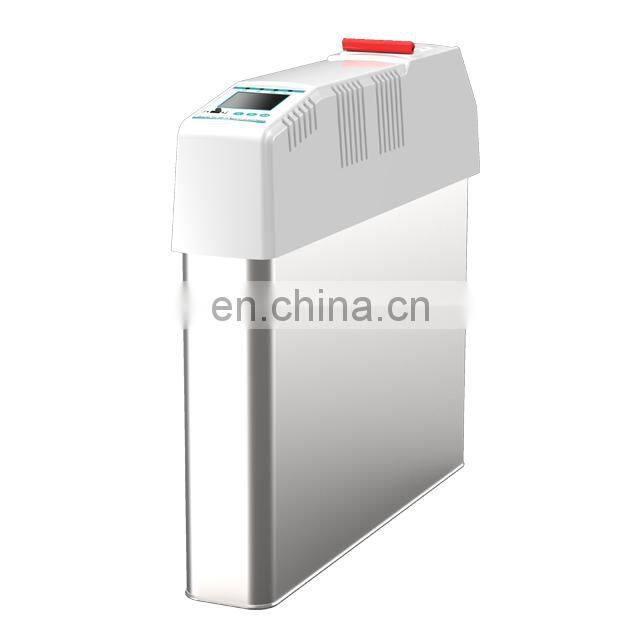

Product name：Low voltage super capacitor reactive power compensation bank
SFR-L series LV power capacitor module is designed for 0.4kV low voltage distribution network. It is used as a new generation of compensation module with functions of energy saving, reduction of line loss, power factor enhancement and improvement of power quality. Features
*Improve efficiencies on power system
*power factor correction
*harmonic voltage
*system capacity release and reduced system losses
Dimension: 392mm*110mm*363mm (SFR-LXD-4020/450)

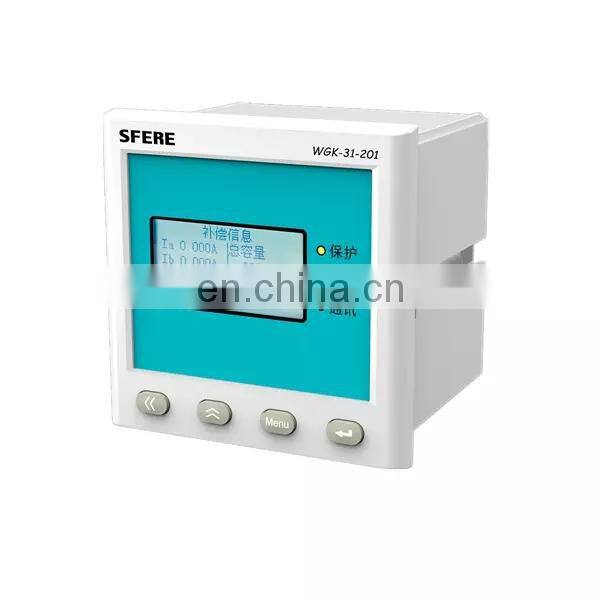

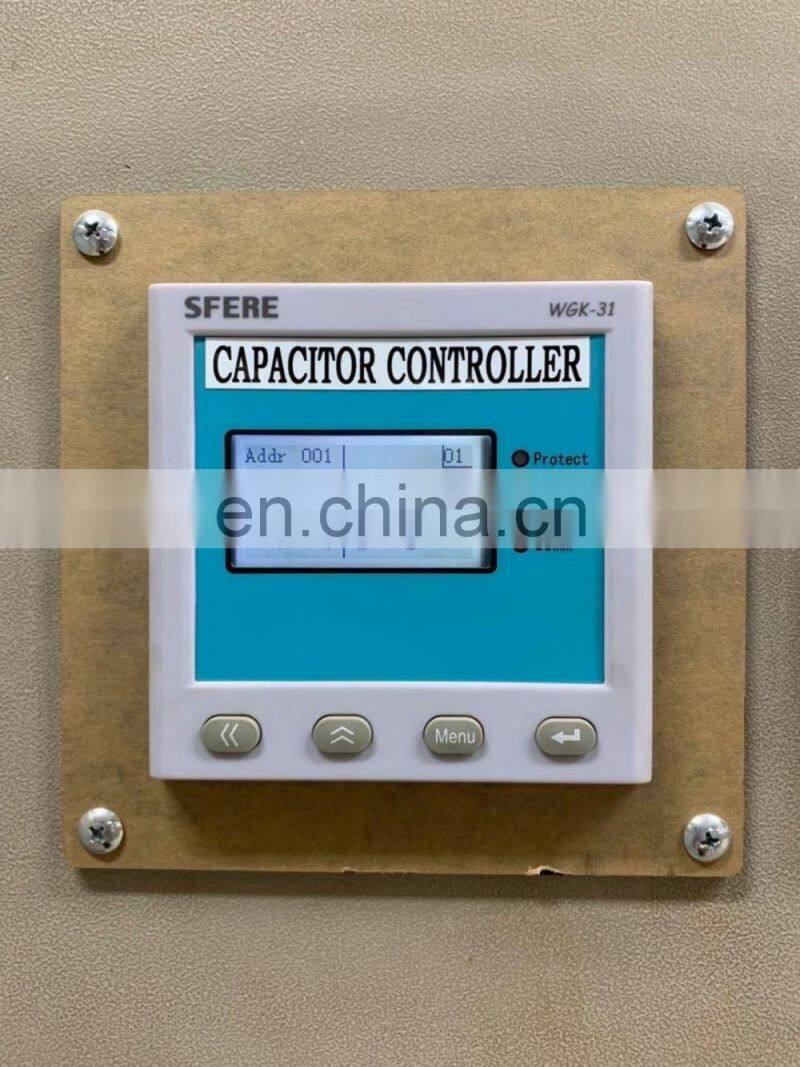

Matching controller
Compensation mode:

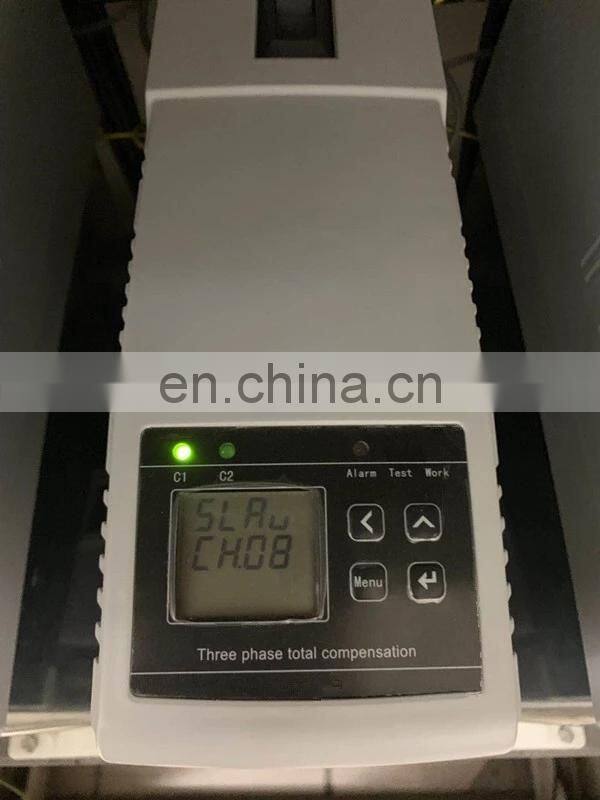

G indicateds three-phase total compensation
F indicates combined compensation
Product Paramenters
Function | Specification | |
Measurement accuracy | Current | ≤1.0%(5%~120%In) |
Voltage | ≤0.5%(80%~120%Un) | |
Power | ≤2% | |
Power factor | ≤0.01 | |
Switching mode | Zero cross switching | |
Compensation operation | Working voltage | AC380V±20%, distortion rate ≤5% |
Comsumption | ≤5VA | |
Max working current | 1.35 X In | |
Switching inrush current | ≤3 X In | |
Host protection | Over voltage | 430V(can be set) |
Under voltage | 300V(can be set) | |
Harmonic exceeding | 0%~100% | |
Local protection | Over current | 0A~100A |
Over temperature | 55 ℃ | |
Unbalance | 50% | |
Control setting | Control parameter | Target power factor, switching threshold, delay time etc. |
Peripheral unit parameters | Current transformer ratio | |
Network interface | Pluggable data line, internal network protocol | |
Mechanical installation | Outline dimension | W-71.5mm L-370mm, height is a according to different capacity |
Installation dimension | Distance of installation fixing holes:W-85mm*L-315MM | |
Weight | ≤6.5kg | |
Environment temperature | Working temperature | -15℃~45℃ |
Storage temperature | -25℃~55℃ | |
Altitude | ≤2000m | |
Standard | GB/T15575-2008 | |
Model Selection
Compensation mode | Capacity(kvar) | Model | Application field |
40+40 | SFR-LXD-4040/450 | It is used in the fields where the power quality meets the national standard, the requirement for power quality is not very high and no harmonic sensitive equipment. Phase separation compensation is used in the occation that three phase load imbalance greater than 30%. | |
40+20 | SFR-LXD-4020/450 | ||
30+30 | SFR-LXD-3030/450 | ||
20+20 | SFR-LXD-2020/450 | ||
20+10 | SFR-LXD-2010/450 | ||
10+10 | SFR-LXD-1010/450 | ||
10+5 | SFR-LXD-1005/450 | ||
30 | SFR-LXD-30/250 | ||
20 | SFR-LXD-20/250 | ||
10 | SFR-LXD-10/250 | ||
5 | SFR-LXD-05/250 | ||
40+20 | SFR-LXD-40G20F | ||
40+15 | SFR-LXD-40G15F | ||
40+10 | SFR-LXD-40G10F | ||
30+20 | SFR-LXD-30G20F | ||
30+10 | SFR-LXD-30G10F | ||
20+20 | SFR-LXD-20G20F |
