PD194Z-9HY 96*96mm 3 Phase ac Digital Lcd Panel Mounted Power Quality and Energy Analyzer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Elecnova PD194Z-9HY Three Phase Smart Panel Mount LCD Display AC Multifunction Power Meter Harmonic Meter
-
Elecnova PD194E-9HY 96*96mm Harmonic 3 Phase ac Electric Lcd Multifunction Power Meter
-
Elecnova Sfere720A Lcd Electric 3phase Multifunction Power Meter Digital
-
Sfere720B 96*96mm LCD Three Phase Digital Power Quality Analyzer Data Logger
-
Sfere720B 96*96mm Digital Bidirectional 3 Phase ac Energy Meter Lcd Display
-
Sfere720B Modbus Interface RS485 Harmonics 51st 4 Tariff Data Record Energy Quality Analyzer Digital Power Meter
Product Description
Product Description

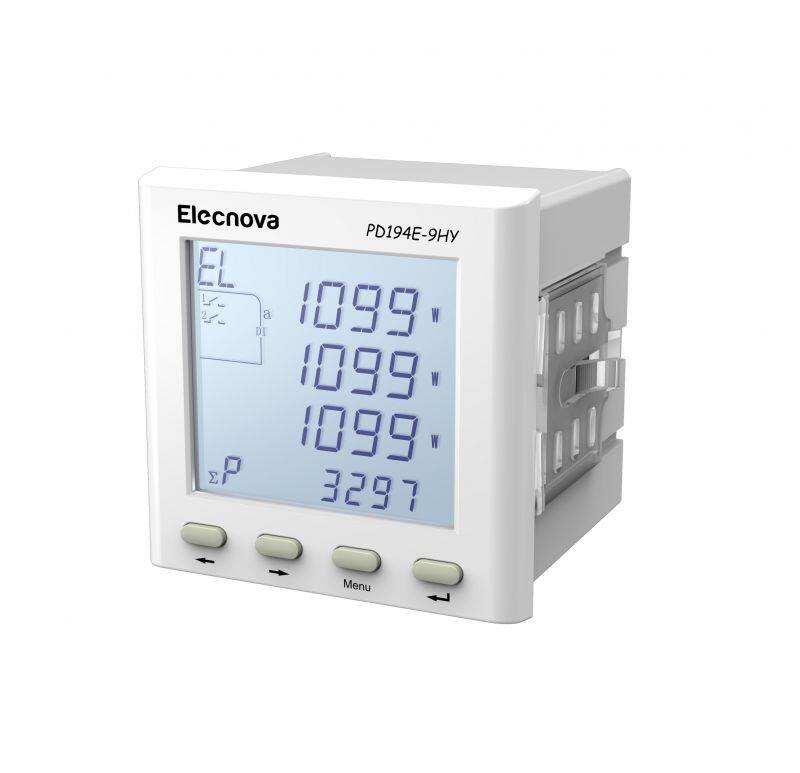

Product name：PD194Z-9HY 96*96mm 3 phase ac digital lcd panel mounted power quality and energy analyzer
PD194E-9HY multi-functional energy meter is specialized for the power substation system industrial power measuring public facilities and the smart building power monitoring control and sub-metering power billing. It provides full electric parameter measuring power metering and power quality monitoring. It can measure harmonic 2-15th. The RS485 interface supports modbus-RTU and DL/T 645 to ensure the metering data could be transmit to various power monitoring system and energy management system in high efficiency.
PD194E-9HY multi-functional energy meter is specialized for the power substation system industrial power measuring public facilities and the smart building power monitoring control and sub-metering power billing. It provides full electric parameter measuring power metering and power quality monitoring. It can measure harmonic 2-15th. The RS485 interface supports modbus-RTU and DL/T 645 to ensure the metering data could be transmit to various power monitoring system and energy management system in high efficiency.
Advantages
* 3.5" LCD display
* Real-time measuring
* Bi-directional power
* Tariff(optional)
* Modbus-RTU/Profibus-DP(optional)
Product Paramenters
Feature | Parameters | ||||
Accuracy
|
U, I: 0.2 class, P, Q, PF: 0.5 class, Harmonic: A class, Active energy: 0.5S class, Reactive energy: 2 class, Analog output: 0.5 class | ||||
Display
| LCD | ||||
Power Grid
| 3 phase 4 wire, 3 phase 3 wire, single phase | ||||
Rated Value | AC100V, AC380V | ||||
Overload | Sustainable: 1.2 times, Instantaneous: 2 times/10s | ||||
Consumption | <0.1VA(each phase) | ||||
Impedance | >1MΩ | ||||
Rated Value |
AC1A, AC5A
| ||||
Overload |
Sustainable:1.2 times, Instantaneous:10 times/5s
| ||||
Consumption | <0.1 VA(each phase) | ||||
Impedance | <20mΩ | ||||
Frequency
| (50±5%)(60±5%)Hz, accuracy: ±0.01Hz | ||||
Harmonic |
Voltage, current total harmonic distortion and 2-31 times odd harmonic distortion
| ||||
Energy
|
Dual direction active and reactive metering
| ||||
Power
|
Working range
|
AC, DC: 80V~270V
| |||
Consumption
|
<5VA
| ||||
Function Module
|
Energy pulse output
| 2 loops energy pulse output, photo coupler relay, constant 5000imp/kWh (kvarh) | |||
Communication port
|
1 loop RS-485,MODBUS-RTU, Baud rate: 2400~9600
| ||||
Digital input
|
At most 4 loops digital invariables input, dry node connection
| ||||
Relay output
|
At most 3 cycles relay output, AC250V/5A, DC30V/5A
| ||||
Analog output
|
1 analog output: 0/4~20mA or 0~5/10V
| ||||
Operating environment
|
-20~65℃, humidity ≤93%, no erosion gas, altitude≤2500m
| ||||
Storage environment
|
-25~75℃,humidity≤93%
| ||||
Safety
|
Insulation
| Signal, power, output terminal to shell resistance>100MΩ | |||
Withstand voltage
| Input and power>2kV, Input and output>1kV, power and output>2kV | ||||
