Smart Building Multi-functional Modbus-RTU 15th Harmonic Filtering LED/LCD Display Energy Meter
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Smart Metering PD194Z-9HY PQA Multifunction Power Quality Meter
-
Elecnova PD195Z-E31 DC Industrial Control System Din Rail Installation RS485 Data Monitoring Analyzer Digital Power Meter
-
Elecnova PD195Z-E33 Multi-circiuit Din-rail Mounted 9 Current Measurement DC Watt Hour Meter
-
Sfere720 Modular Design AC Energy Multifunctional Power Meter
-
Sfere720C LCD Modbus/profibus Tariff Multifunctional Power Meter Data Logger
-
PD195E-5SY1 DC Remote Power Monitoring Digital Multi Function Energy Meter
Product Description
Product Description
Product name：smart building multi-functional modbus-RTU 15th harmonic filtering LED/LCD display energy meter

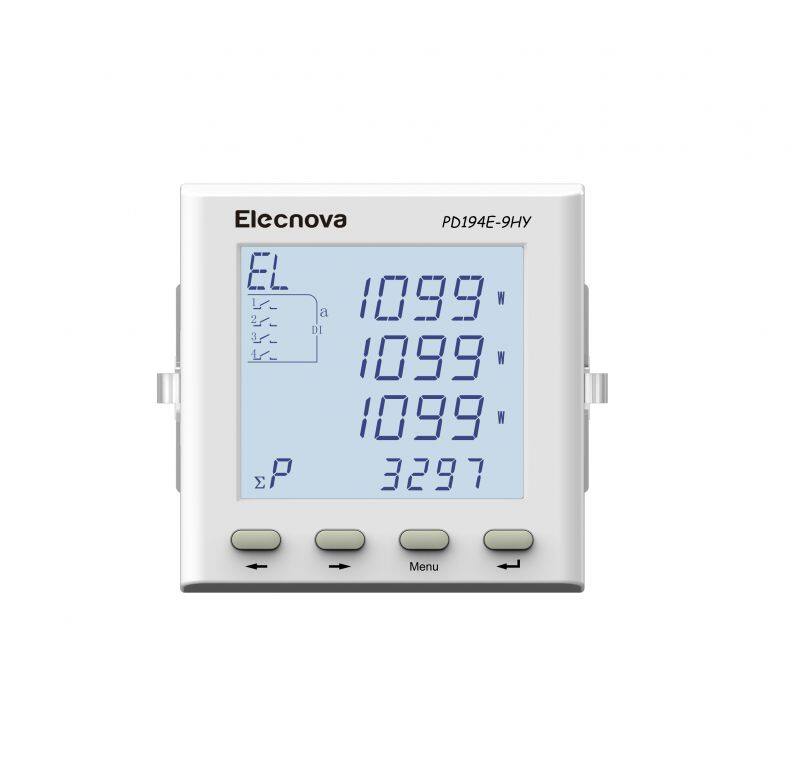

PD194E-9HY multi-functional energy meter is specialized for the power substation system industrial power measuring public facilities and the smart building power monitoring control and sub-metering power billing. It provides full electric parameter measuring power metering and power quality monitoring. It can measure harmonic 2-15th. The RS485 interface supports modbus-RTU and DL/T 645 to ensure the metering data could be transmit to various power monitoring system and energy management system in high efficiency.
Advantages
* Full electric parameter measuring:
V/A/Q/P/W
* 3.5" LCD display
* Real-time measuring
* Bi-directional power
* Tariff(optional)
* Modbus-RTU/Profibus-DP(optional)
Product Paramenters
Feature | Parameters | ||||
U, I: 0.2 class, P, Q, PF: 0.5 class, Harmonic: A class, Active energy: 0.5S class, Reactive energy: 2 class, Analog output: 0.5 class | |||||
Display | LCD | ||||
Power Grid | 3 phase 4 wire, 3 phase 3 wire, single phase | ||||
Voltage | Rated Value | AC100V, AC380V | |||
Overload | Sustainable: 1.2 times, Instantaneous: 2 times/10s | ||||
Consumption | <0.1VA(each phase) | ||||
Impedance | >1MΩ | ||||
Current | Rated Value | AC1A, AC5A | |||
Overload | Sustainable:1.2 times, Instantaneous:10 times/5s | ||||
Consumption | <0.1 VA(each phase) | ||||
Impedance | <20mΩ | ||||
Frequency | (50±5%)(60±5%)Hz, accuracy: ±0.01Hz | ||||
Harmonic | Voltage, current total harmonic distortion and 2-31 times odd harmonic distortion | ||||
Energy | Dual direction active and reactive metering | ||||
Power | Working range | AC, DC: 80V~270V | |||
Consumption | <5VA | ||||
Energy pulse output | 2 loops energy pulse output, photo coupler relay, constant 5000imp/kWh (kvarh) | ||||
Communication port | 1 loop RS-485,MODBUS-RTU, Baud rate: 2400~9600 | ||||
Digital input | At most 4 loops digital invariables input, dry node connection | ||||
Relay output | At most 3 cycles relay output, AC250V/5A, DC30V/5A | ||||
Analog output | 1 analog output: 0/4~20mA or 0~5/10V | ||||
Operating environment | -20~65℃, humidity ≤93%, no erosion gas, altitude≤2500m | ||||
Storage environment | -25~75℃,humidity≤93% | ||||
Safety | Insulation | Signal, power, output terminal to shell resistance>100MΩ | |||
Withstand voltage | Input and power>2kV, Input and output>1kV, power and output>2kV | ||||

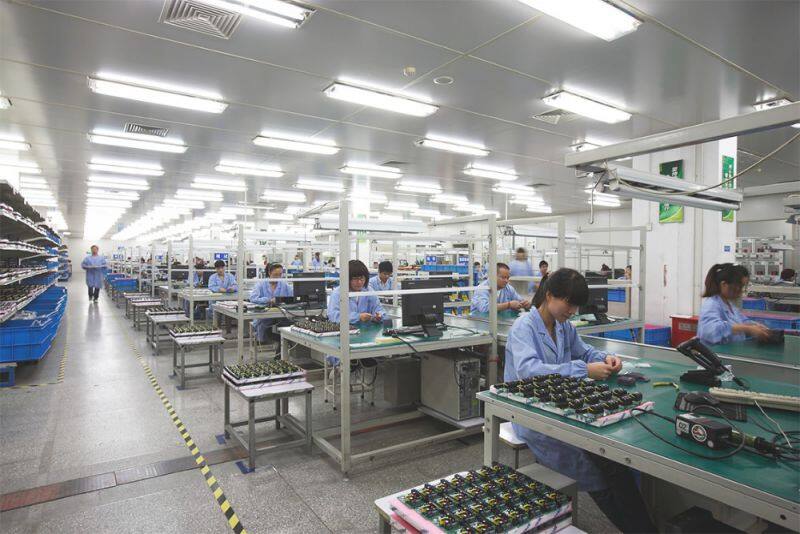

Production Process
SMT
AOI Test
Plug-In Mounting
Wave Soldering
Assembling
Inspection
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
