Sfere720C Multifunction Power Quality Analyzer Remote Energy Monitoring Data Logger
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi-circuit Electricity Monitor System Energy Meter IndustrialNegotiableMOQ: 1 -
PD195E-5KY1 DC Single Phase LCD Panel Digital RS485 Ampere Energy MeterNegotiableMOQ: 1
-
PD194Z-9HY Smart Measuring Multifunction PQA Power Quality Analyzer MeterNegotiableMOQ: 1
-
Sfere720 PQA Power Quality Analyzer Multi-functional Data LoggerNegotiableMOQ: 1
-
Smart Metering PD194Z-9HY PQA Multifunction Power Quality MeterNegotiableMOQ: 1
Product Description

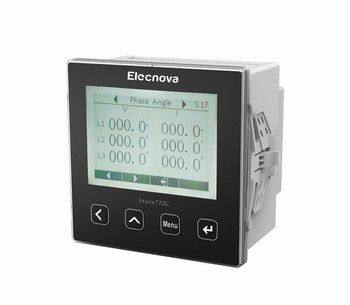

Product Name: Sfere720C multifunction power quality analyzer remote energy monitoring data logger
Sfere720C is equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere720C also can be extended with I/O modules for monitoring and controlling equipment at field, realizing system
integration with different smart electricity distribution system and energy management system, and sharing monitoring data and energy data.
integration with different smart electricity distribution system and energy management system, and sharing monitoring data and energy data.

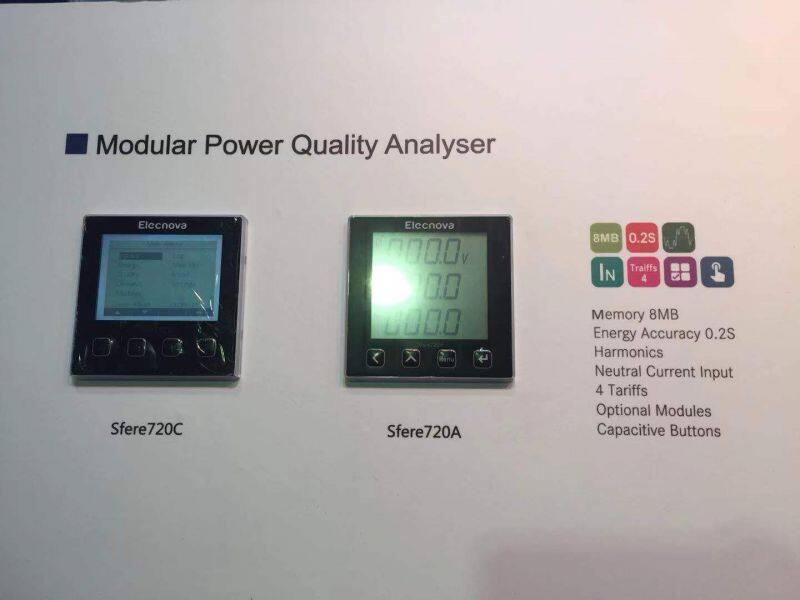

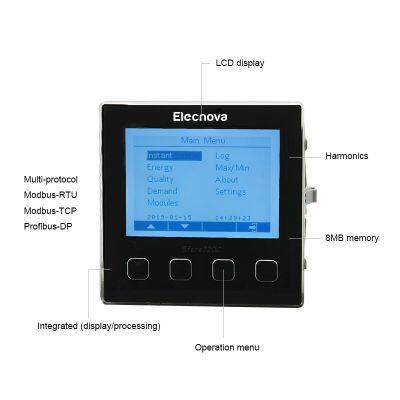

8MB memory, 32,000pcs record
Accuracy: 0.2S
Measurement: full electrical measuring
Harmonics: up to 51st
Display: LCD
Modular design: 12 optional modulars available
Accuracy: 0.2S
Measurement: full electrical measuring
Harmonics: up to 51st
Display: LCD
Modular design: 12 optional modulars available

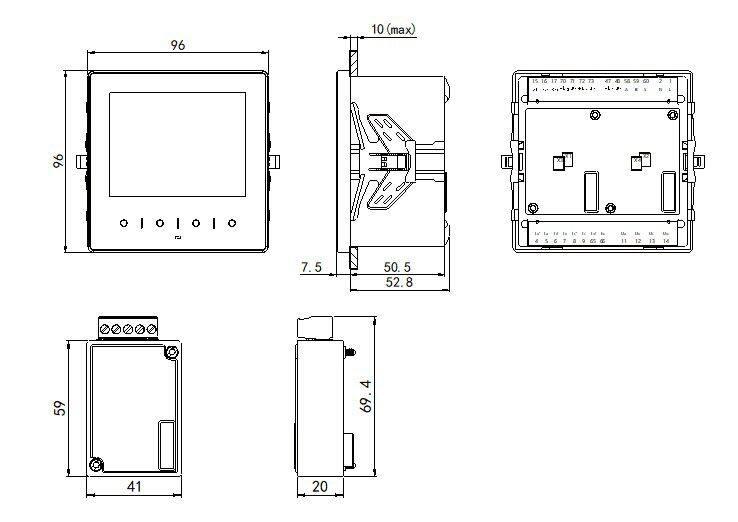

INSTALLATION METHOD
2) Take off the supporting clips of the meter;
3) Insert the meter into the cutout;
4) Insert and push the supporting clips to fix the meter.
Specification
Display Mode | Sfere 720: LCD, Sfere720:TFT | |
Accuracy | V/A | 0.2% |
P/Q/S/PF | 0.2% | |
F | ±0.01Hz | |
±kWh | Class 0.2S | |
±kvar | Class 2 | |
Voltage Input | Rated value | AC 100V/ 380V |
Overload | Continuous: 1.2Vn Instantaneous: 2Vn/1010s | |
Burden | ≤0.1VA(per phase) | |
Impedance | ≥1.7MΩ | |
Frequency | 45Hz~65Hz | |
Current Input | Rated value | AC 1A/5A |
Overload | Continuous: 1.2In Instantaneous: 2In/5s | |
Burden | ≤0.2VA(per phase) | |
Impedance | ≤20mΩ | |
Auxiliary Supply | Working range | AC 80~270V 50/60Hz, DC 100~350V |
Consumption | ≤5VA | |
Communication Port | RS485, Modbus-RTU, 2-wire, up to 38.4kbps | |
Energy Pulse Output | 1 photocoupler output, pulse width(80±20%)ms | |
Digital Input | 2 AC wet contact inputs, Isolation: 5kVAC | |
Relay Output | 2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC | |
Environment | Operating temperature | -25℃~70℃ |
Storage temperature | -30℃~80℃ | |
Relative humidity | ≤93% | |
Altitude | ≤2500m | |
Insulation | ≥2kVAC | |
IP Degree | Front IP64, Rear IP20 |
