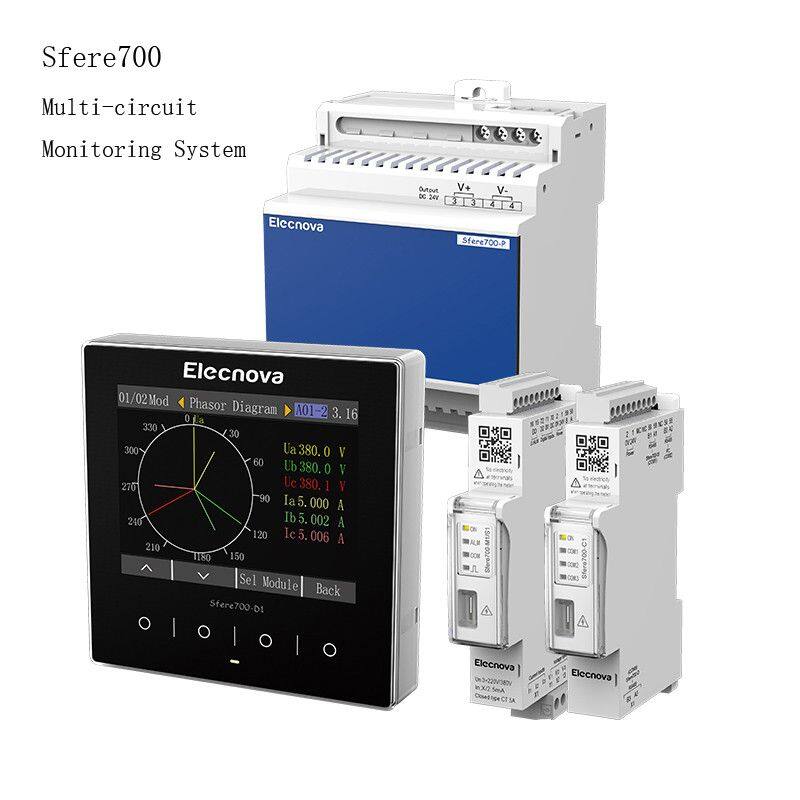

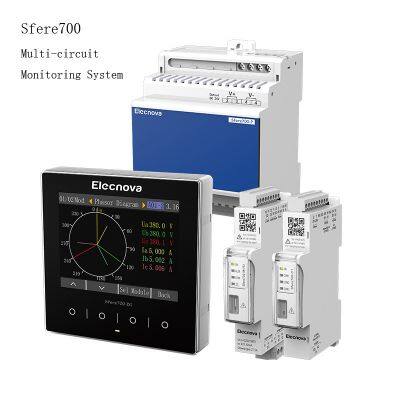

Sfere700-D1 TFT Display Touch Button Compact Design Multi Channel Power Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sfere720 Series Energy Management Modular Design Multifunctional Kwh Data LoggerNegotiableMOQ: 1 -
Sfere720 Power Line Quality and Energy Analyzer Multifunctional ac Meter Data LoggerNegotiableMOQ: 1
-
Sfere700 Series 3 Phase Remote Power Monitoring System Multi Circuit Power MeterNegotiableMOQ: 1
-
Sfere720 Modular Design Data Logger Power Analyzer MeterNegotiableMOQ: 1
-
Sfere720C Multifunction Power Quality Analyzer Remote Energy Monitoring Data LoggerNegotiableMOQ: 1
Product Description

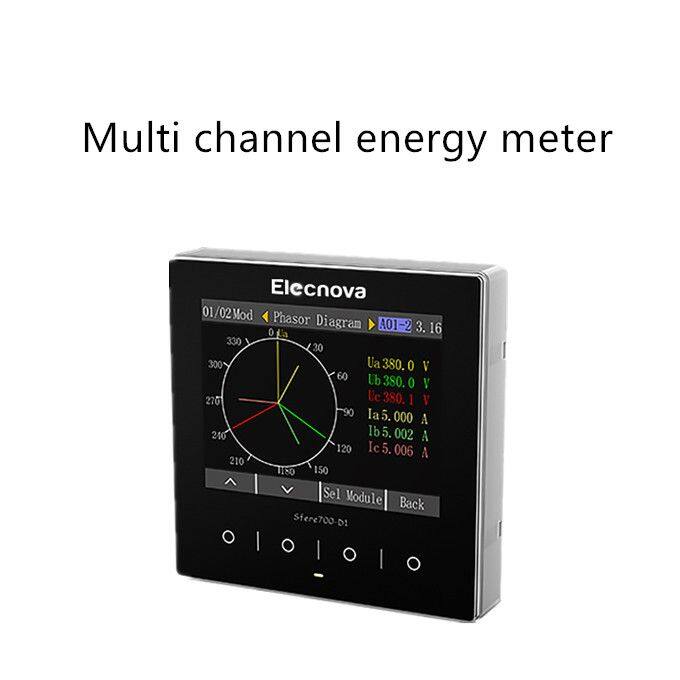

Product Name: Sfere700-D1 TFT display touch button compact design multi channel power meter
Sfere700-D1 is equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere700-D1 also can be extended with I/O modules for monitoring and controlling equipment at field, realizing system
integration with different smart electricity distribution system and energy management system, and sharing monitoring data and energy data.
integration with different smart electricity distribution system and energy management system, and sharing monitoring data and energy data.
Features
Multi-Circuit
Power Quality
Cost Saving

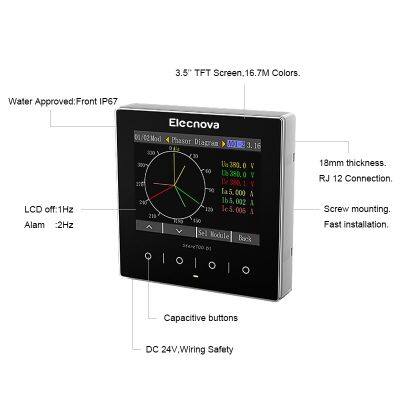

Display: TFT
Accuracy:0.5S, 0.2%
Installation method
1) Choose a right place on the fixed distribution cabinet for cutout by size 91×91mm;
2) Take off the supporting clips of the meter;
3) Insert the meter into the cutout;
4) Insert and push the supporting clips to fix the meter.
Technical Parameter
Display Mode | Sfere700-D1:TFT | |
Accuracy | V/A | 0.2% |
P/Q/S/PF | 0.2% | |
F | ±0.01Hz | |
±kWh | Class 0.2S | |
±kvar | Class 2 | |
Voltage Input | Rated value | AC 100V/ 380V |
Overload | Continuous: 1.2Vn Instantaneous: 2Vn/1010s | |
Burden | ≤0.1VA(per phase) | |
Impedance | ≥1.7MΩ | |
Frequency | 45Hz~65Hz | |
Current Input | Rated value | AC 1A/5A |
Overload | Continuous: 1.2In Instantaneous: 2In/5s | |
Burden | ≤0.2VA(per phase) | |
Impedance | ≤20mΩ | |
Auxiliary Supply | Working range | AC 80~270V 50/60Hz, DC 100~350V |
Consumption | ≤5VA | |
Communication Port | RS485, Modbus-RTU, 2-wire, up to 38.4kbps | |
Energy Pulse Output | 1 photocoupler output, pulse width(80±20%)ms | |
Digital Input | 2 AC wet contact inputs, Isolation: 5kVAC | |
Relay Output | 2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC | |
Environment | Operating temperature | -25℃~70℃ |
Storage temperature | -30℃~80℃ | |
Relative humidity | ≤93% | |
Altitude | ≤2500m | |
Insulation | ≥2kVAC | |
IP Degree | Front IP64, Rear IP20 |
Monitoring Solution
Sfere700-D1 energy meter can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.
Production Process
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
