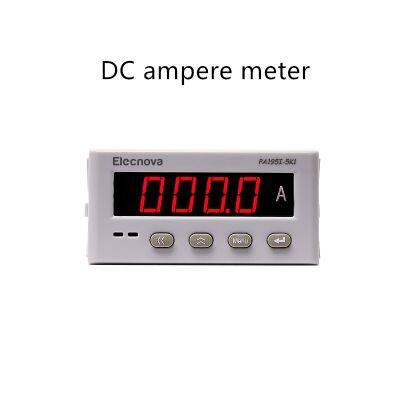

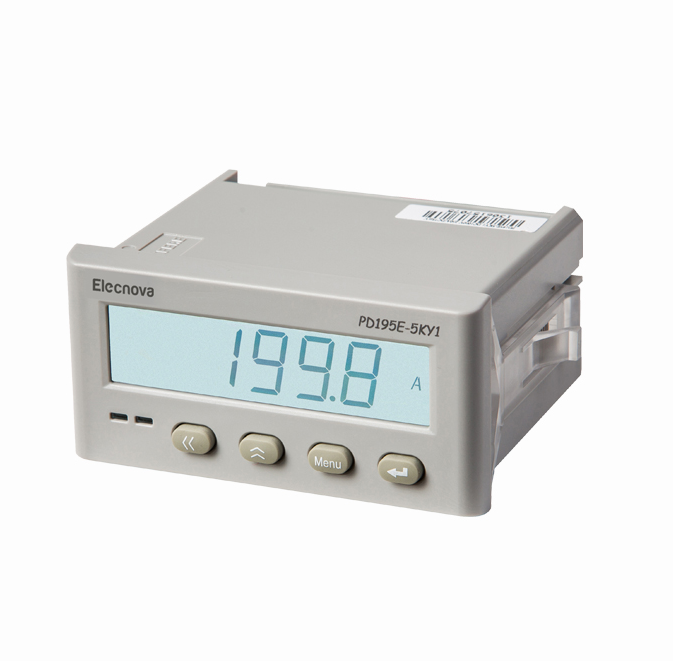

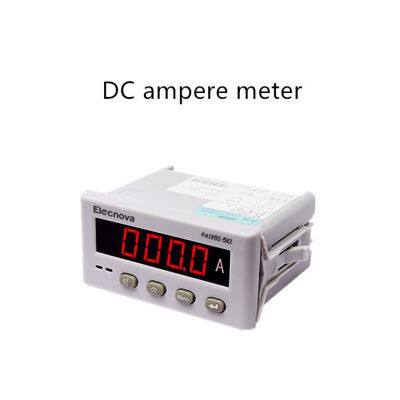

Product Name: PD195E-5KY1 DC single phase LCD panel digital RS485 ampere energy meter
DC digital meters are used to measure DC voltage, DC current, power and energy. They are applied for continuous monitoring and controlling in DC systems.
Aaccuracy |
0.5%(default),0.2% |
||
Date Update Rate |
1s |
||
Current |
Rated value:AC 1A,5A |
||
Voltage |
Rated value:AC 100V,220V,400V etc |
||
Overload |
Continuous:2 times of rated value |
||
Frequency |
45~65Hz |
||
Range |
AC 80~270V 50/60Hz,DC 100~350V |
||
Consumption |
≤5VA |
||
Digital Input |
2 dry contact inputs,Isolation:2kVAC |
||
Relay Output |
2 relay outputs,contact rated at AC 5A/250V or DC 5A/30V,Isolation:2kVAC
|
||
Analog Output |
dc 4~20mA,load ≤350Ω DC 0~5V,load≥20kΩ |
||
Communication Port |
RS485,Modbus-RTU,2-WIRE,up tp 9600bps |
||
Degree of Protection |
Front:IP64,Rear :IP20 |
||
Operating Temperature |
-40℃~70℃(LED),-25℃~70℃(LCD) |
||
Storage Temperature |
-45℃~85℃(LED),-30℃~80℃(LCD) |
||
Relative Humidity |
≤93%RH |
||
Insulation |
≥2kVAC |
||
Altitude |
≤2500m |
||
PD195E-5KY1 dc ampere energy meter can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.
SMT
AOI Test
Plug-In Mounting
Wave Soldering
Assembling
Inspection
1. Bubble film packaging
2. Suitable boxes packaging
3. Carton packaging
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin City, Jiangsu province.
Q: How long is your delivery time?
A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.
Q: Do you provide samples ? is it free or extra ?
A: Free sample is available, freight collect.
Q: What is your terms of payment ?
A: Payment<=3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
