Elecnova PD195Z-E33 Multi-circiuit Din-rail Mounted 9 Current Measurement DC Watt Hour Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sfere720 Modular Design AC Energy Multifunctional Power MeterNegotiableMOQ: 1 -
Sfere720C LCD Modbus/profibus Tariff Multifunctional Power Meter Data LoggerNegotiableMOQ: 1
-
PD195E-5SY1 DC Remote Power Monitoring Digital Multi Function Energy MeterNegotiableMOQ: 1
-
Sfere700-D1 TFT Display Touch Button Compact Design Multi Channel Power MeterNegotiableMOQ: 1
-
Sfere720 Series Energy Management Modular Design Multifunctional Kwh Data LoggerNegotiableMOQ: 1
Product Description
Product Name |
Elecnova PD195Z-E33 multi-circiuit din-rail mounted 9 current measurement DC watt hour meter |
Installation |
Din rail mounted |
Measurement |
voltage, current and power, energy, demand and Max./Min. values of 9 DC circuit |
Accuracy |
Voltage, current: :0.5 Active power: 0.5
Max./Min. value: 0.5
Demand:0.5
Active energy: 1
|
Voltage Input Signal Value |
DC:0~100V, 0~300V, 0~1000V (max. over voltage 1200V) |
Communication RS485 Interface |
Modbus-RTU protocol, baud rate up to 9600bps |
Working Power Supply Rated Range |
AC/DC:80~270V or DC 24V |
Storage Temperature |
-40°C ~ 85°C |
Optional module |
EM2D module: measure electrical variables of twelve DC circuits one RS485 communication interface
EK1 module: four digital inputs and two relay outputs
|

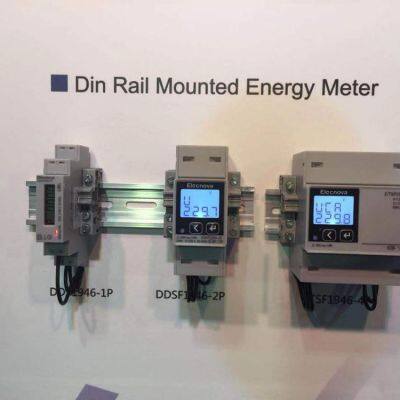

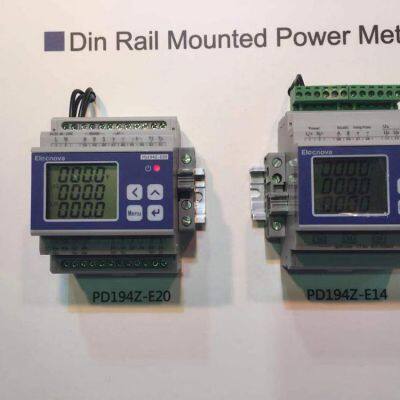

Products Show
Advantages:
* LCD display
* Standand module structure design
* Din rail installation
*Multi-circuit measurement
Application:
* Solar PV power electric generation
* Wide power generation
* Industrial DC control system
Certifications
Size
Related Products
Packing & Shipment
Air bag protection
Inner box for each
Master carton box
Delivery and Shipment
Delivery time: 5-7days after sales confirmation
Transportation: By Air or by Sea
Port of laoding: Shanghai port, or Any port of China
Product guaranty: 2 years
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? is it free or extra ?
A: We provide free samples but freight collect.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
