Product Description

Elecnova BCM series precision power distribution monitoring system is use for the supervising of power parametres for  the DC array cabinet. It measures the voltage, currency, power harmoics and all the ON/OFF status of the circurt breakers both for the incoming line and feeder. There is a 7" colorful TFT screen for display the real time data which could be installed on the cabinet, it also provide the Ethernet interface for connecting with the other systems.

Product Name
BCM series data monitoring center array cabinet incoming/feeder/switching value/display module power monitor module
Protocol
Modbus-RTU
Power
DC 24V
Accuracy
0.1% CT
Metering chip set
TI(Texas Instruments)
Installation type
35mm
Display
7" TFT screen/PC screen
Warranty
2 years

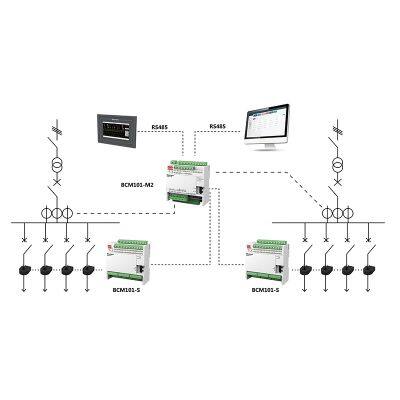

Tipical wiring

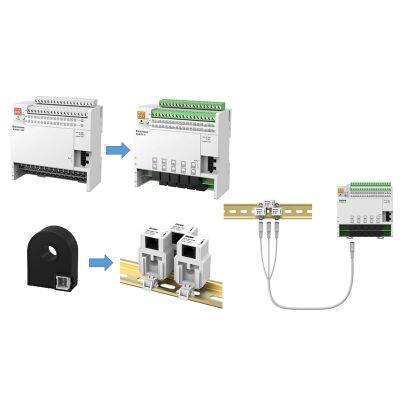

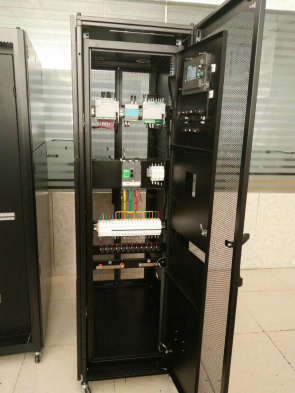

Products Show
Module No:
BCM101-M2, Incoming line Module
Accuracy
U/I 0.2, P/Q/PF: 0.5

Signal input
Voltage:3 phase 3*220/380V,                              1 phase AC 220V
Currency: AC5A/AC1A
Frequency
45~65Hz, Accuracy: ±0.01Hz
Switching  Value
Type: 4 Circurt, Dry contact
Withstand voltage: 2kV AC

Relay  output
Capacity: 2 Circurt, AC250V/5A DC                          30V/3A
Withstand voltage: 2kV AC
Communication
2 circurt RS485, Modbus-RTU,           1 circurt RJ45, Modbus-TCP(option)
Power
DC:24V
Installation
126*133*50mm,Din rail 35mm
Module
BCM-101-S, Feeder monitoring
Accuracy
U/I 0.2, P/Q/PF: 0.5
Signal input
Voltage: 1 phase AC 220V
                Overload: 1.2Un continuing
                                   2Un/1 min instant
Currency: 100A(External CT)
                  Overlaod: 1.2ln continuing
                                     10ln/5s
Frequency
45~65Hz, Accuracy: ±0.1Hz
Switching Value
30 circurt, voltage value determines the breaker Close/Open , Voltage>120 Close, Voltagge <110V Open
Wire contact
2
Installation
126*125*50mm,Din rail 35mm
Module
BCM101K, Switching Value(Option)
Circurt
60 Circurt, Wet contact
Input Voltage
DC24V±2V
Inslation
2kV
Wire contact
2
Installation
126*133*50mm, Din rail 35mm
Module
Current Transformer Module
Rated Value
SHI-BCT50 II: 5(50)A, SHI-BCT100II: 5(100)A
Accuracy
0.1
Overload
1.2ln continuing
10ln/5S, instant
Consumption
≤0.2VA(per phase)
Inslation withstand voltage
4000V/min
Installation
5(50A): 26*33.5*11.5mm,φ8.9
5(100A): 45*52.5*17.5mm,φ19
Display
BCM101-HMI
Monitor
7" TFT LCD screen, 800*480 definition
Interface
RS485: Modbus-RTU protocol
USD: USB 2.0
Power
Working range: DC: (24±20%)V
Consumption: ≤5W
Installation
215*215mm, Panel mount
Module No
BCM101-P, Power module
Input  voltage range
AV180V~260V,DC220V~370
Output Value
DC 24V
Output Power
≤20W(25°C)
Efficiency
>75%
Inslation Intensity
AC 2kV/min
Installation
36*90*63.5mm, Din rail 35mm
