Sfere720 Optional Module Design Multi-function Power Meter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2010
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Panel Mounted Analog Output 0.5S Multifunction Power MeterNegotiableMOQ: 1 -
PQA Power Quality Analyzer Accuracy 0.2S Electric Data Acquisition MeterNegotiableMOQ: 1
-
3 Phase Multi-functional RS485 Analog Output Digital Power MeterNegotiableMOQ: 1
-
PD194Z-9HY 96*96 Multifunctional Power Meter Basic MeterNegotiableMOQ: 1
-
Power Quality Analyzer RTM 3P4W Ethernet Multi Functional Energy Measurement MeterNegotiableMOQ: 1
Product Description

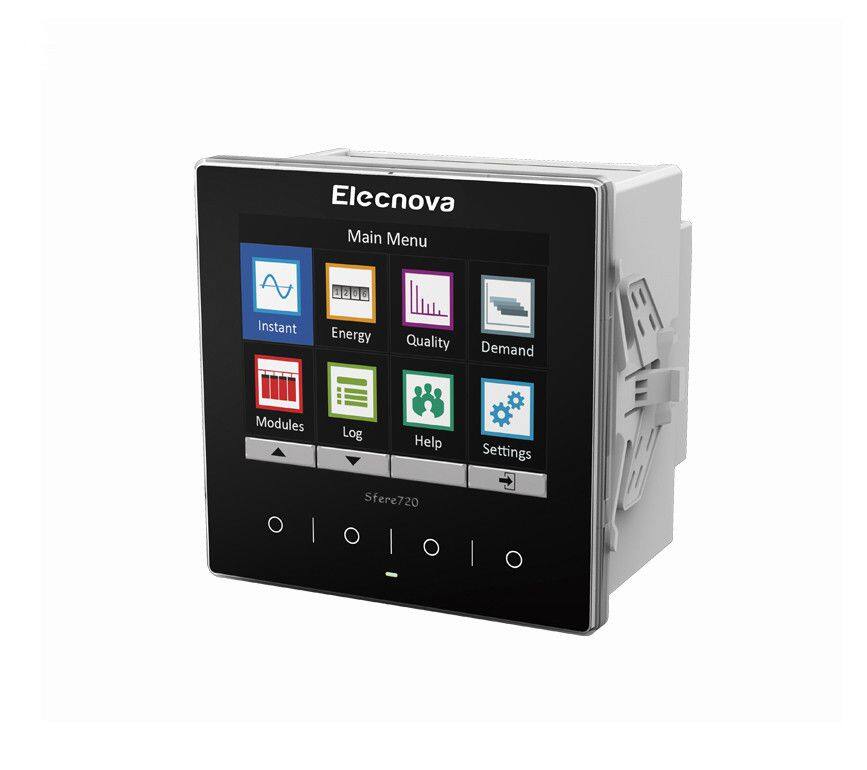

Product Name: Sfere720 optional module design multi-function power meter

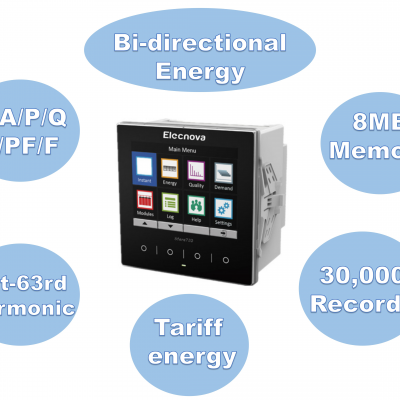

Sfere720 is equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere720 also can be extended with I/O modules for monitoring and controlling equipment at field, realizing system integration with different smart electricity distribution system and energy management system, and sharing monitoring data andenergy data.
8MB memory, 32,000pcs record
Accuracy: 0.2S
Measurement: full electrical measuring
Harmonics: up to 51st
Display: TFT

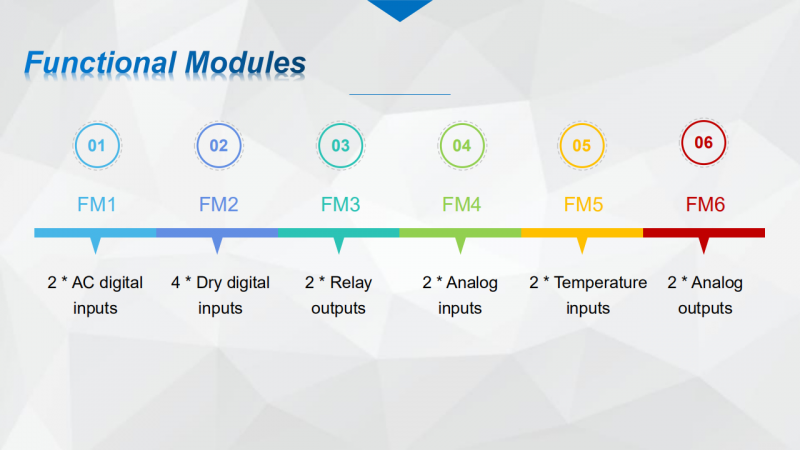

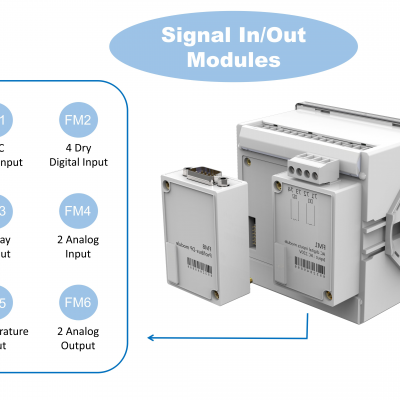

Modular design: 12 optional modulars available
Accuracy: 0.2S
Measurement: full electrical measuring
Harmonics: up to 51st
Display: TFT
Modular design: 12 optional modulars available

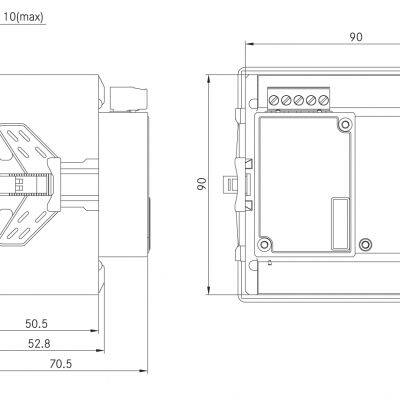

INSTALLATION METHOD
2) Take off the supporting clips of the meter;
3) Insert the meter into the cutout;
4) Insert and push the supporting clips to fix the meter.
Specification
Display Mode |
Sfere 720: LCD, Sfere720:TFT |
|
Accuracy |
V/A |
0.2% |
P/Q/S/PF |
0.2% |
|
F |
±0.01Hz |
|
±kWh |
Class 0.2S |
|
±kvar |
Class 2 |
|

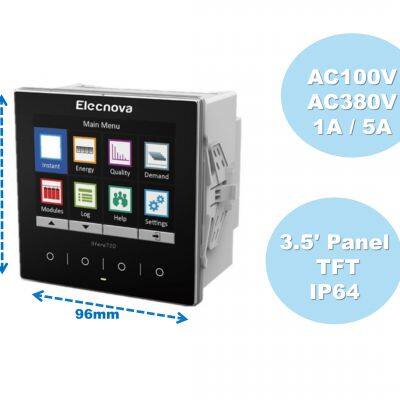

Voltage Input |
Rated value |
AC 100V/ 380V |
Overload |
Continuous: 1.2Vn Instantaneous: 2Vn/1010s |
|
Burden |
≤0.1VA(per phase) |
|
Impedance |
≥1.7MΩ |
|
Frequency |
45Hz~65Hz |
|
Current Input |
Rated value |
AC 1A/5A |
Overload |
Continuous: 1.2In Instantaneous: 2In/5s |
|
Burden |
≤0.2VA(per phase) |
|
Impedance |
≤20mΩ |
|
Auxiliary Supply |
Working range |
AC 80~270V 50/60Hz, DC 100~350V |
Consumption |
≤5VA |
|
Communication Port |
RS485, Modbus-RTU, 2-wire, up to 38.4kbps |
|
Energy Pulse Output |
1 photocoupler output, pulse width(80±20%)ms |
|
Digital Input |
2 AC wet contact inputs, Isolation: 5kVAC |
|
Relay Output |
2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC |
|
Environment |
Operating temperature |
-25℃~70℃ |
Storage temperature |
-30℃~80℃ |
|
Relative humidity |
≤93% |
|
Altitude |
≤2500m |
|
Insulation |
≥2kVAC |
|
IP Degree |
Front IP64, Rear IP20 |

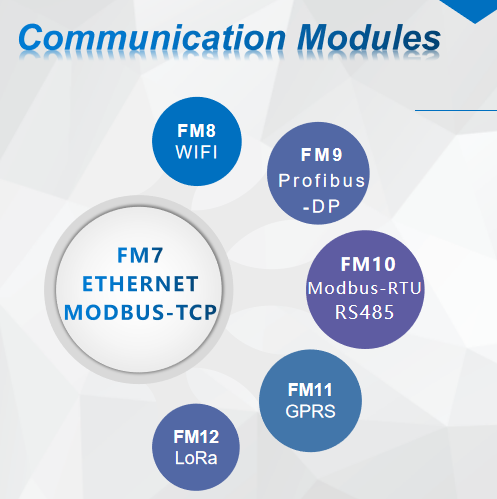

Sfere720 has 6 types of communication modules optional :
FM7- Ethernet(TCP/IP)
FM8- WIFI
FM9- Profibus DP
FM10- Modbus RTU/RS485
FM11- GPRS
FM12- LoRa
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
