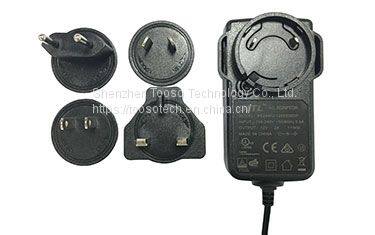

24W plug-in wall conversion switching power adapter
USD $6 - $8
/ Piece
200 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 10 days
You May Like
Product Details
| Brand Name | 24W | Place of Origin | China | |
| Model Number | AK24WG | Connection | Plug In | |
| Output Type | DC |
Product Description
Product number: AK24WG
Category: General
Shell type: wall plug-in type
Protection: overcurrent protection, overvoltage protection, short circuit protection
Meet the standards: EN60065,EN60950,EN61558
Applications:
Telecommunications equipment
Industrial equipment
Consumer electronic equipment
Office equipment
Model Spceifications | ||||
|---|---|---|---|---|
Model No. | Output Voltage | Output Current | Volt Tolerance | Power |
AK24WG | 4.1V~10.0V | 10~3600mA | 5% | 18.0W max |
| 10.1V~18.0V | 10~2400mA | 5% | 24.0W max | |
| 18.1V~26.0V | 10~1300mA | 5% | 24.0W max | |
| 26.1V~36.0V | 10~950mA | 5% | 24.0W max | |
| Input: | ||||
| Input Voltage Range: | 90~264Vac | |||
| Frequency: | 47~63Hz | |||
| Input Current: | 600mA | |||
| Leakage Current: | ≤3.5mA | |||
| Output: | ||||
| Load Regulation: | ≤5% | |||
| Ripple: | 1% Vp-p Max. for Output Voltage@ Full Load | |||
| Hold-up Time | ≥5mS @ Full Load | |||
| Turn On Delay Time | 3S Max @ 100Vac, full load | |||
| Rise Time | ≤200ms Max.@ 220Vac, full load | |||
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection | |||
| Safety Approvals: | ||||
| UL cUL CE GS CCC FCC SAA NoM-NYCE PSE VCCI KC EAC BSMI INMETRO S-MARK BIS PSB CB | ||||
| Efficiency | DoE LevelⅥ | |||
| Safety Standard | EN60065, EN60950, EN61558 | |||
| MTBF | 300,000 Calculated Hours at 25ºC , by Telcordia SR-332 | |||
| Environmental: | ||||
| Operating Temp: | 0℃to +40℃ | |||
| Operating Humidity: | 10 to +90℃RH | |||
| Storage Temp: | -40℃to +70℃ | |||
| Storage Humidity: | 10 to +90℃RH | |||
| Mechanical: | ||||
| AC Input Plug: | CCC,US,PSE,BS,CE,SAA | |||
| DC Output Plug: | Universal output plug system | |||
| Package: | ||||
| CTN: 120pcs per ctn | ||||
| N.W: | ||||
| G.W: | ||||
| Application Scope: | ||||
| Telecommunication Devices | ||||
| Industrial Equipments | ||||
| Consumer Electronic Devices | ||||
| Office Facilities | ||||
| Dimension: | ||||
| L*W*H: mm | ||||
| Weight:0.120kg | ||||
| Outline Drawing： | ||||
 | ||||
