Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > 120W Wall Plug-in Desktop Switching Power Adapter

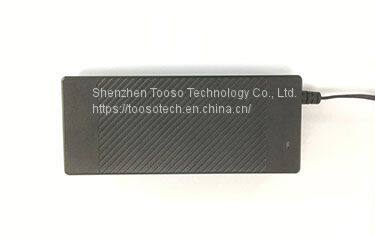

120W Wall Plug-in Desktop Switching Power Adapter
US$ 10 - 12
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
120W
Place of Origin:
China
Model Number:
AK120WG
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
10 days
Related Products
-
12W Single Output Open Switching Power AdapterUS$ 5 - 6MOQ: 200 Pieces -
20W Single Output Open Switching Power AdapterUS$ 6 - 8MOQ: 200 Pieces
-
36W Single Output Open Switching Power AdapterUS$ 6 - 8MOQ: 200 Pieces
-
65W Single Output Open Switching Power AdapterUS$ 8 - 8MOQ: 200 Pieces
-
10W Dual Output Open Switching Power AdapterUS$ 1.5 - 2MOQ: 200 Pieces
Brand Name
120W
Place of Origin
China
Model Number
AK120WG
Connection
Desktop
Output Type
DC
Product number: AK120WG
Category: General
Shell type: desktop type
Protection: overcurrent protection, overvoltage protection, short circuit protection
Meet the standards: EN60065,EN60950,EN61558
Applications:
Telecommunications equipment
Industrial equipment
Consumer electronic equipment
Office equipment
Model Spceifications | ||||
|---|---|---|---|---|
Model No. |
Output Voltage |
Output Current |
Volt Tolerance |
Power |
AK120WG |
10.1V~30.0V | 10~9000mA | 5% | 120.0W max |
| 30.1V~48.0V | 10~4000mA | 5% | 132.0W max | |
| Input: | ||||
| Input Voltage Range: | 90~264Vac | |||
| Frequency: | 47~63Hz | |||
| Input Current: | 3000mA | |||
| Leakage Current: | ≤3.5mA | |||
| Output: | ||||
| Load Regulation: | ≤5% | |||
| Ripple: | 1% Vp-p Max. for Output Voltage@ Full Load | |||
| Hold-up Time | ≥5mS @ Full Load | |||
| Turn On Delay Time | 3S Max @ 100Vac, full load | |||
| Rise Time | ≤200ms Max.@ 220Vac, full load | |||
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection | |||
| Safety Approvals: | ||||
| UL cUL CE GS CCC FCC SAA NoM-NYCE PSE VCCI KC EAC BSMI INMETRO S-MARK BIS PSB CB | ||||
| Efficiency | DoE LevelⅥ | |||
| Safety Standard | EN60065, EN60950, EN61558 | |||
| MTBF | 300,000 Calculated Hours at 25ºC , by Telcordia SR-332 | |||
| Environmental: | ||||
| Operating Temp: | 0℃to +40℃ | |||
| Operating Humidity: | 10 to +90℃RH | |||
| Storage Temp: | -40℃to +70℃ | |||
| Storage Humidity: | 10 to +90℃RH | |||
| Mechanical: | ||||
| AC Input Plug: | IEC320 C6/C8/C14 | |||
| DC Output Plug: | Universal output plug system | |||
| Package: | ||||
| CTN: 120pcs per ctn | ||||
| N.W: | ||||
| G.W: | ||||
| Application Scope: | ||||
| Telecommunication Devices | ||||
| Industrial Equipments | ||||
| Consumer Electronic Devices | ||||
| Office Facilities | ||||
| Dimension: | ||||
| L*W*H: mm | ||||
| Weight:0.400kg | ||||

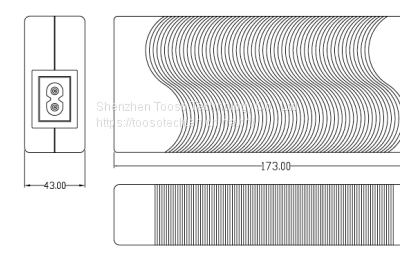

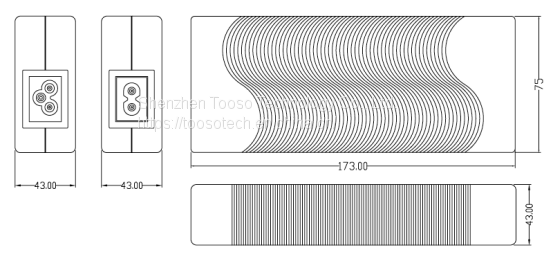

| Outline Drawing： | ||||
| ||||
