15W Dual Output Open Switching Power Adapter

15W Dual Output Open Switching Power Adapter thumbnail-1
15W Dual Output Open Switching Power Adapter thumbnail-2
15W Dual Output Open Switching Power Adapter photo-1
15W Dual Output Open Switching Power Adapter photo-2
US$ 2 - 2 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
TS-015D
Place of Origin:
China
Model Number:
TS-015D
Contact Supplier Request Quote Chat Now
Shenzhen Tooso Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TS-015D
Place of Origin China
Model Number TS-015D
Output Power 1 - 50W
Output Type Dual
Output Voltage 5.0V/9.0V/12.0V/24.0V
Input Voltage Other, 90~264Vac

Product number: TS-015D
Category: General
Protection: overcurrent protection, overvoltage protection, short circuit protection
Meet the standards: EN55032 EN55024 EN61000
Applications:
Communication equipment
Home appliance equipment
Security equipment
Office equipment

Model Spceifications

Model No.

Output Voltage

Output Current

Volt Tolerance

Power

TS-010D

 CH1 5.0V 10~500mA 2% 11.5W max
CH2 9.0V 10~1000mA 2%
TS-010D CH1

5.0V

 10~500mA 2% 14.5W max
CH2 12.0V 10~1000mA 2%
TS-010D CH1 5.0V 10~500mA 2% 12.1W max
CH2 24.0V 10~400mA 2%

Input:
Input Current:  300mA
Leakage Current: ≤3.5mA

Output:
Load Regulation: ≤5%
Ripple: 1% Vp-p Max. for Output Voltage@ Full Load
Hold-up Time ≥5mS @ Full Load
Turn On Delay Time 3S Max @ 100Vac, full load
Rise Time ≤200ms Max.@ 220Vac, full load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current Protection

Safety Approvals:
UL cUL CE GS CCC FCC SAA NoM-NYCE PSE VCCI KC EAC BSMI INMETRO S-MARK BIS PSB CB

Efficiency DoE Level V/Ⅵ
Safety Standard EN55032 EN55024 EN61000
MTBF 300,000 Calculated Hours at 25ºC , by Telcordia SR-332

Environmental:
Operating Temp: 0℃to +40℃
Operating  Humidity: 10 to +90℃RH
Storage Temp: -40℃to +70℃
Storage Humidity: 10 to +90℃RH

Mechanical:
AC Input Plug: 2PIN
DC Output Plug: Universal output plug system

Package:
CTN: 240pcs per ctn
N.W:
G.W:

Application Scope:
Communication Equipment
Household Appliances
Security Equipments
Office Facilities

Dimension:
L*W*H: mm
Weight:0.030kg

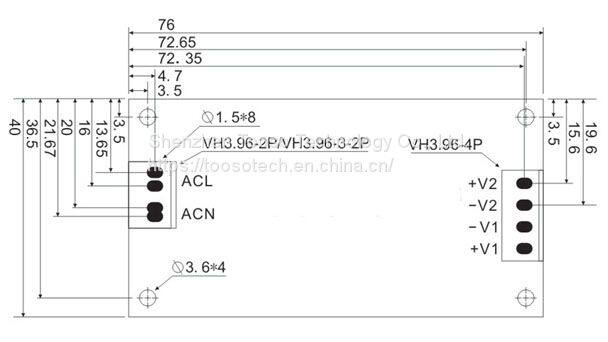

Outline Drawing：


Product Tags: 15W dual output , 15W charger , 15W adapter , 15W switching power supply , 15W dual output open switching power adapter
