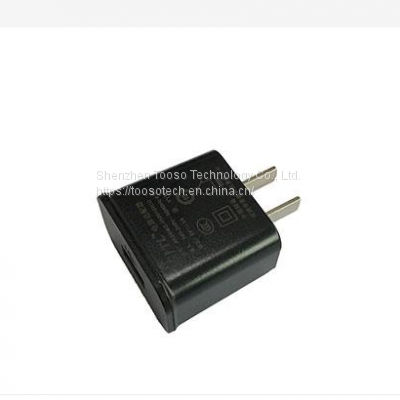

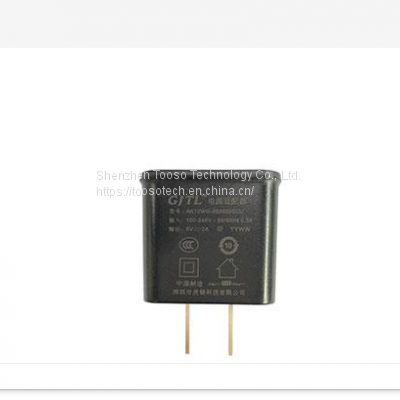

12W wall-mounted USB charger

Name: 12W wall-mounted USB charger
Price: Negotiable

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Product Details

Place of Origin:

China

Model Number:

AK06WG

Use:

Other, Communication Equipment

Model Spceifications
AK06WG	5.0V	10~2400mA	5%	12.0W max

Input:
Input Voltage Range:		90~264Vac
Frequency:		47~63Hz
Input Current:		200mA
Leakage Current:		≤3.5mA

Output:
Load Regulation:		≤5%
Ripple:		1% Vp-p Max. for Output Voltage@ Full Load
Hold-up Time		≥5mS @ Full Load
Turn On Delay Time		3S Max @ 100Vac, full load
Rise Time		≤200ms Max.@ 220Vac, full load
Protection		Short Circuit Protection/ Over Voltage Protection/ Over Current Protection

Safety Approvals:
UL cUL CE GS CCC FCC SAA NoM-NYCE PSE VCCI KC EAC BSMI INMETRO S-MARK BIS PSB CB

Efficiency		DoE LevelⅥ
Safety Standard		EN60065, EN60950, EN61558
MTBF		300,000 Calculated Hours at 25ºC , by Telcordia SR-332

Environmental:
Operating Temp:		0℃to +40℃
Operating Humidity:		10 to +90℃RH
Storage Temp:		-40℃to +70℃
Storage Humidity:		10 to +90℃RH

Mechanical:
AC Input Plug:		CCC,US,PSE,BS,CE,SAA
DC Output Plug:		Universal output plug system

Package:
CTN: 240pcs per ctn
N.W:
G.W:

Application Scope:
Communication Equipment
Household Appliances
Security Equipments
Office Facilities

Dimension:
LWH: mm
Weight:0.045kg
Outline Drawing：
