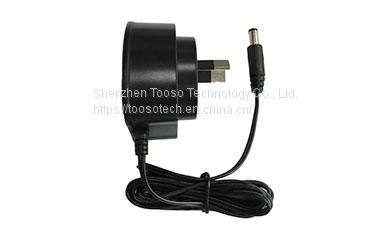

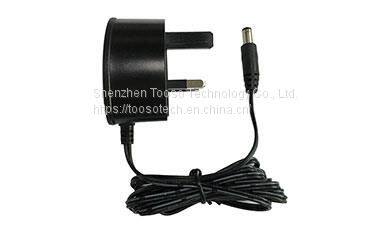

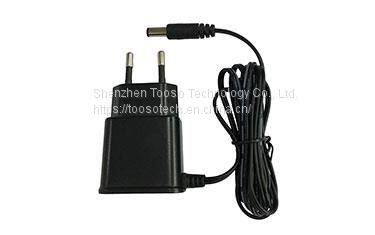

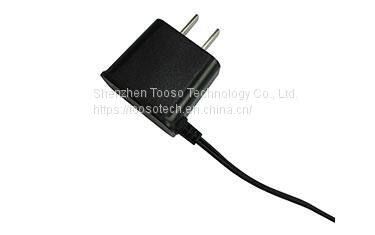

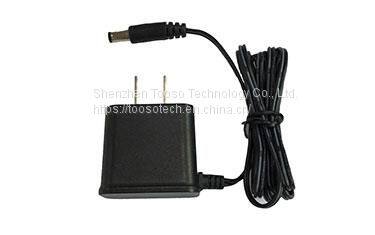

12W plug-in wall switching power adapter

Name: 12W plug-in wall switching power adapter
Availability: InStock

FOB Price

USD $2 - $2 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Model Number	AK12WG
Use	Other, Communication Equipment

Model Spceifications
AK06WG	5.0V	10~2400mA	5%	12.0W max

Input:
Input Voltage Range:		90~264Vac
Frequency:		47~63Hz
Input Current:		200mA
Leakage Current:		≤3.5mA

Output:
Load Regulation:		≤5%
Ripple:		1% Vp-p Max. for Output Voltage@ Full Load
Hold-up Time		≥5mS @ Full Load
Turn On Delay Time		3S Max @ 100Vac, full load
Rise Time		≤200ms Max.@ 220Vac, full load
Protection		Short Circuit Protection/ Over Voltage Protection/ Over Current Protection

Safety Approvals:
UL cUL CE GS CCC FCC SAA NoM-NYCE PSE VCCI KC EAC BSMI INMETRO S-MARK BIS PSB CB

Efficiency		DoE LevelⅥ
Safety Standard		EN60065, EN60950, EN61558
MTBF		300,000 Calculated Hours at 25ºC , by Telcordia SR-332

Environmental:
Operating Temp:		0℃to +40℃
Operating Humidity:		10 to +90℃RH
Storage Temp:		-40℃to +70℃
Storage Humidity:		10 to +90℃RH

Mechanical:
AC Input Plug:		CCC,US,PSE,BS,CE,SAA
DC Output Plug:		Universal output plug system

Package:
CTN: 240pcs per ctn
N.W:
G.W:

Application Scope:
Communication Equipment
Household Appliances
Security Equipments
Office Facilities

Dimension:
LWH: mm
Weight:0.045kg

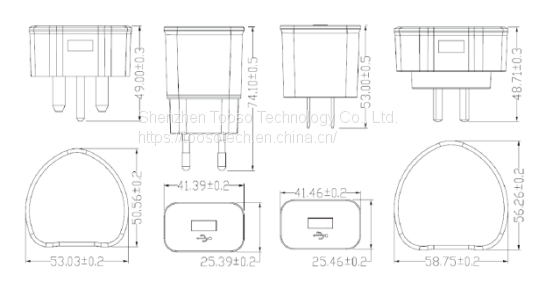

Outline Drawing：
