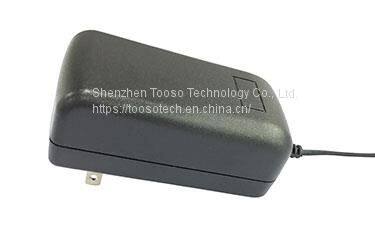

48W plug-in wall switching power adapter

FOB Price

USD $8 - $10 / Piece

200 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail:10 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	48W	Place of Origin:	China	Model Number:	AK48WG
Connection:	Plug In	Output Type:	DC

Product Description

Product number: AK48WG
Category: General
Shell type: wall plug-in type
Protection: overcurrent protection, overvoltage protection, short circuit protection
Meet the standards: EN60065,EN60950,EN61558
Applications:
Telecommunications equipment
Industrial equipment
Consumer electronic equipment
Office equipment

Model Spceifications
Model No.	Output Voltage	Output Current	Volt Tolerance	Power
AK48WG	4.1V~10.0V	10~5000mA	5%	40.0W max
	10.1V~18.0V	10~400mA	5%	48.0W max
	18.1V~26.0V	10~2000mA	5%	48.0W max
	26.1V~36.0V	10~1500mA	5%	48.0W max

Input:
Input Voltage Range:		90~264Vac
Frequency:		47~63Hz
Input Current:		1000mA
Leakage Current:		≤3.5mA

Output:
Load Regulation:		≤5%
Ripple:		1% Vp-p Max. for Output Voltage@ Full Load
Hold-up Time		≥5mS @ Full Load
Turn On Delay Time		3S Max @ 100Vac, full load
Rise Time		≤200ms Max.@ 220Vac, full load
Protection		Short Circuit Protection/ Over Voltage Protection/ Over Current Protection

Safety Approvals:
UL cUL CE GS CCC FCC SAA NoM-NYCE PSE VCCI KC EAC BSMI INMETRO S-MARK BIS PSB CB

Efficiency		DoE LevelⅥ
Safety Standard		EN60065, EN60950, EN61558
MTBF		300,000 Calculated Hours at 25ºC , by Telcordia SR-332

Environmental:
Operating Temp:		0℃to +40℃
Operating Humidity:		10 to +90℃RH
Storage Temp:		-40℃to +70℃
Storage Humidity:		10 to +90℃RH

Mechanical:
AC Input Plug:		CCC,US,PSE,BS,CE,SAA
DC Output Plug:		Universal output plug system

Package:
CTN: 120pcs per ctn
N.W:
G.W:

Application Scope:
Telecommunication Devices
Industrial Equipments
Consumer Electronic Devices
Office Facilities

Dimension:
LWH: mm
Weight:0.130kg
Outline Drawing：
