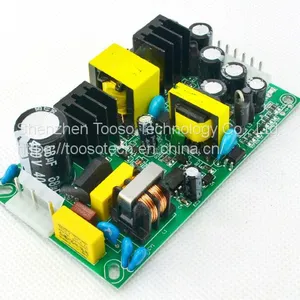

50W Dual Output Open Switching Power Adapter
US$ 6 - 8
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
TS-050D
Place of Origin:
China
Model Number:
TS-050D
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
250W Portable Energy Storage Power Outdoor Power SupplyNegotiableMOQ: 10 Pieces -
6W Wall-mounted USB ChargerNegotiableMOQ: 100 Pieces
-
18W Plug-in Wall Conversion Switching Power AdapterUS$ 4 - 6MOQ: 100 Pieces
-
12W Wall-mounted USB ChargerNegotiableMOQ: 100 Pieces
-
12W Plug-in Wall Switching Power AdapterUS$ 2 - 2MOQ: 100 Pieces
Brand Name
TS-050D
Place of Origin
China
Model Number
TS-050D
Output Power
1 - 50W
Output Type
Dual
Output Voltage
5.0V/9.0V/12.0V/24.0V
Input Voltage
Other, 90~264Vac
Product number: TS-050D
Category: General
Protection: overcurrent protection, overvoltage protection, short circuit protection
Meet the standards: EN55032 EN55024 EN61000
Applications:
Communication equipment
Home appliance equipment
Security equipment
Office equipment
Model Spceifications | |||||
|---|---|---|---|---|---|
Model No. |
Output Voltage |
Output Current |
Volt Tolerance |
Power |
|
TS-050D |
CH1 | 12.0V | 10~2300mA | 2% | 48.5W max |
| CH2 | 5.0V | 10~400mA | 2% | ||
| TS-050D | CH1 | 24.0V |
10~4000mA | 2% | 48.5W max |
| CH2 | 12.0V | 10~300mA | 2% | ||
| Input: | |||||
| Input Voltage Range: | 90~264Vac | ||||
| Frequency: | 47~63Hz | ||||
| Input Current: | 800mA | ||||
| Leakage Current: | ≤3.5mA | ||||
| Output: | |||||
| Load Regulation: | ≤5% | ||||
| Ripple: | 1% Vp-p Max. for Output Voltage@ Full Load | ||||
| Hold-up Time | ≥5mS @ Full Load | ||||
| Turn On Delay Time | 3S Max @ 100Vac, full load | ||||
| Rise Time | ≤200ms Max.@ 220Vac, full load | ||||
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection | ||||
| Safety Approvals: | |||||
| UL cUL CE GS CCC FCC SAA NoM-NYCE PSE VCCI KC EAC BSMI INMETRO S-MARK BIS PSB CB | |||||
| Efficiency | DoE Level V/Ⅵ | ||||
| Safety Standard | EN55032 EN55024 EN61000 | ||||
| MTBF | 300,000 Calculated Hours at 25ºC , by Telcordia SR-332 | ||||
| Environmental: | |||||
| Operating Temp: | 0℃to +40℃ | ||||
| Operating Humidity: | 10 to +90℃RH | ||||
| Storage Temp: | -40℃to +70℃ | ||||
| Storage Humidity: | 10 to +90℃RH | ||||
| Mechanical: | |||||
| AC Input Plug: | 2PIN | ||||
| DC Output Plug: | Universal output plug system | ||||
| Package: | |||||
| CTN: 240pcs per ctn | |||||
| N.W: | |||||
| G.W: | |||||
| Application Scope: | |||||
| Communication Equipment | |||||
| Household Appliances | |||||
| Security Equipments | |||||
| Office Facilities | |||||
| Dimension: | |||||
| L*W*H: mm | |||||
| Weight:0.125kg | |||||

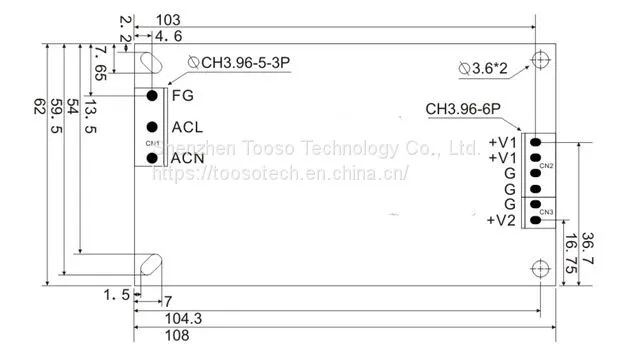

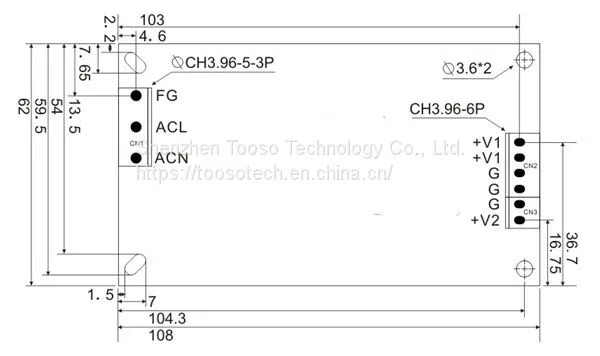

| Outline Drawing： | |||||
| |||||
