12W Single Output Open Switching Power Adapter
US$ 5 - 6
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
TS-012SH
Place of Origin:
China
Model Number:
TS-012SH
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20W Single Output Open Switching Power AdapterUS$ 6 - 8MOQ: 200 Pieces -
36W Single Output Open Switching Power AdapterUS$ 6 - 8MOQ: 200 Pieces
-
65W Single Output Open Switching Power AdapterUS$ 8 - 8MOQ: 200 Pieces
-
10W Dual Output Open Switching Power AdapterUS$ 1.5 - 2MOQ: 200 Pieces
-
15W Dual Output Open Switching Power AdapterUS$ 2 - 2MOQ: 200 Pieces
Brand Name
TS-012SH
Place of Origin
China
Model Number
TS-012SH
Output Type
Single
Output Current
2000mA
Output Voltage
5.0V/9.0V/12.0V/24.0V
Input Voltage
Other, 90~264Vac
Product number: TS-012SH
Category: General
Protection: overcurrent protection, overvoltage protection, short circuit protection
Meet the standards: EN55032 EN55024 EN61000
Applications:
Communication equipment
Home appliance equipment
Security equipment
Office equipment
Model Spceifications | ||||
|---|---|---|---|---|
Model No. |
Output Voltage |
Output Current |
Volt Tolerance |
Power |
TS-U12S |
5.0V | 10~2000mA | 5% | 10.0W max |
| 9.0V | 10~1200mA | 5% | 10.8W max | |
| 12.0V | 10~1000mA | 5% | 12.0W max | |
| 24.0V | 10~500mA | 5% | 12.0W max | |
| Input: | ||||
| Input Voltage Range: | 90~264Vac | |||
| Frequency: | 47~63Hz | |||
| Input Current: | 300mA | |||
| Leakage Current: | ≤3.5mA | |||
| Output: | ||||
| Load Regulation: | ≤5% | |||
| Ripple: | 1% Vp-p Max. for Output Voltage@ Full Load | |||
| Hold-up Time | ≥5mS @ Full Load | |||
| Turn On Delay Time | 3S Max @ 100Vac, full load | |||
| Rise Time | ≤200ms Max.@ 220Vac, full load | |||
| Protection | Short Circuit Protection/ Over Voltage Protection/ Over Current Protection | |||
| Safety Approvals: | ||||
| UL cUL CE GS CCC FCC SAA NoM-NYCE PSE VCCI KC EAC BSMI INMETRO S-MARK BIS PSB CB | ||||
| Efficiency | DoE Level V/Ⅵ | |||
| Safety Standard | EN55032 EN55024 EN61000 | |||
| MTBF | 300,000 Calculated Hours at 25ºC , by Telcordia SR-332 | |||
| Environmental: | ||||
| Operating Temp: | 0℃to +40℃ | |||
| Operating Humidity: | 10 to +90℃RH | |||
| Storage Temp: | -40℃to +70℃ | |||
| Storage Humidity: | 10 to +90℃RH | |||
| Mechanical: | ||||
| AC Input Plug: | 2PIN | |||
| DC Output Plug: | Universal output plug system | |||
| Package: | ||||
| CTN: 240pcs per ctn | ||||
| N.W: | ||||
| G.W: | ||||
| Application Scope: | ||||
| Communication Equipment | ||||
| Household Appliances | ||||
| Security Equipments | ||||
| Office Facilities | ||||
| Dimension: | ||||
| L*W*H: mm | ||||
| Weight:0.030kg | ||||

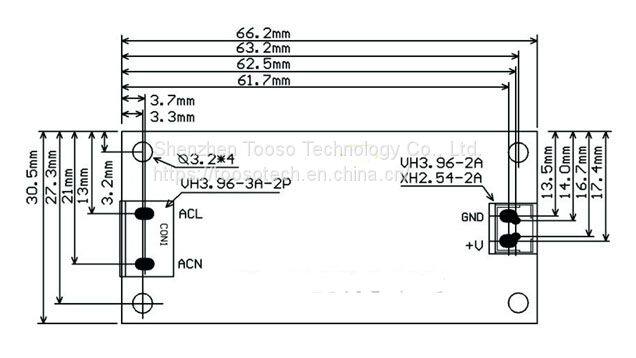

| Outline Drawing： | ||||
| ||||
