SHENZHEN JNORTY TECHNOLOGY CO.,LTD: Shenzhen, Guangdong, China; Main products: AC/DC Adapters, Switching Power Supply, Battery Charger, Clipper Charger, USB Charger

Home > Products > Desktop Series > Desktop Type 24V1500MA AC/DC Adapters with CCC PSE CE CE UKCA approve 24V1.5A Switching Power Supply for LED CCTV Camera Intellectual Products

Desktop Type 24V1500MA AC/DC Adapters with CCC PSE CE CE UKCA approve 24V1.5A Switching Power Supply for LED CCTV Camera Intellectual Products

FOB Price

USD $3.75 - $4.20 / Piece

1000 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port ShenZhen
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JNORTY	Place of Origin	China
Model Number	JETA36W-240150	Connection	Desktop
Output Type	DC

Product Description

36W Desktop Plug AC/DC Adapters

Specification Parameter:
1,Input condition:
Rated input voltage: 100V-240Vac
Input voltage range: 90V-264Vac
Rated input frequency: 50/60Hz +/-3Hz

2,Output Characteristics:
Rated output power: 24W-36W Series
Output voltage range: 5-30Vdc
Output voltage error range: +/-5%
Output current range: 0.1A-4A

3,Protection Function:
(1). Short-circuit current protection;
(2). Overvoltage protection;
(3) .Overcurrent protection;

4,Environment Requirements:
Operating Temperature: 0ºC to +40ºC
Operating Relative Humidity: 0%RH to 90%RH
Storage Temperature: -20ºC to +80ºC
Storage Relative Humidity: 5%RH to 95%RH non-condensing

5,Product Features:
(1). High temperature fire resistant and flame retardant shell material is used.
(2). Voltage stabilization mode;
(3). IC electric design, stable performance, safe and reliable;
(4). High efficiency, low no-load power consumption, energy saving and environmental protection;

6.Apply to:

Lighting, toys,motors,fans,LED,CCTV camera, electronics products, Intellectual Products,....

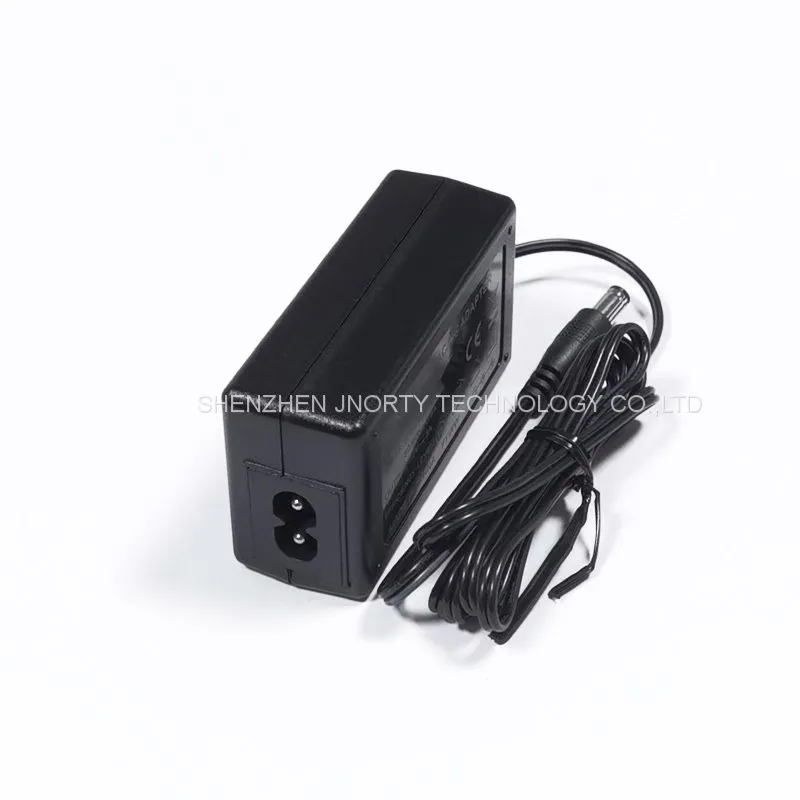

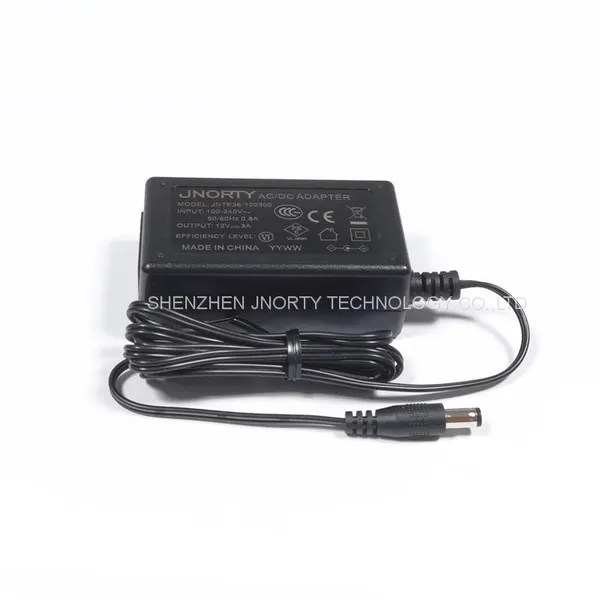

7.Product Picture:

8,specification parameter:

Parameter:

Input/Output

Input:AC100-240V 50/60Hz 0.8A

Output:DC5V-30V / 0.1A-4A 24W-36W (Max)

safety certificate:

PSE CB CCC CE UKCA

Output Voltage
(V)

5.0V

6.0V

8.0V

9.0V
9.6V

10V

12.0V
12.6V

14V

15V

16V

18V

19V

20V

24V

25V
25.2V

26V

28V

29.5V

30V

Current Output
(A)

3.5A
4.0A

2.5A
3.0A

2.5A

2.6A

3.0A

2.4A

2.5A

3.0A

2.0A

2.5A

3.0A

1.7A
2.0A
2.4A

1.6A
2.0A
2.4A

1.5A
1.87A
2.25A

1.33A
1.6A
2.0A

1.26A
1.57A
1.89A

1.2A
1.5A
1.8A

1.0A
1.25A
1.5A

1.0A
1.2A
1.42A

0.9A
1.0A
1.38A

0.85A
1.0A
1.28A

0.8A
1.0A
1.2A

9. Safety Certificate:

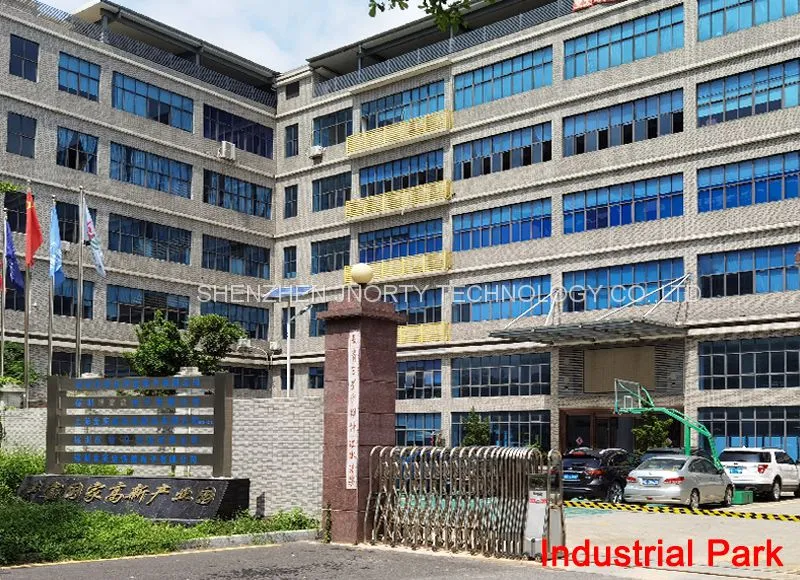

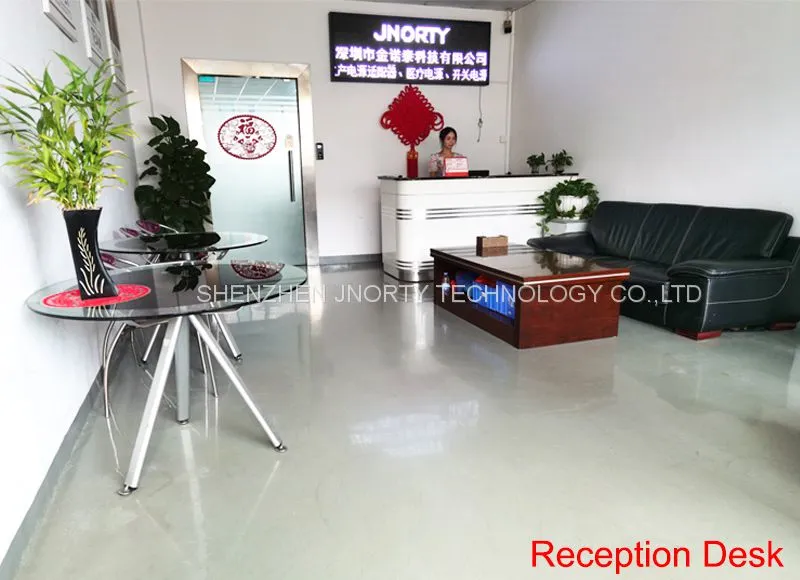

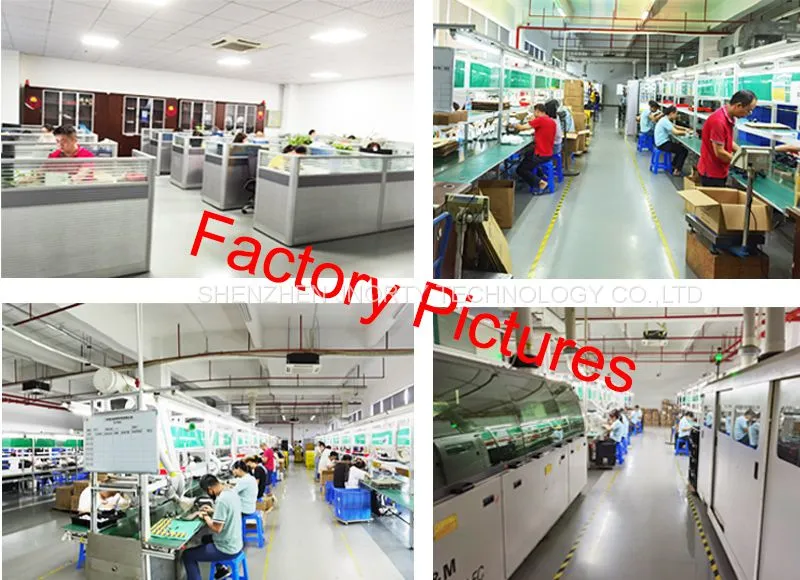

10. Introduction of the factory:
