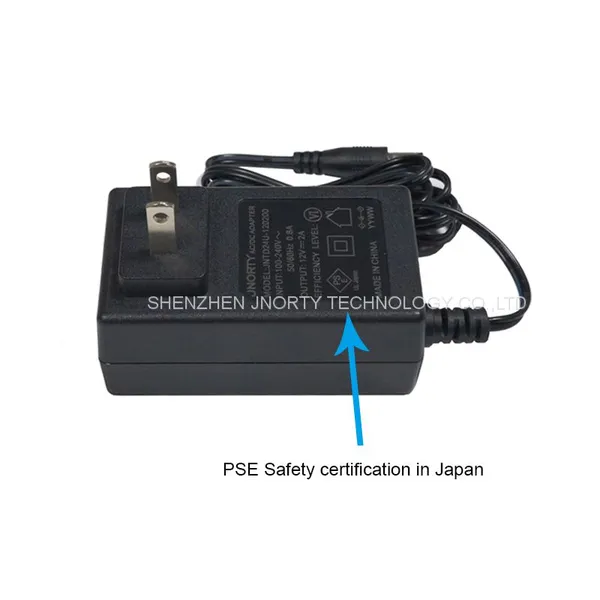

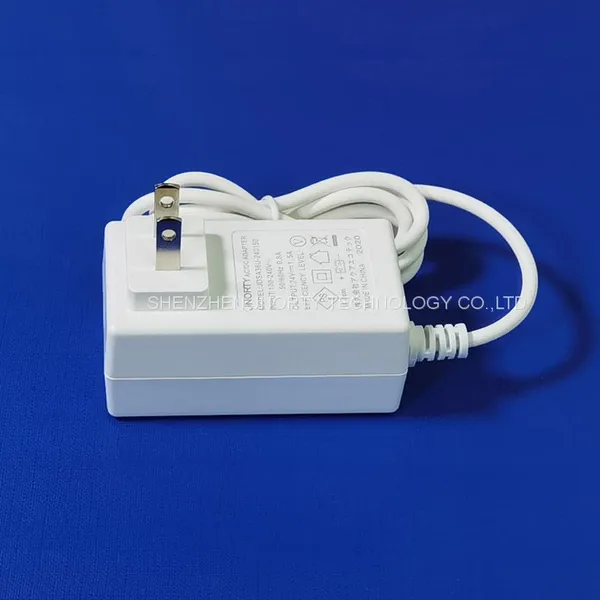

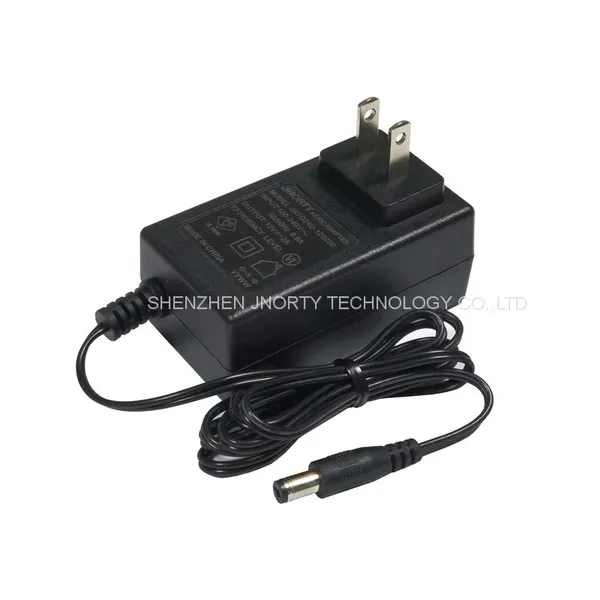

12V 2.5A LED Power Adaptor JP Plug With PSE Certificate 12V2.5A CCTV Switching Power Supply

FOB Price

US$ 3.65 - 3.98 / Piece

1000 Pieces(Min. Order)

Port ShenZhen
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JNORTY	Place of Origin	China
Model Number	JDTA24U-120200	Output Power	Other, 24W
Output Type	Single	Output Current	2A
Output Frequency	50/60Hz	Output Voltage	12V
Input Voltage	Other, 100-240V

Product Description

24W Japan AC Plug Switching Power Supply

Specification Parameter:
1,Input condition:
Rated input voltage: 100V-240Vac
Input voltage range: 90V-264Vac
Rated input frequency: 50/60Hz +/-3Hz

2,Output Characteristics:
Rated output power: 24w Series
Output voltage range: 5V-30V
Output voltage error range: +/-5%
Output current range: 0.1A-4A

3,Protection Function:
(1). Short-circuit current protection;
(2). Overvoltage protection;
(3) .Overcurrent protection;

4,Environment Requirements:
Operating Temperature: 0ºC to +40ºC
Operating Relative Humidity: 0%RH to 90%RH
Storage Temperature: -20ºC to +80ºC
Storage Relative Humidity: 5%RH to 95%RH non-condensing

5,Product Features:
(1). High temperature fire resistant and flame retardant shell material is used.
(2). Voltage stabilization mode;
(3). IC electric design, stable performance, safe and reliable;
(4). High efficiency, low no-load power consumption, energy saving and environmental protection;

6.Apply to:

Lighting, toys,motors,fans,CCTV camera, electronics products....

7,specification parameter:

Parameter:

Input/Output

Input:AC100-240V 50/60Hz 0.8A

Output:DC5V-30V / 0.1A-4A 24W-36W (Max)

safety certificate:

PSE CB CCC CE UKCA

Output Voltage
(V)

5.0V

6.0V

8.0V

9.0V
9.6V

10V

12.0V
12.6V

14V

15V

16V

18V

19V

20V

24V

25V
25.2V

26V

28V

29.5V

30V

Current Output
(A)

3.5A
4.0A

2.5A
3.0A

2.5A

2.6A

3.0A

2.4A

2.5A

3.0A

2.0A

2.5A

3.0A

1.7A
2.0A
2.4A

1.6A
2.0A
2.4A

1.5A
1.87A
2.25A

1.33A
1.6A
2.0A

1.26A
1.57A
1.89A

1.2A
1.5A
1.8A

1.0A
1.25A
1.5A

1.0A
1.2A
1.42A

0.9A
1.0A
1.38A

0.85A
1.0A
1.28A

0.8A
1.0A
1.2A

8. Safety Certificate:

9. Introduction of the factory:
