Help Center5V 1A Micro USB Charger With CCC Authentication 5V1A Switching Power Supply for LED CCTV Camera Digital Products
Related Products
-
5V1A Korea Plug Switching Power Supply With KCC Approve 5V 1A Charger for Hair Clipper Shaver LED Digital ProductsUS$ 1.38 - 1.8MOQ: 1000 Pieces -
Desktop Type 24V1500MA AC/DC Adapters With CCC PSE CE CE UKCA Approve 24V1.5A Switching Power Supply for LED CCTV Camera Intellectual ProductsUS$ 3.75 - 4.20MOQ: 1000 Pieces
-
24V AC DC Adapter Wallmount JP Plug Wiht PSE Safety Certificate 24V1.5A Switching Power Supply for LED CCTV CameraUS$ 3.85 - 4.30MOQ: 1000 Pieces
-
24V 1A AC DC Adaptor Wallmount EU AC Plug With CE Approve 24V Switching Power Supply For LED CCTV Camer Digital ProductsUS$ 3.65 - 3.98MOQ: 1000 Pieces
-
3V 4.2V 5V 6V 7.5V 9V 10V 12V 15V Power Adaptor EU Plug With GS CE ROHS Authentication AC/DC Adapters for CCTV LED Hair CilpperUS$ 1.38 - 1.8MOQ: 1000 Pieces
6W CN Plug AC/DC ADAPTERS
Specification Parameter:
1,Input condition:
Rated input voltage: 100V-240V ac
Input voltage range: 90V-264V ac
Rated input frequency: 50/60Hz +/-3Hz
2,Output Characteristics:
Rated output power: 6W Max
Output voltage range: 3-15Vdc
Output voltage error range: +/-5%
Output current range: 0.1-1.2A
3,Protection Function:
(1). Short-circuit current protection;
(2). Overvoltage protection;
(3) .Overcurrent protection;
4,Environment Requirements:
Operating Temperature: 0ºC to +40ºC
Operating Relative Humidity: 0%RH to 90%RH
Storage Temperature: -20ºC to +80ºC
Storage Relative Humidity: 5%RH to 95%RH non-condensing
5,Product Features:
(1). High temperature fire resistant and flame retardant shell material is used.
(2). Voltage stabilization mode;
(3). IC electric design, stable performance, safe and reliable;
(4). High efficiency, low no-load power consumption, energy saving and environmental protection;
6. Parameter List:
| Parameter: | |||||||||||||
| INPUT | Input:AC100-240V 50/60Hz 0.2A | ||||||||||||
| Output:DC3V-15V 0.1A-1.2A 6W(Max) | |||||||||||||
| Output Voltage (V) | 3V | 3.3V | 4.2V | 4.5V | 5V | 6V | 7.5V | 8V | 9V | 10V | 12V | 14V | 15V |
| Current Output (A) | 0.33A 0.5A 1.0A 1.2A | 0.5A 1.0A 1.2A | 0.5A 0.7A 1.0A 1.2A | 0.5A 0.7A 1.0A 1.2A | 0.3A 0.5A 0.6A 0.8A 1.0A 1.2A | 0.3A 0.5A 1.0A | 0.5A 0.6A 0.8A | 0.5A 0.6A 0.7A | 0.3A 0.5A 0.65A | 0.3A 0.4A 0.5A 0.6A | 0.3A 0.4A 0.5A | 0.2A 0.3A 0.4A | 0.2A 0.3A 0.4A |
7.Apply to:
Lighting, toys,motors,fans,CCTV camera, electronics products,Hairdressing and beauty....

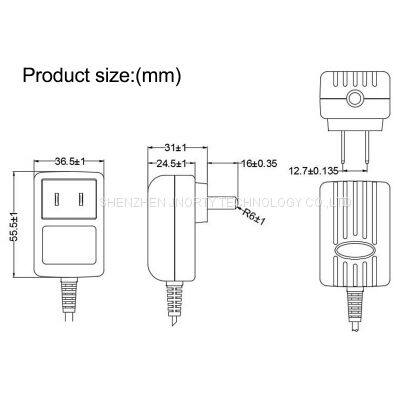

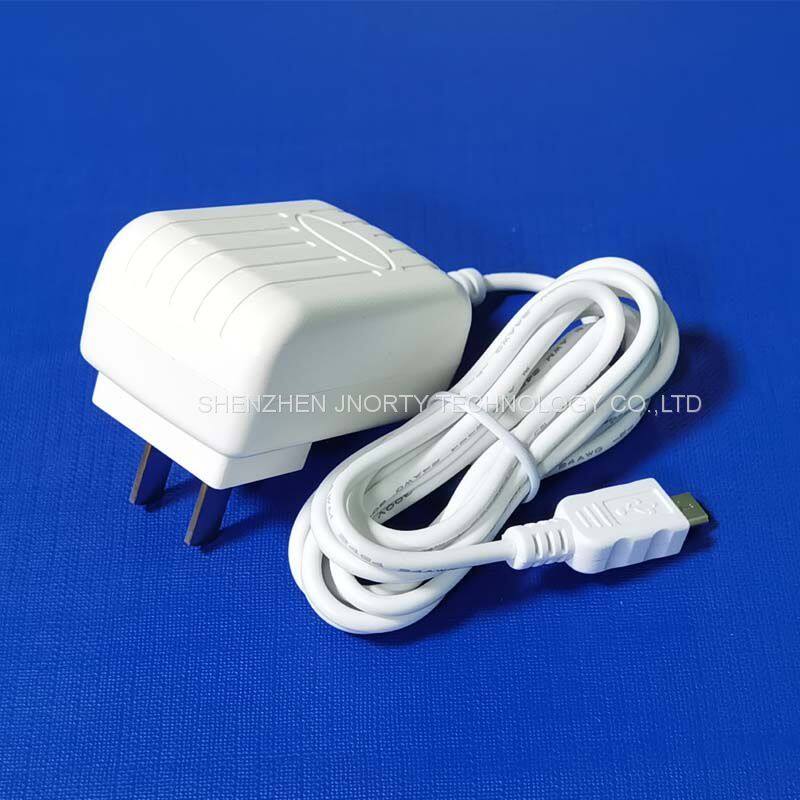

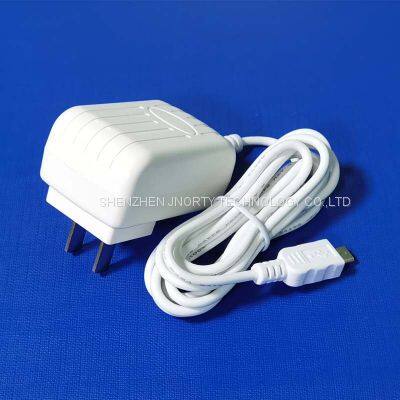

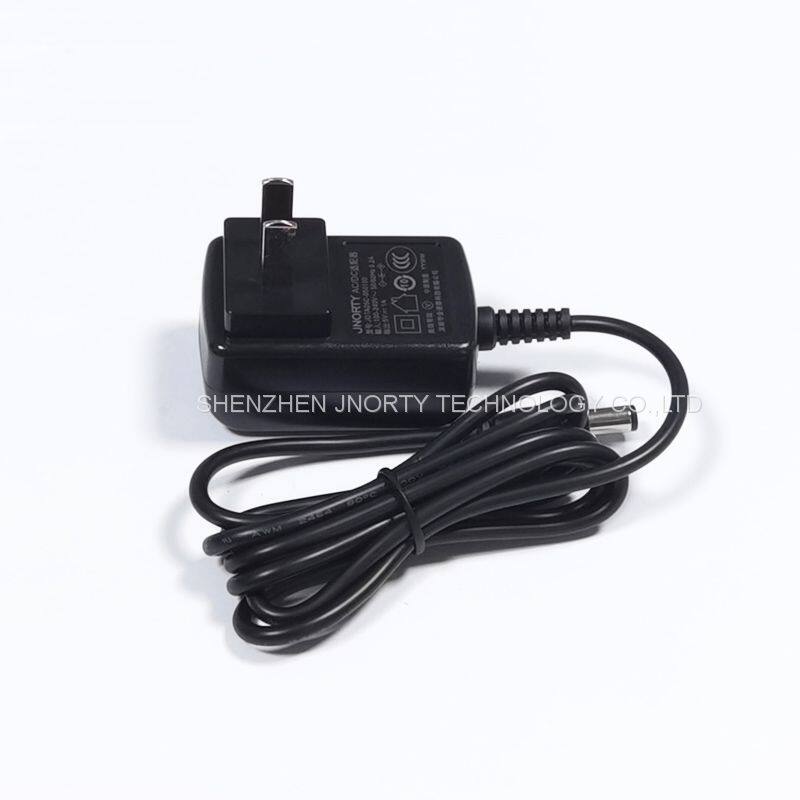

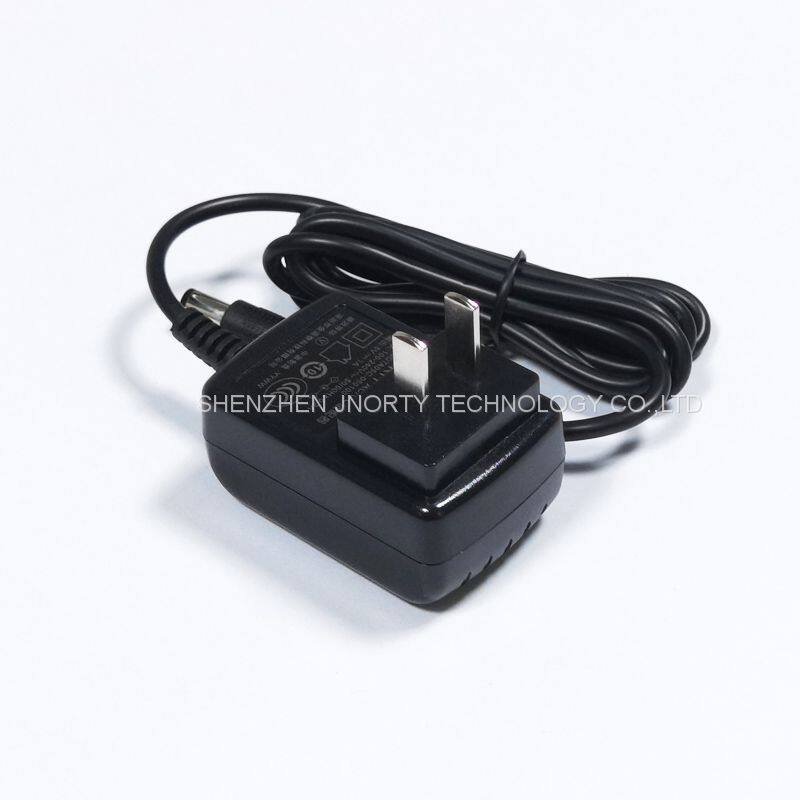

8.Product Picture:
9. Safety Certificate:

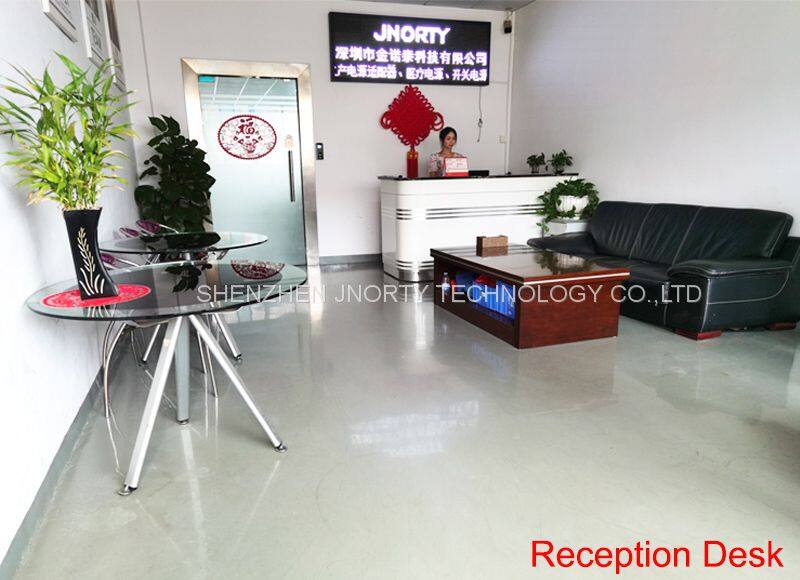

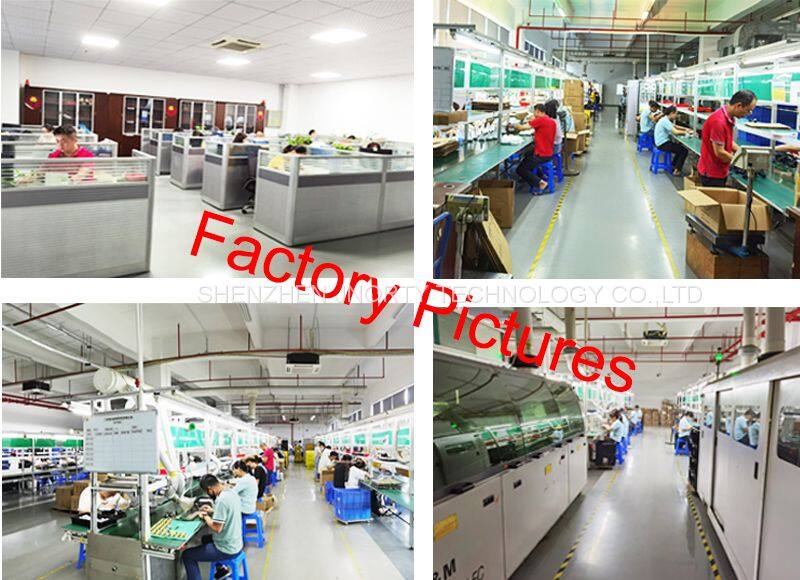

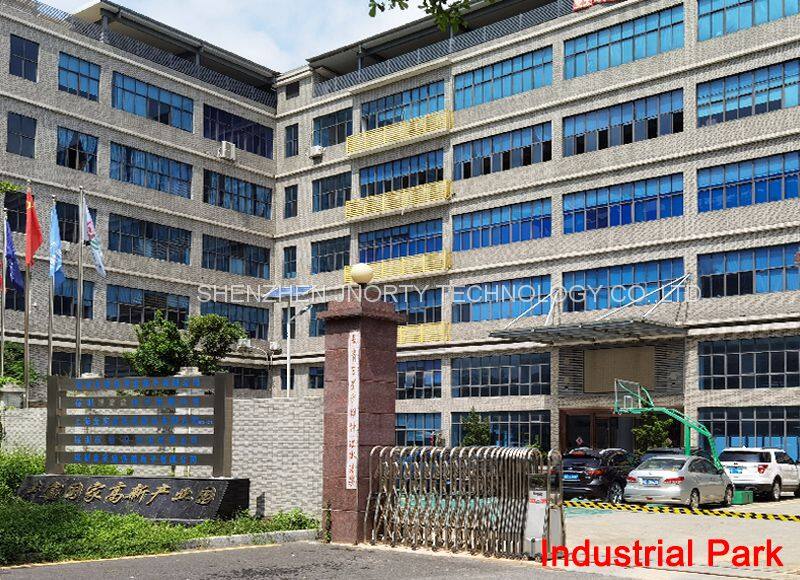

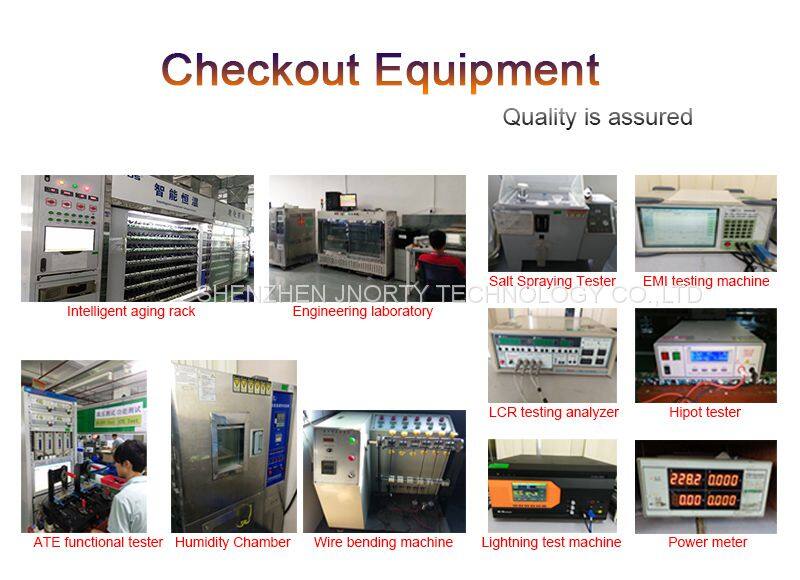

10. Introduction of the factory:
