Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Clipper Charger 5V 1A AC/DC Adapters With TUV GS CE Certification 5V1A Charger for Electric Shear Cosmetic Instrument

Clipper Charger 5V 1A AC/DC Adapters With TUV GS CE Certification 5V1A Charger for Electric Shear Cosmetic Instrument

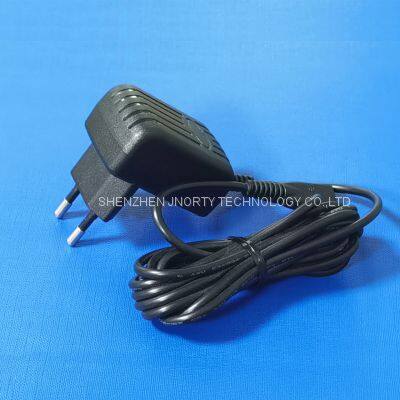

Clipper Charger 5V 1A AC/DC Adapters With TUV GS CE Certification 5V1A Charger for Electric Shear Cosmetic Instrument photo-1

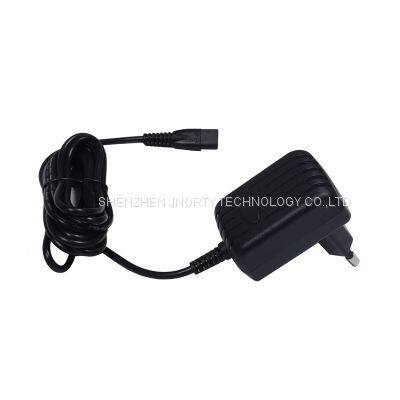

Clipper Charger 5V 1A AC/DC Adapters With TUV GS CE Certification 5V1A Charger for Electric Shear Cosmetic Instrument photo-2

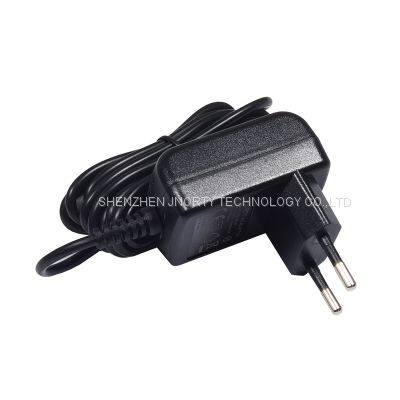

Clipper Charger 5V 1A AC/DC Adapters With TUV GS CE Certification 5V1A Charger for Electric Shear Cosmetic Instrument photo-3

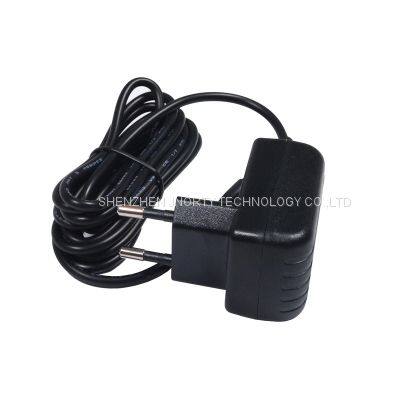

Clipper Charger 5V 1A AC/DC Adapters With TUV GS CE Certification 5V1A Charger for Electric Shear Cosmetic Instrument photo-4
Clipper Charger 5V 1A AC/DC Adapters With TUV GS CE Certification 5V1A Charger for Electric Shear Cosmetic Instrument photo-5
US$ 1.38 - 1.8 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
JNORTY
Place of Origin:
China
Model Number:
JDTA06E-050100
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
15 days
Brand Name JNORTY
Place of Origin China
Model Number JDTA06E-050100
Connection Plug In
Output Type AC

6W  EU AC Plug Clipper charger

Specification Parameter:
1,Input condition:
     Rated input voltage: 100V-240Vac
     Input voltage range: 90V-264Vac
     Rated input frequency: 50/60Hz  +/-3Hz


2,Output Characteristics:
     Rated output power: 6w Series
     Output voltage range: 3-15Vdc
     Output voltage error range: +/-5%
     Output current range: 0.1-1.2A

3,Protection Function:
    (1). Short-circuit current protection;
    (2). Overvoltage protection;
    (3) .Overcurrent protection;

4,Environment Requirements:
     Operating Temperature: 0ºC to +40ºC
     Operating Relative Humidity: 0%RH to 90%RH
     Storage Temperature: -20ºC to +80ºC
     Storage Relative Humidity: 5%RH to 95%RH non-condensing

5,Product Features:
    (1). High temperature fire resistant and flame retardant shell material is used.
    (2). Voltage stabilization mode;
    (3). IC electric design, stable performance, safe and reliable;
    (4). High efficiency, low no-load power consumption, energy saving and environmental protection;

6.Apply to:

   Lighting, toys,motors,fans,CCTV camera, electronics products....

7.specification parameter:

                                                                              Parameter:
Input/OutputInput: AC100-240V 50/60Hz 0.2A
Output: DC3V-15V / 0.1A-1.2A  6W(Max)
Output  Voltage
(V)
3.0V3.3V4.2V4.5V5V
5.5V
6V7.5V9V10V11V12V14V15V
Current  Output
(A)
0.5A
1.0A
1.2A
0.5A
1.0A
1.2A
0.5A
1.0A
1.2A
0.5A
1.0A
1.2A
0.5A
1.0A
1.2A
0.5A
0.8A
1.0A
0.3A
0.5A
0.8A
0.3A
0.5A
0.65A
0.3A
0.5A
0.6A
0.3A
0.4A
0.5A
0.3A
0.4A
0.5A
0.2A
0.3A
0.4A
0.2A
0.3A
0.4A


8. Safety Certificate:

9.  Introduction of the factory:


Product Tags: Clipper Charger , GS CE Power Adaptor , Electric shear Charger
