3V 4.2V 5V 6V 7.5V 9V 10V 12V 15V Power Adaptor EU Plug With GS CE ROHS Authentication AC/DC Adapters for CCTV LED Hair Cilpper

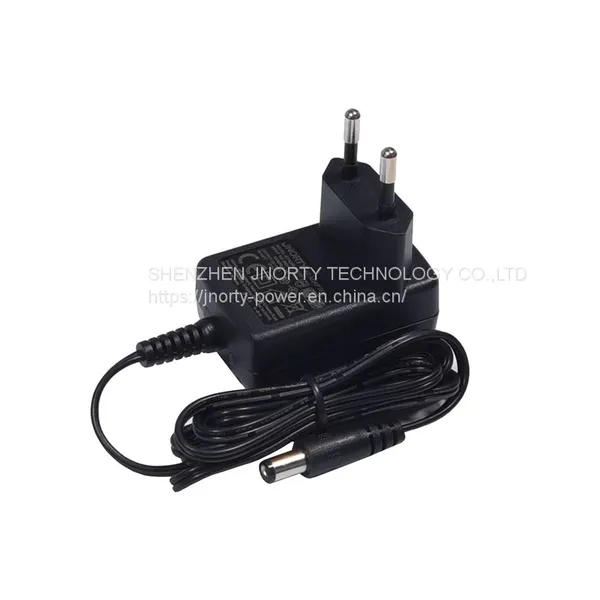

3V 4.2V 5V 6V 7.5V 9V 10V 12V 15V Power Adaptor EU Plug With GS CE ROHS Authentication AC/DC Adapters for CCTV LED Hair Cilpper photo-1

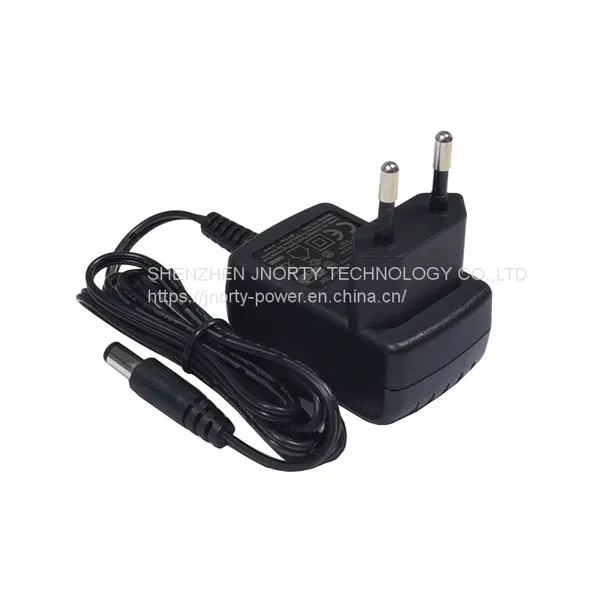

3V 4.2V 5V 6V 7.5V 9V 10V 12V 15V Power Adaptor EU Plug With GS CE ROHS Authentication AC/DC Adapters for CCTV LED Hair Cilpper photo-2

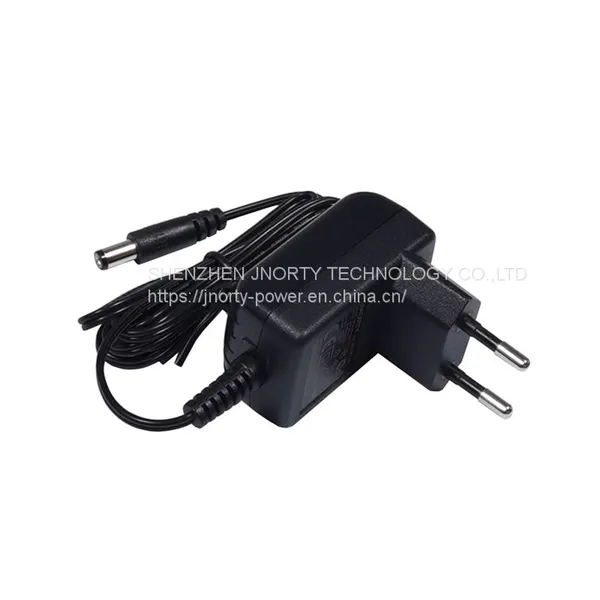

3V 4.2V 5V 6V 7.5V 9V 10V 12V 15V Power Adaptor EU Plug With GS CE ROHS Authentication AC/DC Adapters for CCTV LED Hair Cilpper photo-3
3V 4.2V 5V 6V 7.5V 9V 10V 12V 15V Power Adaptor EU Plug With GS CE ROHS Authentication AC/DC Adapters for CCTV LED Hair Cilpper photo-4
US$ 1.38 - 1.8 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
JNORTY
Place of Origin:
China
Model Number:
JDTA06E-050100
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
15 days
Brand Name JNORTY
Place of Origin China
Model Number JDTA06E-050100
Connection Plug In
Output Type AC

6W EU Plug AC/DC ADAPTERS

Specification Parameter:


1,Input condition:
     Rated input voltage: 100V-240V ac
     Input voltage range: 90V-264V ac
     Rated input frequency: 50/60Hz  +/-3Hz


2,Output Characteristics:
     Rated output power: 6W  Max
     Output voltage range: 3-15Vdc
     Output voltage error range: +/-5%
     Output current range: 0.1-1.2A


3,Protection Function:
    (1). Short-circuit current protection;
    (2). Overvoltage protection;
    (3) .Overcurrent protection;


4,Environment Requirements:
     Operating Temperature: 0ºC to +40ºC
     Operating Relative Humidity: 0%RH to 90%RH
     Storage Temperature: -20ºC to +80ºC
     Storage Relative Humidity: 5%RH to 95%RH non-condensing


5,Product Features:
    (1). High temperature fire resistant and flame retardant shell material is used.
    (2). Voltage stabilization mode;
    (3). IC electric design, stable performance, safe and reliable;
    (4). High efficiency, low no-load power consumption, energy saving and environmental protection;


6. Parameter List:

Parameter:
INPUT Input:AC100-240V 50/60Hz 0.2A
Output:DC3V-15V 0.1A-1.2A  6W(Max)
Output
Voltage
(V)
3V 3.3V 4.2V 4.5V 5V 6V 7.5V 8V 9V 10V 12V 14V 15V
Current
Output
(A)
0.33A
0.5A
1.0A
1.2A
0.5A
1.0A
1.2A
0.5A
0.7A
1.0A
1.2A
0.5A
0.7A
1.0A
1.2A
0.3A
0.5A
0.6A
0.8A
1.0A
1.2A
0.3A
0.5A
1.0A
0.5A
0.6A
0.8A
0.5A
0.6A
0.7A
0.3A
0.5A
0.65A
0.3A
0.4A
0.5A
0.6A
0.3A
0.4A
0.5A
0.2A
0.3A
0.4A
0.2A
0.3A
0.4A

7.Apply to:

   Lighting, toys,motors,fans,CCTV camera, electronics products,Hairdressing and beauty....


8. Safety Certificate:

9.  Introduction of the factory:


Product Tags: LED Power adaptor , CCTV Switching Power Supply , Hair cilpper Charger
