op selling popular professional piston automatic filling machine ketchup stick filling machine chilli sauce filling machine

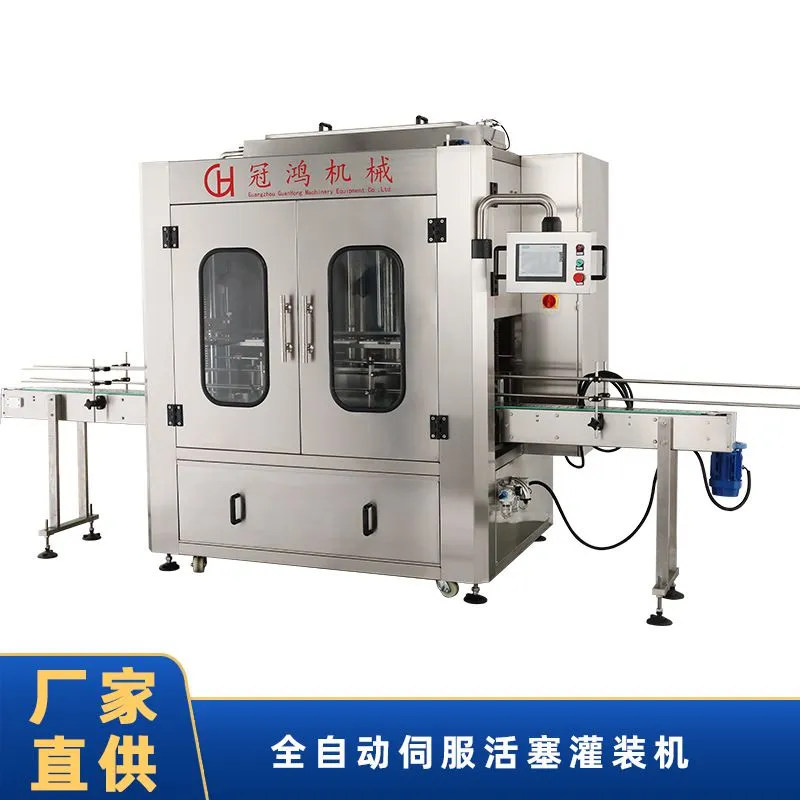

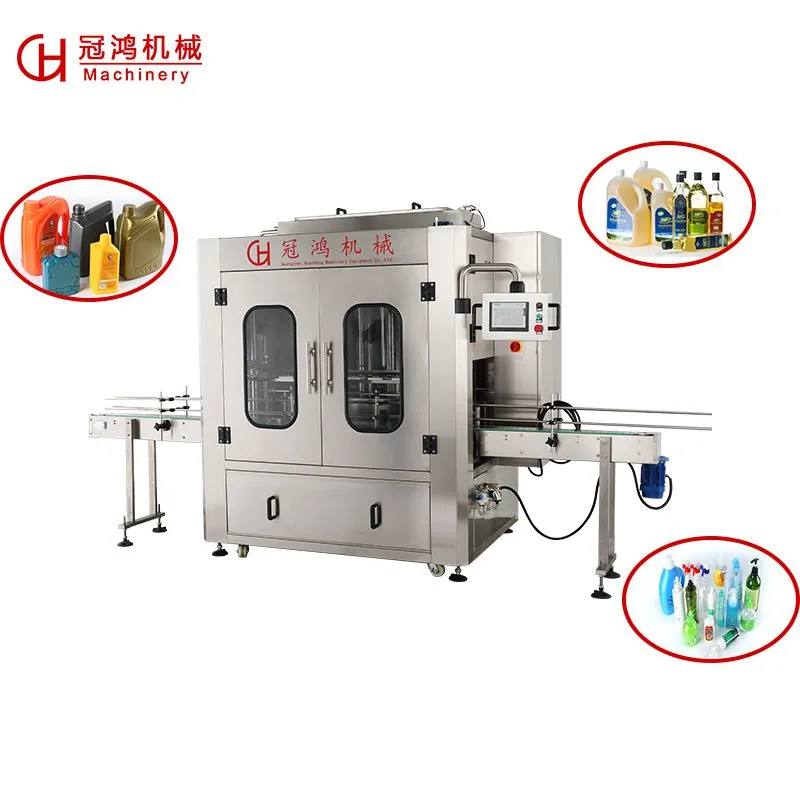

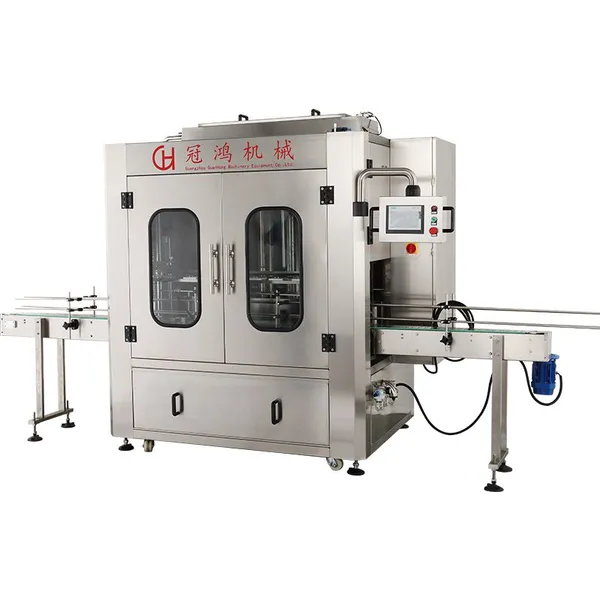

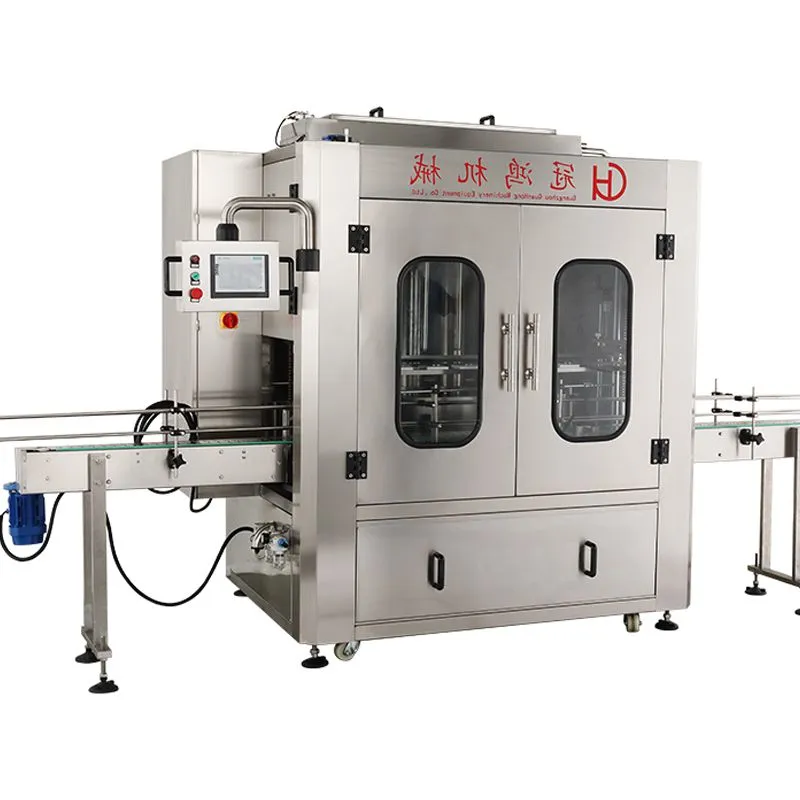

Automatic servo piston filling machine

Equipment Overview:

Automatic servo piston type filling machine， adopts gas-electric integrated touch screen with PLC system control, which has a high degree of automation, simple and convenient operation, and high filling accuracy. And with each filling head can be individually controlled to adjust the filling accuracy characteristics, prolong equipment using life and flexibility. This equipment is widely used in food, daily chemical, chemical and Medical industries. Such as: chili sauce, cooking oil, shampoo, lubricants, cough syrup and other products.

Technical Parameters:

Production capacity: Customized 4,6,8,10,12,14,16 heads

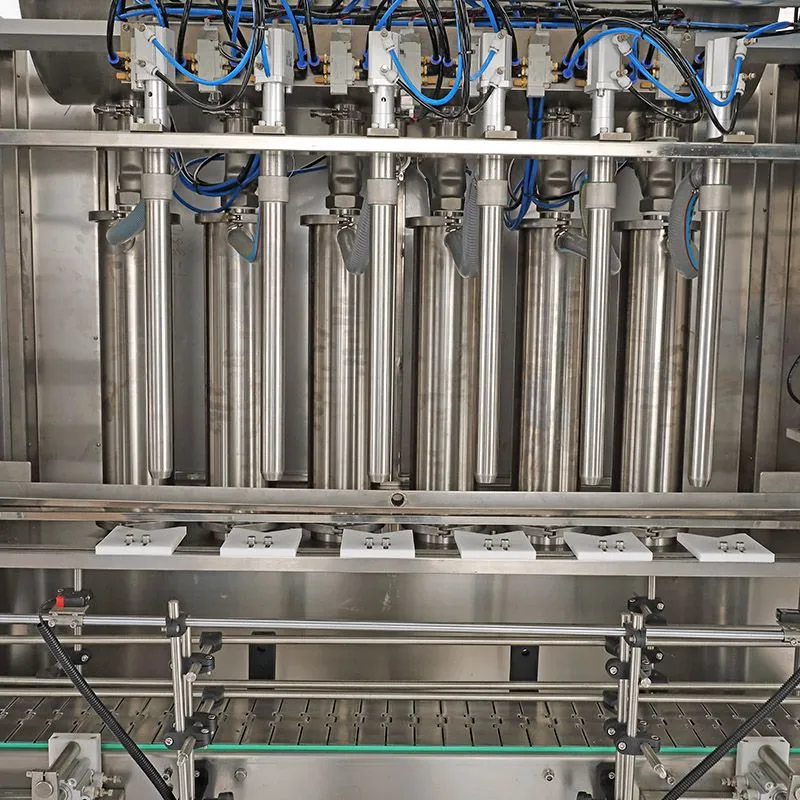

Filling method: servo piston quantitative filling

Filling capacity: 500~1000ml 1000~4000ml 5000ml

Filling accuracy: ±1%

Air pressure: 0.6-0.8MPa

Power: 1.5KW/AC220V 50/60HZ
