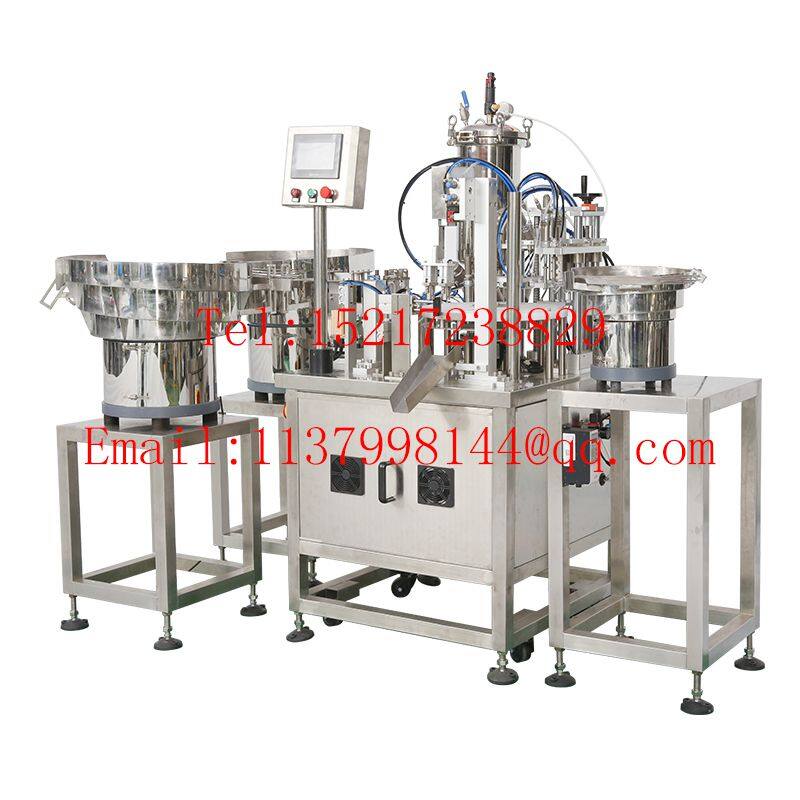

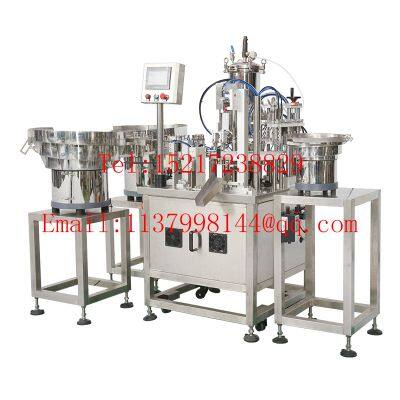

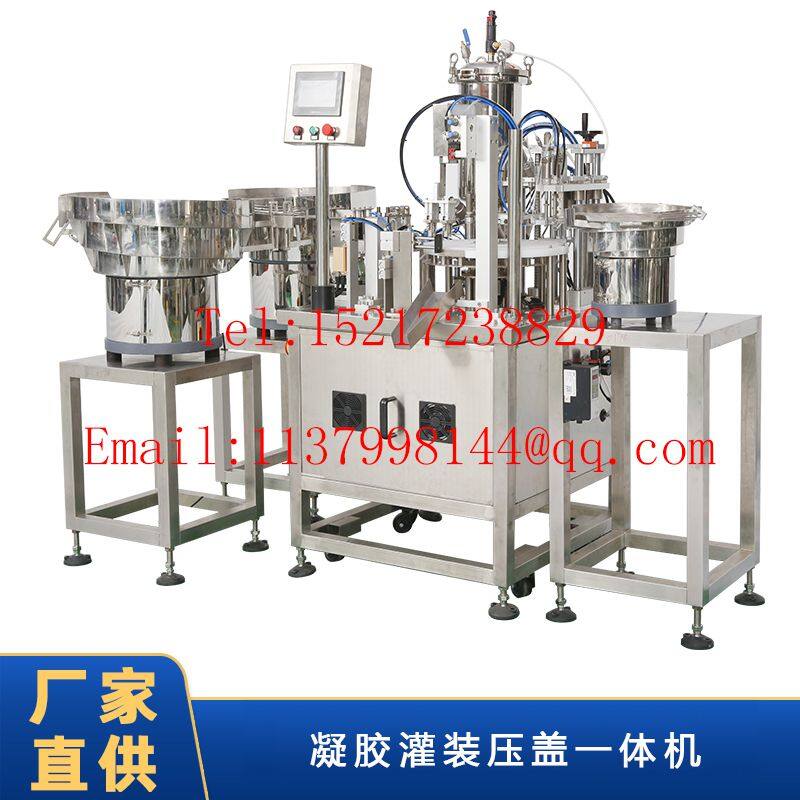

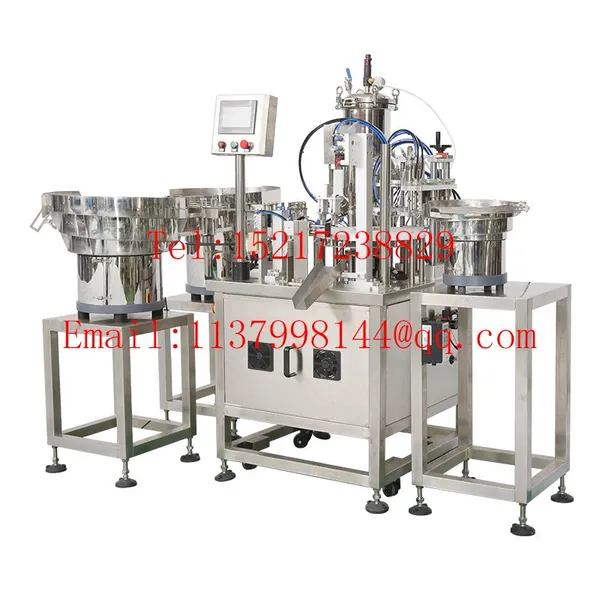

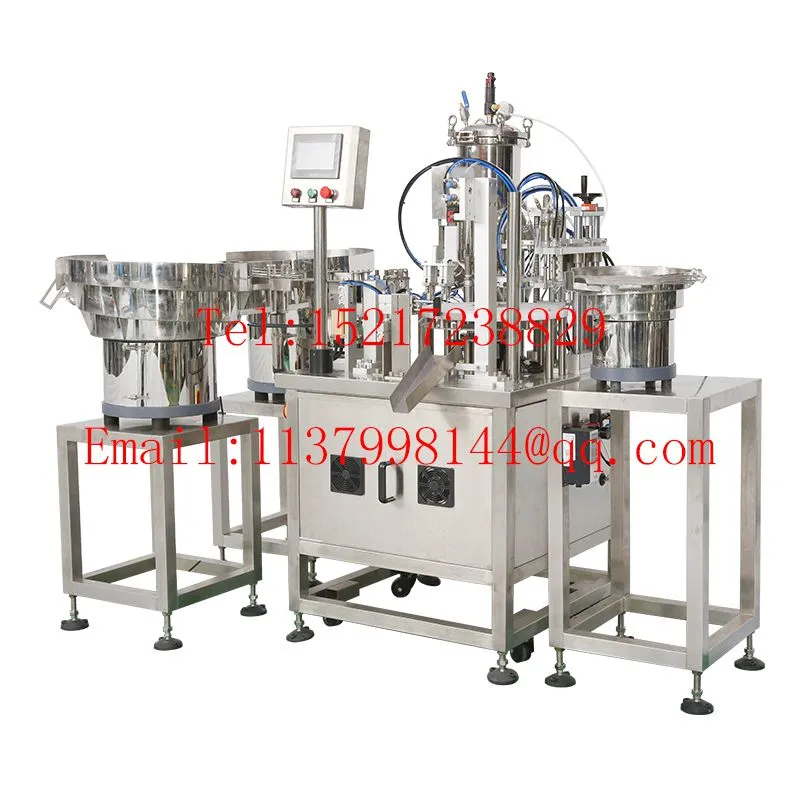

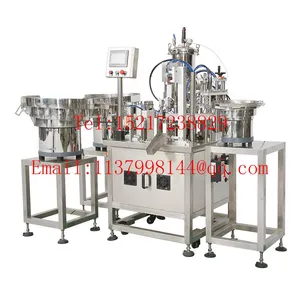

Automatic gel tube machine
This equipment is gel filling machine independently researched and developed by our company. It has independent intellectual property rights and the device patent number is: ZL 2017 2 0175862.7 This model adopts integrated gas and electric power system and PLC system control. It is easy to operate and is fully accord with GMP in China. It is the most ideal gel filling equipment. The equipment adopts servo piston type quantitative filling, which has high filling precision and can minimize the bubbles of the gel itself and achieve aesthetic effect. The equipment can also fill thinner materials at the same time and can also fill thicky materials, effectively solving the trouble of fill thicky materials, which OEM/ODM can't achieve.
Technical Parameters:
Filling number: 2
Under cover number: 2
Capping head number: 2
Suitable for bottle type: four sets of gel round tube or flat tube
Filling capacity: 3~5g
Filling form: servo-driven piston filling
Arrange cap form: electromagnetic vibrating plate (vibration plate and guide rail need to be replaced in different specifications)
Down cap form: pneumatic lower cover
Press Cap type: pneumatic cap
Production speed: 1600 bottles/hour
Filling accuracy: ±1%
Machine power: about 2KW
Program control: PLC with touch screen human-machine interface
Body material: The rack uses 304# stainless steel, and touch material parts use 304# stainless steel and silicone tube.
Trough capacity: about 30L
Air pressure: 0.6-0.8MPa
Source: AC220V 50/60HZ
Equipment size: L2700×W1300×H1500mm
