Assen 2000-18000L/h ZYD Double Stage High Vacuum Transformer Oil Purification Plant, Insulating Oil Clean

Assen 2000-18000L/h ZYD Double Stage High Vacuum Transformer Oil Purification Plant, Insulating Oil Clean thumbnail-1
Assen 2000-18000L/h ZYD Double Stage High Vacuum Transformer Oil Purification Plant, Insulating Oil Clean thumbnail-2
Assen 2000-18000L/h ZYD Double Stage High Vacuum Transformer Oil Purification Plant, Insulating Oil Clean thumbnail-3
Assen 2000-18000L/h ZYD Double Stage High Vacuum Transformer Oil Purification Plant, Insulating Oil Clean photo-1
Assen 2000-18000L/h ZYD Double Stage High Vacuum Transformer Oil Purification Plant, Insulating Oil Clean photo-2

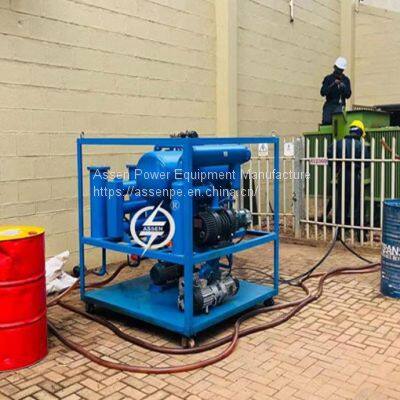

Assen 2000-18000L/h ZYD Double Stage High Vacuum Transformer Oil Purification Plant, Insulating Oil Clean photo-3
US$ 8800 - 16800 MOQ: 1 Cubic Meter
Key Specifications
Get Latest Price
Brand Name:
ASSEN
Place of Origin:
China
Model Number:
ZYD
Contact Supplier Request Quote Chat Now
Assen Power Equipment Manufacture
Payment & Shipping
Payment Methods:
Port of Shipment:
CHONGQING
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ASSEN
Place of Origin China
Model Number ZYD
Certification iso9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 500kg
Dimension(L*W*H) 1580*1030*1480
Voltage Three Phase 50HZ 380V(or as needs)
Usage Transformer Oil
Condition New
Power(W) 22-135
Working Pressure ≤0.4 Mpa
Flow 2000-18000

ASSEN ZYD Transformer Oil Filtration Machine equips Chinese reliable brand vacuum pump which is economy and good quality, it can fast remove moisture, gas, and particles from transformer oil, mutual induct oil, cable oil, and circuit breaker oil, and restore property of insulating oil. also internation brand vacuum pump is supported.

Application:
The ZYD transformer oil filtration machine can remove the water, gas, and impurities in insulation oil fast and effeciently, increasing the pressure force and quality of oil, make sure the electric device running safely. The machine is mainly used by electric power departments and industries to deal with various oils such as transformer oil, mutual oil, switch oil, freezer oil, and so on. it can save your cost of transformer oil and also your human consumption


After treatment the oil are gaurantted the following standard,
Water Removal: Overall Water Content ≤5 PPM by removing free, emulsified, and dissolved water.
Particulate Removal: Particle counts as low as 1 micron.
Entrained Air and Gas Removal ≤ 0.3%
Acid Removal: can be equipped with fullers earth towers to neutralize acid and Lower TAN to
Dielectric Strength:≥75kV per ASTM 877

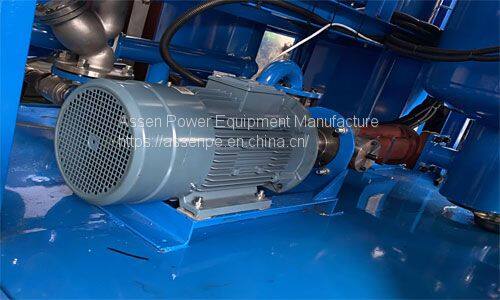

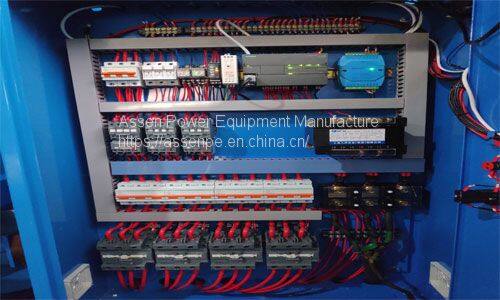

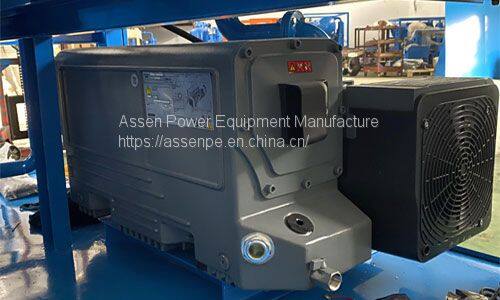

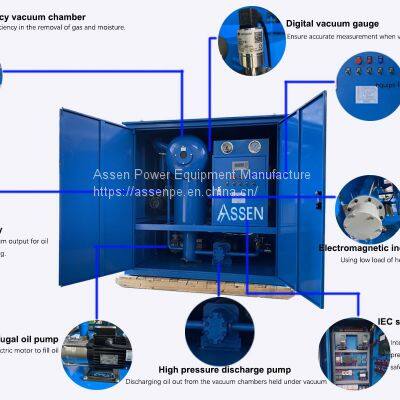

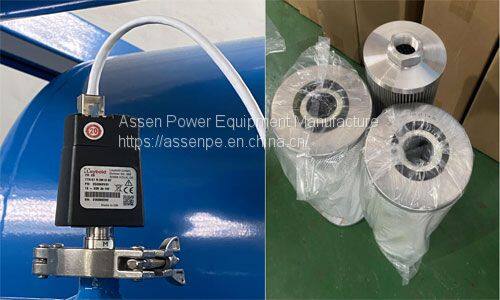

Main parts of Assen ZYD transformer oil purification machine


Transformer Oil Filtration Machine's Technical Data

Parameters Unit ZYD-35 ZYD-50 ZYD-100 ZYD-150 ZYD-200 ZYD-250 ZYD-300
Flow L/Hr 2000 3000 6000 9000 12000 15000 18000
Working vacuum Mpa -0.08 ～ -0.099
Working Pressure Mpa ≤0.4
Temperature Range ℃ 0 ～ 100
Power
Three Phase 50HZ 380V(or as needs)
Working hours without Trouble Hour 4000
Continuous Working Hours Hour 150
Working Noise dB（A） 75 75 75 80 80 80 80
Heating Power KW 16 30 45 60 75 90 120
Total Power KW 22 37.5 52.5 71.4 86.5 102.5 135
Inlet/Outlet mm φ25 φ32 φ42 φ50 φ50 φ60 φ60
Weight Kg 750 850 1150 1150 1450 1600 2200
Overall Length mm 1380 1480 1880 1980 2100 2300 2550
Width mm 1300 1450 1860 1960 2060 2200 2490
Height mm 1350 1450 1850 1950 2050 2280 2520
