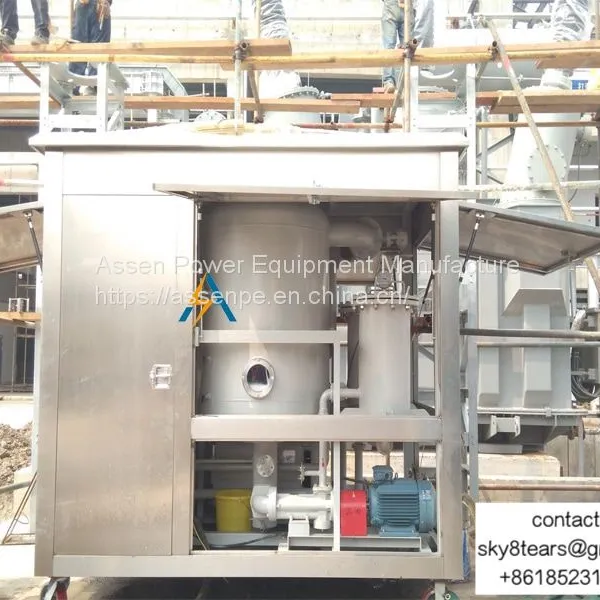

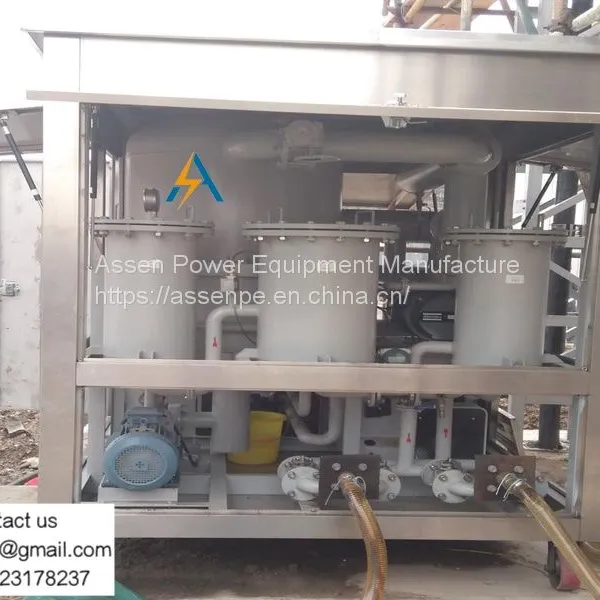

Help CenterASSEN ZUD ULTRA-HIGH VOLTAGE TRANSFORMER OIL PURIFICATION MACHINE
Related Products
-
Assen Plate Pressure Oil Purifier System PlantUS$ 1999 - 3999MOQ: 1 Cubic Meter -
ASSEN PHOSPHATE ESTER FIRE-RESISTANT HYDRAULIC OIL FILTRATION PLANTUS$ 8800 - 12500MOQ: 1 Cubic Meter
-
Assen ZYD-E Transformer Oil Treatment Plant Transformer Oil PurificationUS$ 5500 - 15800MOQ: 1 Cubic Meter
-
ASSEN SIEMENS PLC ASSEMBLED HI-VACUUM TRANSFORMER OIL REGENERATION PLANTUS$ 8800 - 16800MOQ: 1 Cubic Meter
-
Assen TY Turbine Oil Purifier MachineUS$ 8800 - 15800MOQ: 1 Cubic Meter
Introduction
ZUD Ultra high voltage transformer oil filtration machine is especially for ultra-high voltage project as ( 1000KV, ±800KV, 750KV, ±660KV) Substation Maintenance Contractors and Utilities need an oil filtration machine that can rapidly and reliably process transformer oil to meet or exceed very stringent specifications; In order to achieve optimal dielectric strength and insulating performance inside of transformers and circuit breakers, dielectric oils must be kept absolutely clean and dry
ZUD Transformer Oil Filtration Machine's Technical Parameters
| Item | Parameter | Type Unit |
ZUD-100 | ZUD-150 | ZUD-200 | ZUD-300 | |
| Technical parameter | Flow Rate | L/H | 6000 | 9000 | 12,000 | 18,000 | |
| Working Vacuity | Pa | ≤20 | |||||
| Limit vacuity | Pa | ≤3 | |||||
| Working pressure | Mpa | ≤0.5 | |||||
| TemperatureRange | °C | 45-65 | |||||
| Power Supply | 50Hz 380V 3-Phase 4-Wire (or as required) | ||||||
| Noise | dB(A) | ≤70 | |||||
| Continues running time | Hour | ≥200 | |||||
| No problem running time | Hour | ≥5,000 | |||||
| Total Power | KW | 2X30+6.6 | 3X30+8.2 | 45*3+10 | 5X30+16.5 | ||
| Inlet/Outlet Diameter | mm | 44 / 38 | 48 / 44 | 50 / 50 | 76 / 64 | ||
| Size | Length | mm | 1870 | 1930 | 2850 | 2250 | |
| Width | mm | 1250 | 1400 | 2050 | 1750 | ||
| Height | mm | 2200 | 2460 | 2600 | 2650 | ||
| Weight | Kg | 1200 | 1600 | 2200 | 3000 | ||
After treatment by ZUD transformer oil filtration plant
Index after purification (test at oil-outlet of the machine) :
water content≤ 5ppm
gas content≤0.1%( by volume)
acetylene content:0
breakdown voltage≥75KV (Spherical polar)
particle qty in 100ml oil≤500 (5-50 micron), (0 for ≥100 micron particle).
dielectric loss tgδ≤0.3% (90°C)
acid value ≤0.1mgKOH/g
Contact information
Sky ZHOU
Email: sky8tears@gmail.com
Tel/whatsapp +8618523178237
