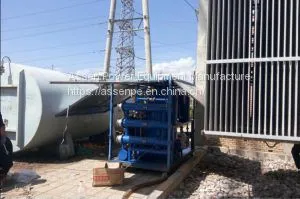

Help CenterASSEN SIEMENS PLC ASSEMBLED HI-VACUUM TRANSFORMER OIL REGENERATION PLANT
Related Products
-
Assen TY Turbine Oil Purifier MachineUS$ 8800 - 15800MOQ: 1 Cubic Meter -
Assen 2000-18000L/h ZYD Double Stage High Vacuum Transformer Oil Purification Plant, Insulating Oil CleanUS$ 8800 - 16800MOQ: 1 Cubic Meter
-
Assen 6000 L/HR PORTABLE TRANSFORMER OIL FILTRATION SYSTEM,OIL DEHYDRATION UNIT TRANSFORMER MAINTEINANCEUS$ 8800 - 12500MOQ: 1 Cubic Meter
-
ISO Approval Fire-resistance Engine Oil Filter, Mineral Oil Purification MachineUS$ 5500 - 12500MOQ: 1 Cubic Meter
-
Fuller Earth Type Transformer Oil Purifier and Acid Remove Machine for Transformer MaintenanceUS$ 5500 - 12500MOQ: 1 Metric Ton

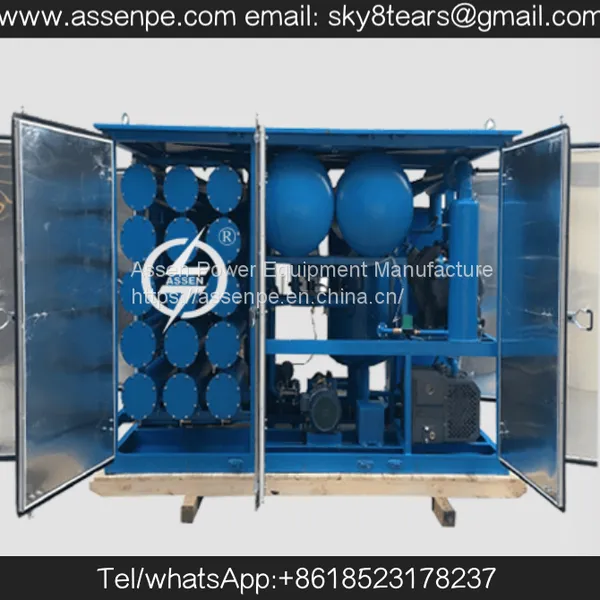

ASSEN ZYD-I Transformer Oil Regeneration system is specially designed for outdoor use to completely regenerate insulating oils in de-energized transformers. expect for providing regular oil purification such as degassing, drying and particulate removal, it also can remove acidity, sludge, free carbon and other soluble oil decay products and discoloration. After treatment, the oil can be reused as new.
Performance:
In a single pass through the purifier at a full flow rate:
Water Removal: From 50 ppm down to less than 5 ppm in a single pass & down to 3 ppm after two passes. (According to the PPM Tester)
Gas Removal: From fully saturated with air (10% to 12% by volume) down to no more than 0.1% by volume.
Particulate Matter Removal: 98% of particles over 0.5mm or over 1 mm or over 5mm at customers preference.
Dielectric Strength: Improve dielectric strength up to 75-80KV for New oil.
Acid Removal: after treatment, the acid value will down to less than 0.1mgKOH/g
Free Carbon Removal: there is no free carbon’s residue
Transformer Oil Regeneration Machine‘s Technical Parameters:
| Parameters | Unit | ZYD-I-30 | ZYD-I-50 | ZYD-I-100 | ZYD-I-150 | ZYD-I-200 | ZYD-I-250 | ZYD-I-300 | |
| Flow | L/min | 30 | 50 | 100 | 150 | 200 | 250 | 300 | |
| Working vacuum | MPa | 0.08 ～ 0.099 | |||||||
| Working Pressure | MPa | ≤0.3 | |||||||
| Temperature Range | ℃ | 20 ～ 80 | |||||||
| Power | Three Phase 50HZ380V(as per the customer’s requirements) | ||||||||
| Working Noise | dB（A） | 75 | 75 | 75 | 80 | 80 | 80 | 80 | |
| Heating Power | kW | 30 | 30 | 45 | 60 | 75 | 90 | 120 | |
| Total Power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 | |
| Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
| Weight | kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 | |
| Overall | Length | mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
| Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 | |
| Height | mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 |
|
