Duplex Hydraulic Oil Change-Over Inline Filter

Duplex Hydraulic Oil Change-Over Inline Filter thumbnail-1
Duplex Hydraulic Oil Change-Over Inline Filter thumbnail-2
Duplex Hydraulic Oil Change-Over Inline Filter thumbnail-3
Duplex Hydraulic Oil Change-Over Inline Filter thumbnail-4
Duplex Hydraulic Oil Change-Over Inline Filter thumbnail-5
Duplex Hydraulic Oil Change-Over Inline Filter photo-1

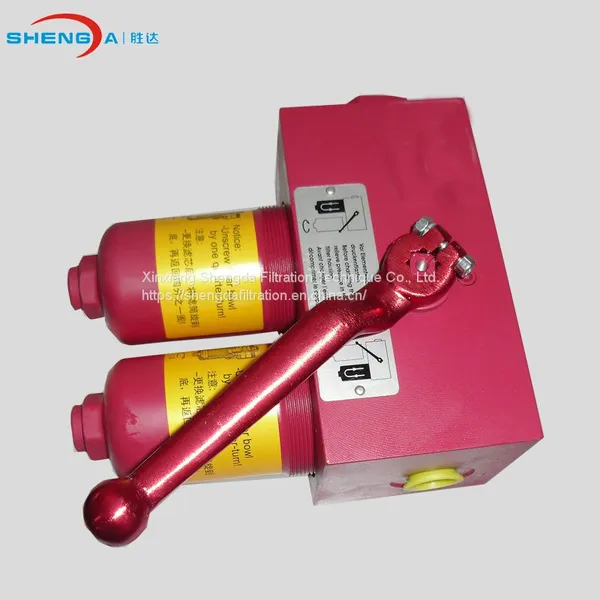

Duplex Hydraulic Oil Change-Over Inline Filter photo-2

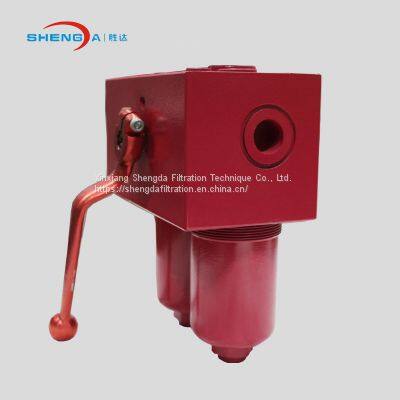

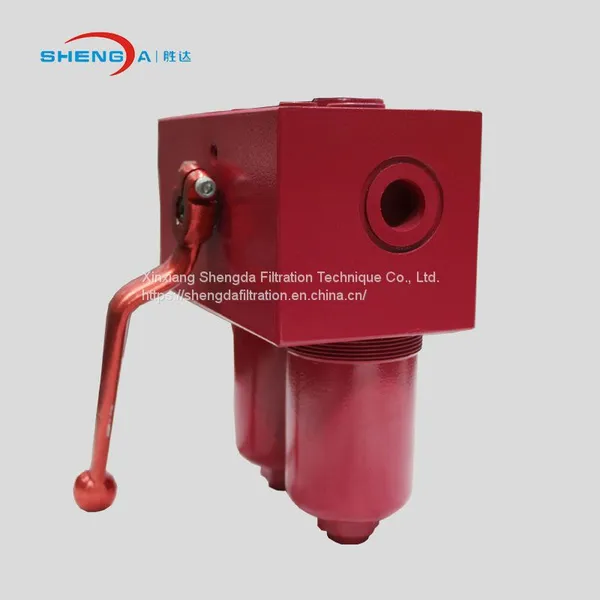

Duplex Hydraulic Oil Change-Over Inline Filter photo-3

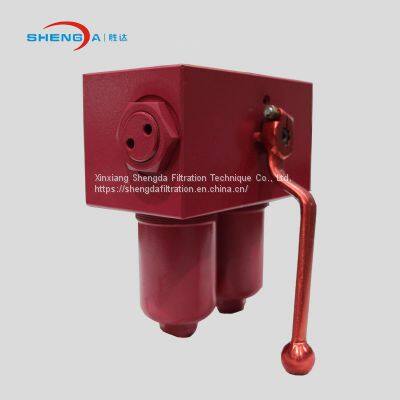

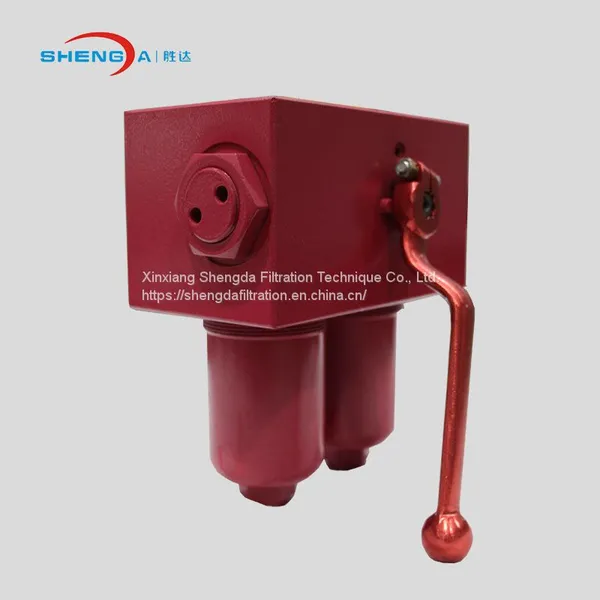

Duplex Hydraulic Oil Change-Over Inline Filter photo-4

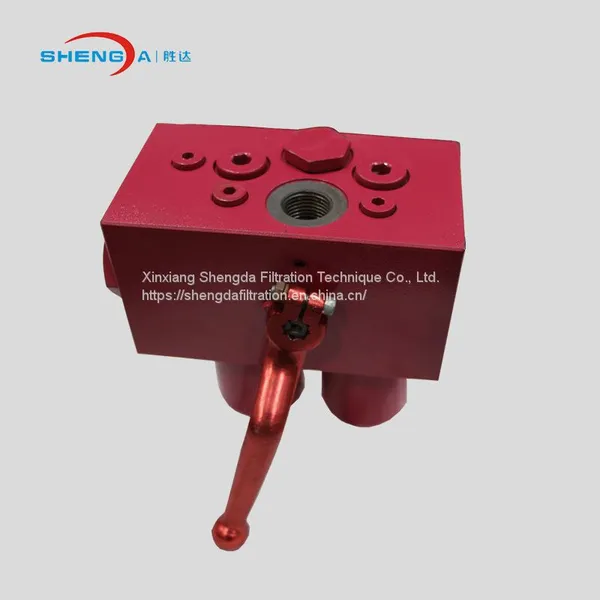

Duplex Hydraulic Oil Change-Over Inline Filter photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Shengda
Place of Origin:
China
Model Number:
SDDFDKBN/HC160QAF10A1.X/-V
Contact Supplier Request Quote Chat Now
Xinxiang Shengda Filtration Technique Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai;Tianjin; Qingdao
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shengda
Place of Origin China
Model Number SDDFDKBN/HC160QAF10A1.X/-V
Type Press Filter
After-sales Service Provided Engineers available to service machinery overseas
Weight differnt
Dimension(L*W*H) customized
Condition New

Change-over Inline Filter (SDFMND)

---with filter element in accordance with DIN 24550

---up to 400 l/min

---up to 210bar

---material: GGG/steel


1.    Technical specification

1.1  Filter housing

Construction

Change-over inline filter consist of a filter head with a built-in change-over valve and screw-in filter bowls.

Standard equipment:

l   Without bypass valve

l   Connection for a clogging indicator

l   Oil drain plug

1.2  Filter elements

Max. Allowable D.P.:

BN/HC：20bar；  BH/HC: 210bar


2.    Description

Mounting inline filter
Temperature range  -10 °C to +100 °C
Pressure setting of the clogging indicator   5bar-10%(others on request)
Bypass cracking pressure   7bar+10%(others on request)
Seals  NBR (=Perbunan)

3. Notes

* Filter housings must be earthed.

* When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector.

* Filters with switching valve are designed to have a permissible leakage depending on the operating medium.


4.Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

Product Tags: duplex inline filter , inline duplex filter , inline oil filter , duplex inline filters , inline duplex filters , inline oil filters , hydraulic duplex filters , hydraulic duplex oil filters , hydraulic duplex filter
