HYDAC hydraulic oil tank top filter inline oil filter replacement
SDRF inline filter(Shengda brand), is mainly installed as the tank-top filter or inline filter, to remove the impurities like abrasives from the pipeline, in that way, to protect the oil tank, and prolong the life time.
Construction:
The filter housings are designed in accordance with international regulations.
They consist of a filter head with a threaded cover plate.
Standard equipment:
with bypass valve in the element. For SDRF 450/580 the bypass valve is built into the cover plate as standard.
connection for a clogging indicator
Filter Specification
Nominal Pressure |
25 bar |
Temperature Range |
-10°C to +100°C |
Material of filter housing and cover plate |
PA 66 Aluminium EN-GJS-400-15 Welded steel |
Type Of Clogging Indicator |
VR; VM |
Pressure Setting Of Clogging Indicator |
2 bar( others on request) |
Bypass Cracking Pressure (optional) |
3 bar(others on request) |
Seals |
NBR |
Mounting |
As tank-top or inline filter |
3. Application
It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

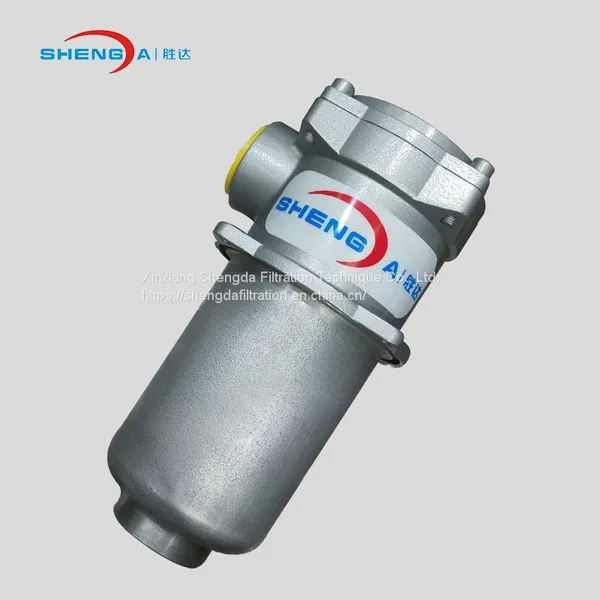

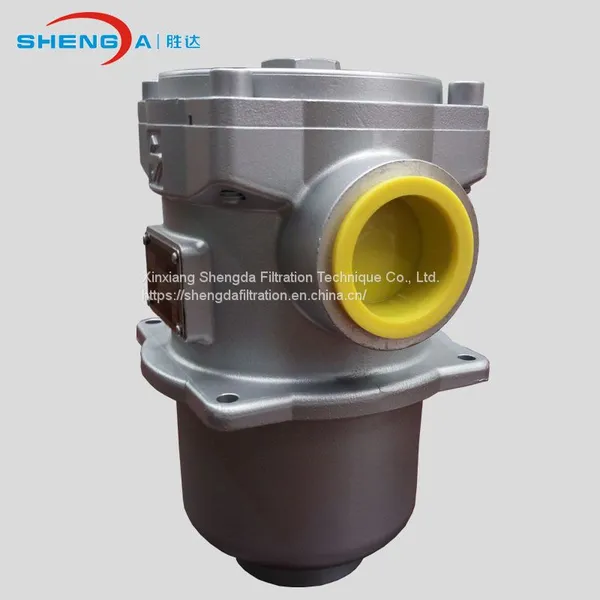

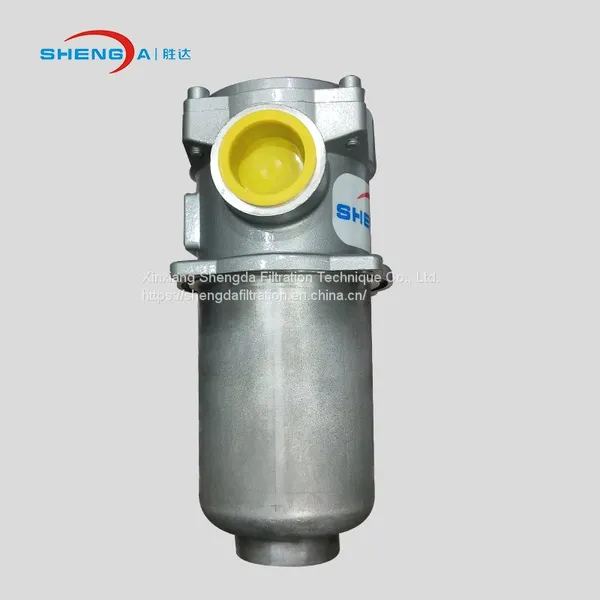

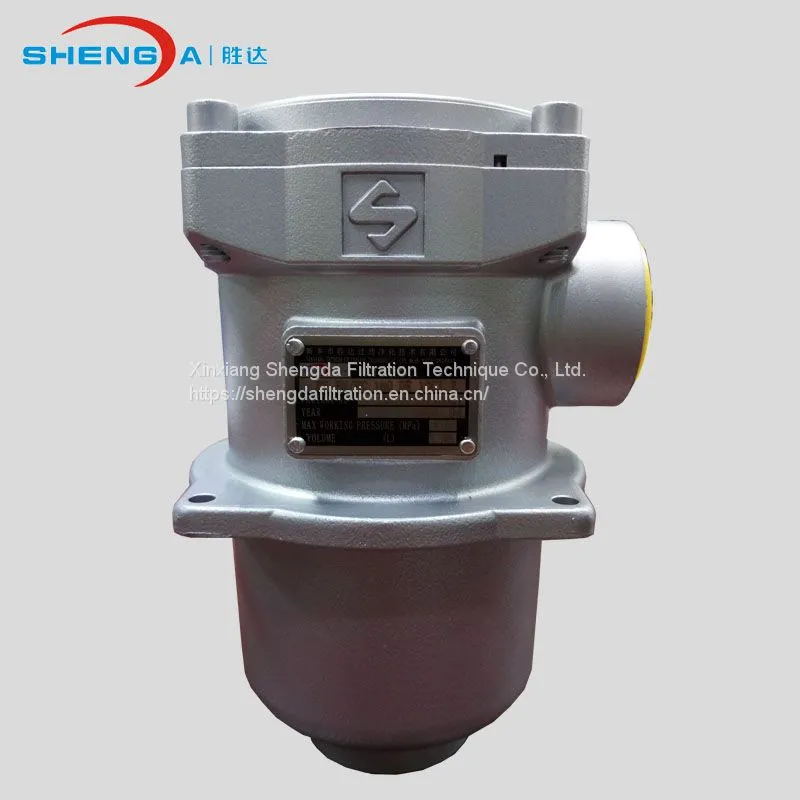

4. Photos
