Help CenterLow Pressure Oil Filter
Related Products
Low Pressure Inline Oil Filter
---up to 7000 L/min
---up to 100 bar
---material: aluminum
1. Introduction
Construction
The filter housings are designed in accordance with international regulations. They consist of a filter head and a screw-in filter bowl.
Standard equipment:
l connection for a clogging indicator in filter head
l mounting holes in the filter head
l drain screw with pressure relief (SDLF 330 and above)
Filter Element
Max. Allowable D.P.:
BN/HC：20bar； BH/HC: 210bar W/HC：20bar V: 210bar
2. Description
Mounting As inline oil filter
Temperature range - 30 ℃ ~ + 100 ℃
Pressure setting of clogging indicator △ Pa= 5bar -0.5bar (others on request)
Cracking pressure of bypass valve △ Po=6 bar+0.6bar (others on request)
Seals NBR (=Perbunan)
3. Notes
l Filter housings must be earthed.
l When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector.
4. Application
It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

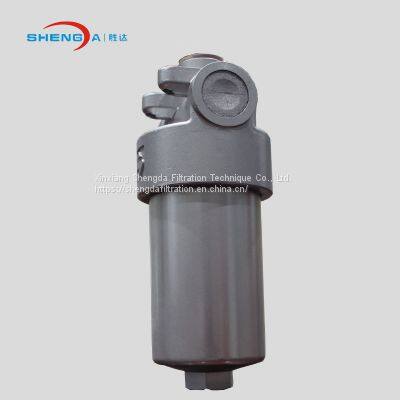

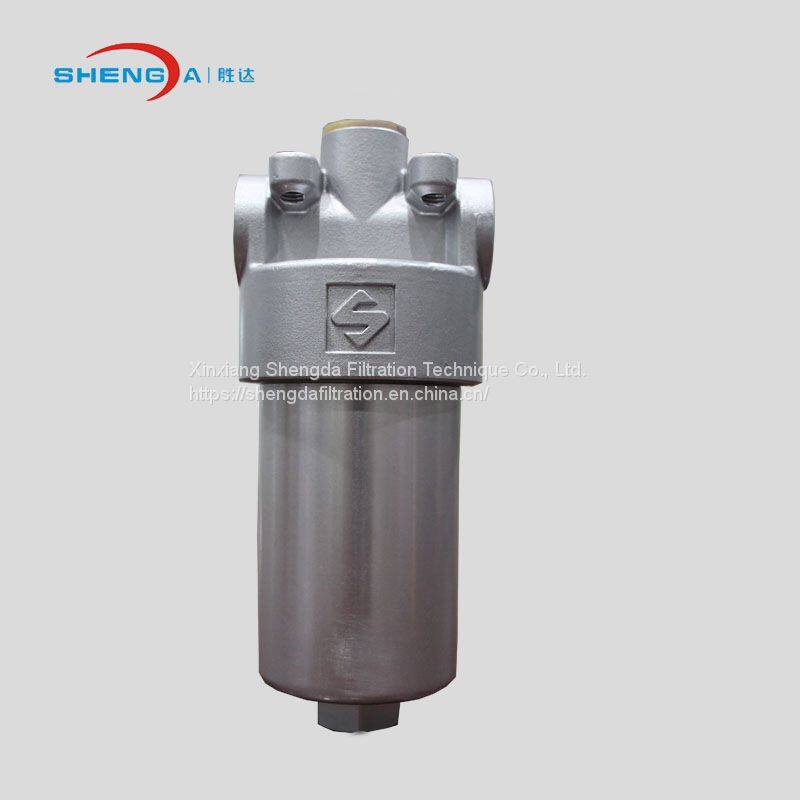

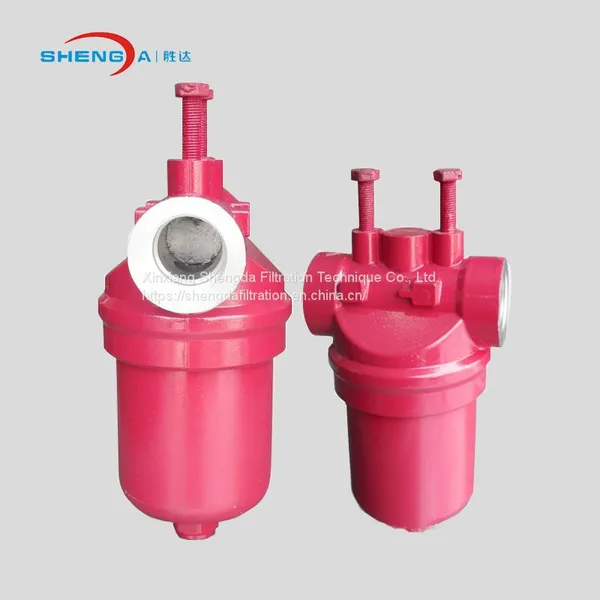

5. Photos
