Help CenterHydac Hydraulic Inline Oil Filter Replacement
Related Products
Hydraulic Inline Oil Filter(SDRFL)
---up to 1300 L/min
---up to 25/40 bar
---cast version
1. Construction
The filter housings are designed in accordance with international regulations. They consist of a two-piece filter housing with a bolt-on cover plate.
Standard equipment:
l connections for venting and draining
l connection for a clogging indicator
Filter Element
Max. Allowable D.P.:
BN/HC：20bar； P/HC: 10bar W/HC：20bar V: 210bar
2. Description
Mounting
Filters must be flexibly mounted and not fixed rigidly to the floor or used as a pipe support.
Temperature range - 10 ℃ ~ + 100 ℃
Pressure setting of clogging indicator △ Pa=2bar – 0.2bar (others on request)
Cracking pressure of bypass valve △ Po=3 bar + 0.5bar (others on request)
3. Application
It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

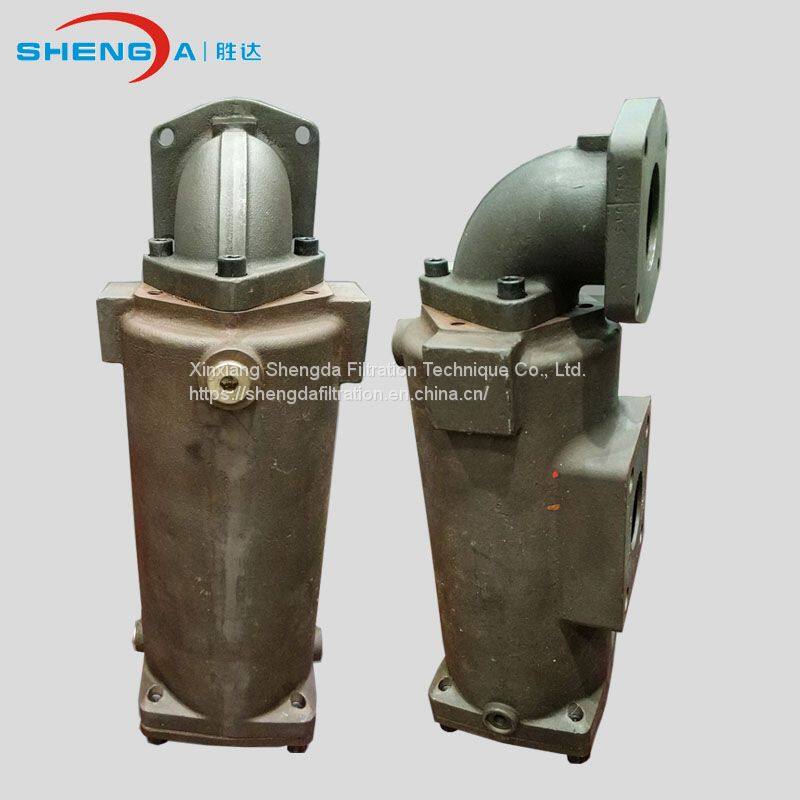

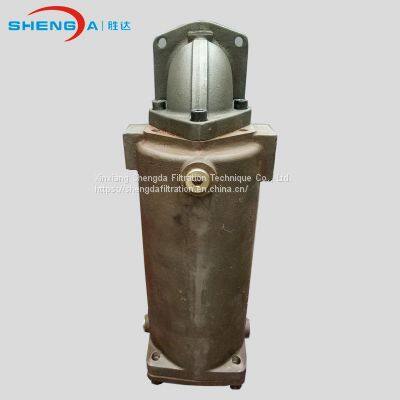

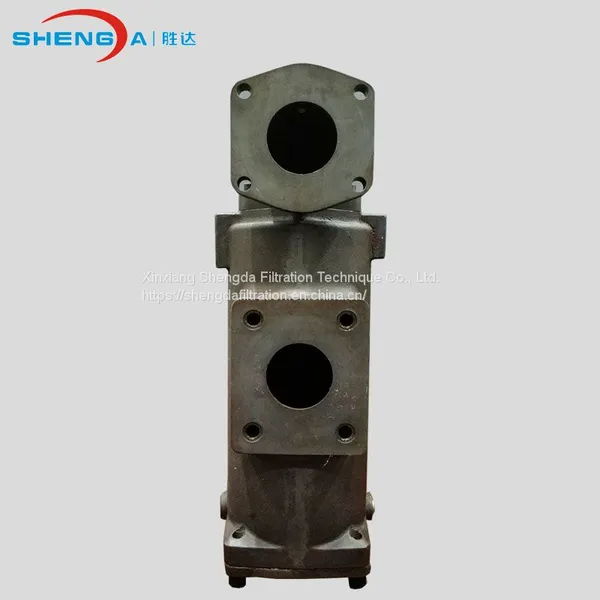

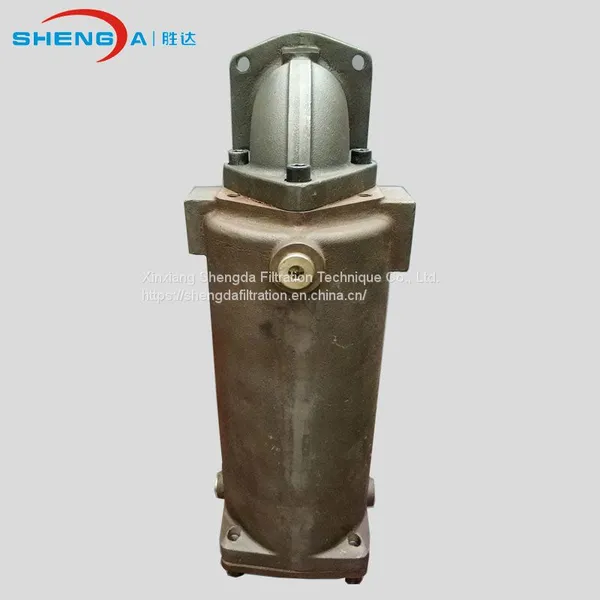

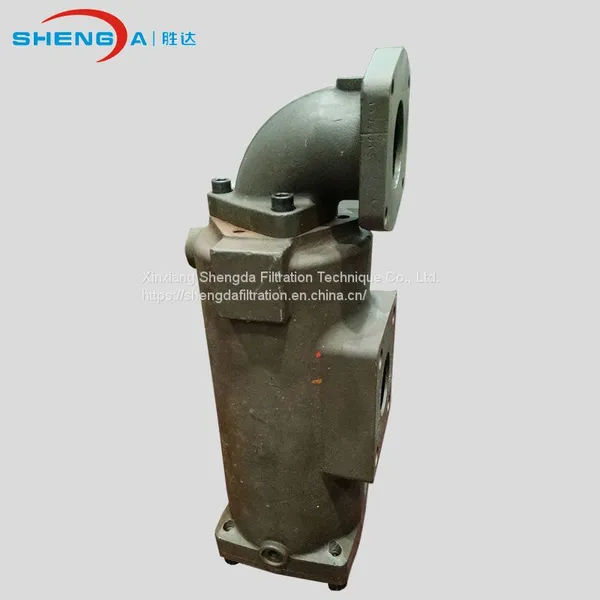

4. Photos
