HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement

HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement thumbnail-1
HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement thumbnail-2
HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement thumbnail-3
HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement thumbnail-4
HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement thumbnail-5
HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement photo-1
HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement photo-2
HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement photo-3
HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement photo-4
HYDAC Hydraulic Oil Tank Top Filter Inline Oil Filter Replacement photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Shengda
Place of Origin:
China
Model Number:
SDRFBN/HC330DL10D1.X/-L24
Contact Supplier Request Quote Chat Now
Xinxiang Shengda Filtration Technique Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai;Tianjin; Qingdao
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shengda
Place of Origin China
Model Number SDRFBN/HC330DL10D1.X/-L24
After-sales Service Provided Engineers available to service machinery overseas

HYDAC hydraulic oil tank top filter inline oil filter replacement


SDRF inline filter(Shengda brand), is mainly installed as the tank-top filter or inline filter, to remove the impurities like abrasives from the pipeline, in that way, to protect the oil tank, and prolong the life time.


Construction:

The filter housings are designed in accordance with international regulations.

They consist of a filter head with a threaded cover plate.

Standard equipment:

with bypass valve in the element. For SDRF 450/580 the bypass valve is built into the cover plate as standard.

connection for a clogging indicator

Filter Specification

Nominal Pressure

25 bar

Temperature Range

-10°C to +100°C

Material of filter housing and cover plate

PA 66

Aluminium

EN-GJS-400-15

Welded steel

Type Of Clogging Indicator

VR; VM

Pressure Setting Of Clogging Indicator

 2 bar( others on request)

Bypass Cracking Pressure (optional)

 3 bar(others on request)

Seals

 NBR

Mounting

 As tank-top or inline filter

 3. Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

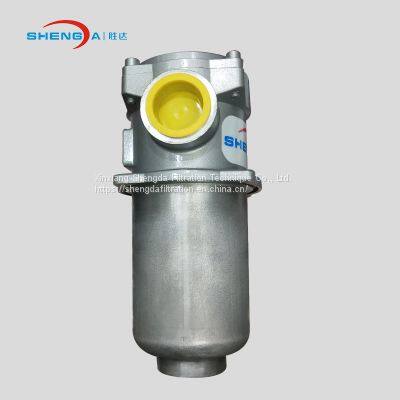

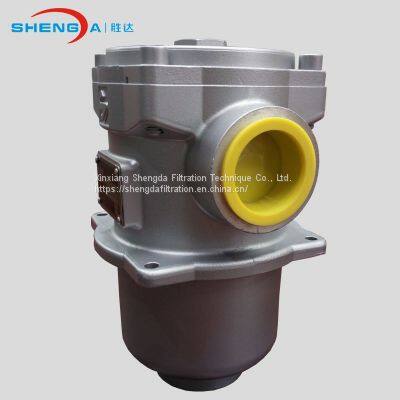

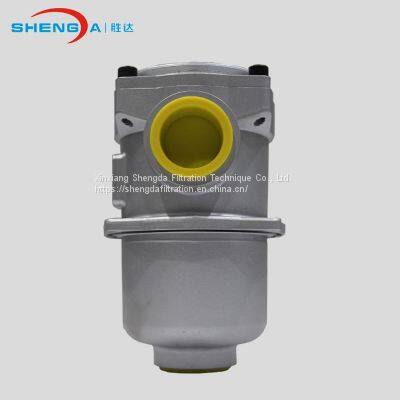

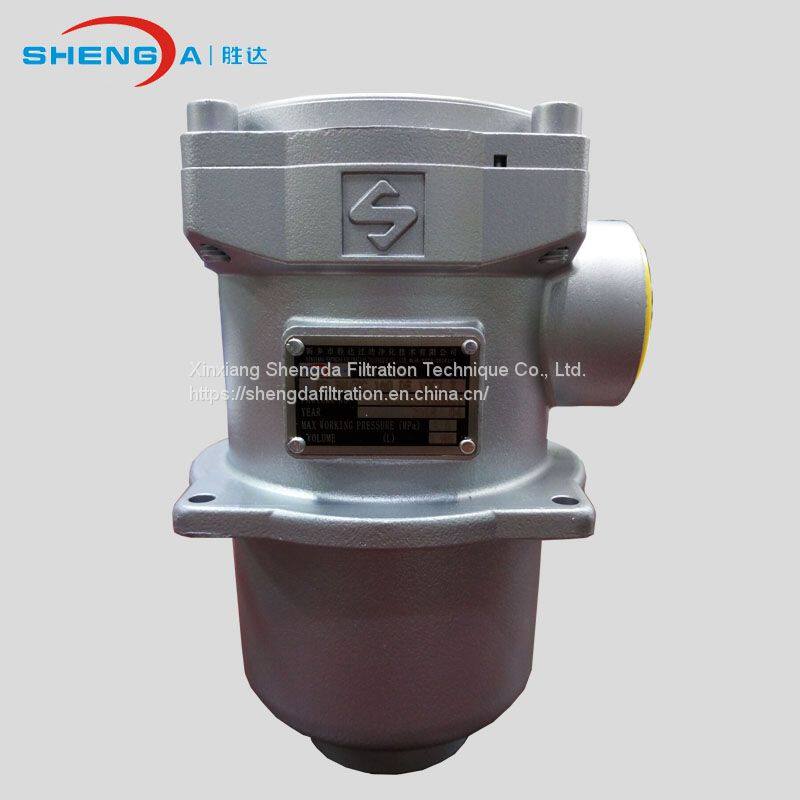

4. Photos

Product Tags: hydac tank top filter , hydac inline filter , hydac inline oil filter , hydac inline hydraulic filter , hydac inline hydraulic oil filter , hydac tank top oil filter , hydac oil tank top filter , hydac rf filter , hydac oil filter
