2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors

2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors thumbnail-1
2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors thumbnail-2
2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors thumbnail-3
2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors thumbnail-4
2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors thumbnail-5
2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors photo-1

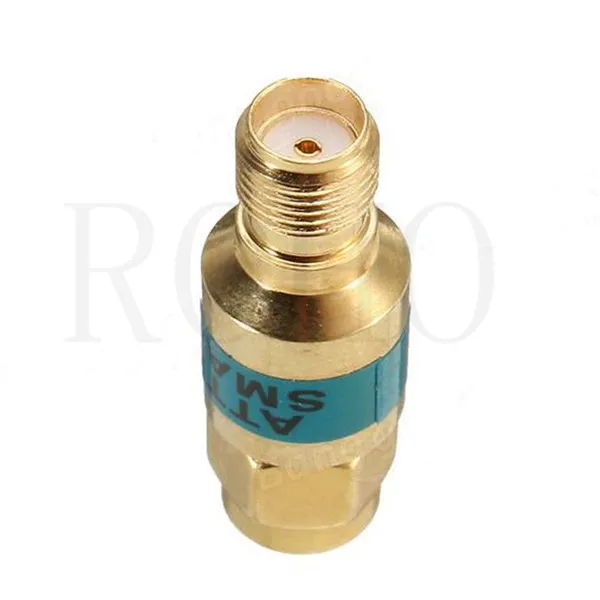

2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors photo-2

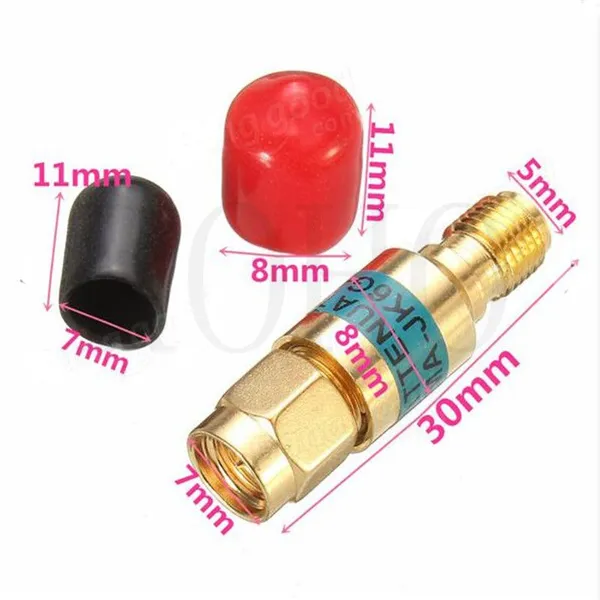

2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors photo-3

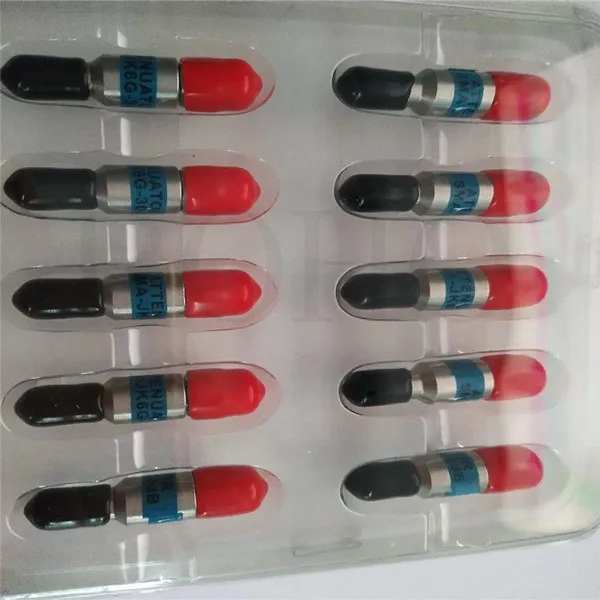

2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors photo-4

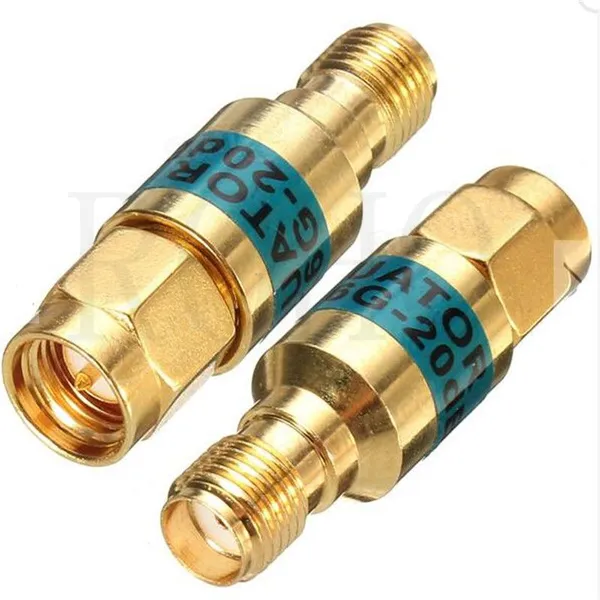

2W SMA-Jk Male to Female RF Coaxial Attenuator 6GHz 50ohm 6dB Connectors photo-5
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ROHO
Place of Origin:
China
Model Number:
RF Coaxial Attenuator
Contact Supplier Request Quote Chat Now
Roho Connector Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ROHO
Place of Origin China
Model Number RF Coaxial Attenuator
Type SMA
Application RF
Gender Male
ELECTRICAL DATA
Impedance                                                                   50Ω
Frequency range (for connector interface) DC~18GHz
Dielectric withstanding voltage (at sea level) ≥750-1500V,50Hz  (depending on cable)
Working voltage (at sea level) ≥250-500V,50Hz (sea level) / ≥65-125V,50Hz  (Height 21000M)
Insulation resistance ≥ 5000 mΩ
Contact resistance Inner conductor: ≤3mΩ
Outer conductor: ≤2.5mΩ
RF leakage(2-3GHZ) Flexible: ≥60dB
Semi-rigid cable: ≥100dB
MECHANICAL DATA
Coupling nut torque 0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs
Coupling nut retention force ≥270N / 60.7 lbs
Contact captivation axial  ≥27N / 6.1 lbs
Durability (matings) ≤500
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies, outer contacts Beryllium copper--Au plating
Stainless steel--Passivation
Brass--Au plated / ternary alloy plating
Phosphor bronze --Au plating
Pin contacts Brass/Beryllium copper--Au plating
Socket contacts Beryllium copper / Phosphor bronze--Au plating
Crimp ferrules Brass--Au plating
Insulator PTFE
Gaskets Silicone rubber

Product Tags: RF Connectors , RF Coaxial Connectors , RF Coaxial Attenuator 6GHz 3dB Connectors , 2W SMA-Jk Male to Female Attenuator , Male to Female Fixed Fiber Optic Attenuator , 2W SMA Attenuators , RF Adapters , Coaxial Cable Connectors , 4.3/10 Male to Female Attenuator
