Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter

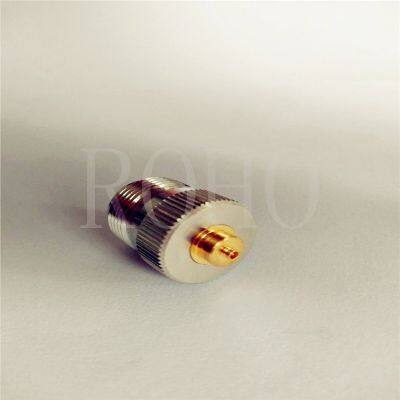

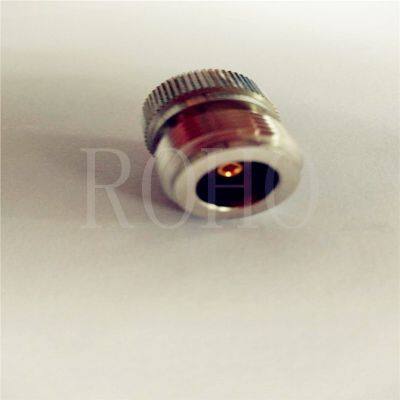

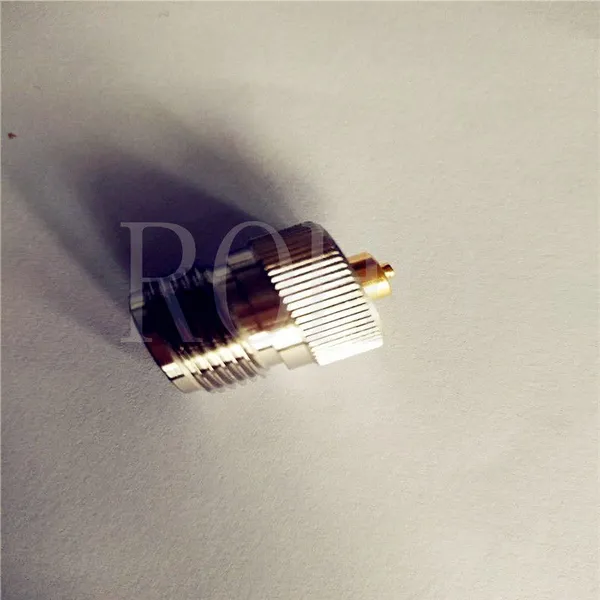

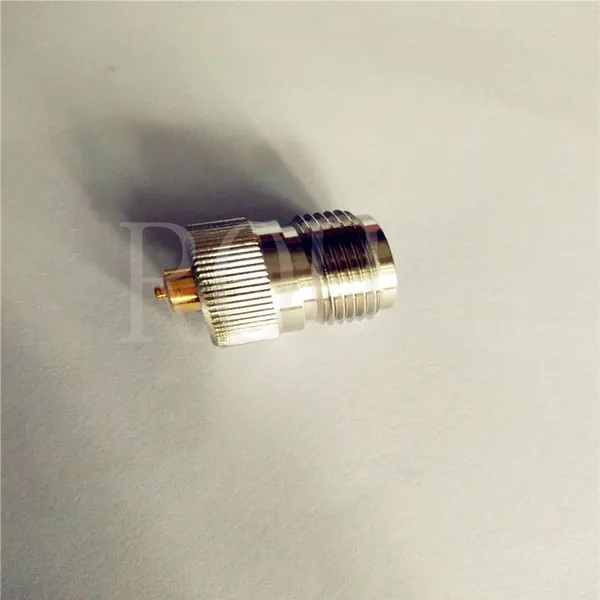

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter

Name: RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter
Brand: ROHO
SKU: 167736721
Availability: InStock

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter thumbnail-1

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter thumbnail-2

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter thumbnail-3

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter thumbnail-4

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter thumbnail-5

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter photo-1

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter photo-2

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter photo-3

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter photo-4

RF N Jack Female to Ufl/Ipex/Mhf Coaxial Connector Adapter photo-5

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

ROHO

Place of Origin:

China

Model Number:

RF Coxial Connector Adapters

Contact Supplier Request Quote Chat Now

Roho Connector Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name ROHO

Place of Origin China

Model Number RF Coxial Connector Adapters

Type Adapter

Application RF

Gender Female

ELECTRICAL DATA
Impedance	50Ω
Frequency range (for connector interface)	DC~18GHz
Dielectric withstanding voltage (at sea level)	≥750-1500V,50Hz (depending on cable)
Working voltage (at sea level)	≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M)
Insulation resistance	≥ 5000 mΩ
Contact resistance	Inner conductor: ≤3mΩ
Contact resistance	Outer conductor: ≤2.5mΩ
RF leakage(2-3GHZ)	Flexible: ≥60dB
RF leakage(2-3GHZ)	Semi-rigid cable: ≥100dB
MECHANICAL DATA
Coupling nut torque	0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs
Coupling nut retention force	≥270N / 60.7 lbs
Contact captivation axial	≥27N / 6.1 lbs
Durability (matings)	≤500
ENVIRONMENTAL DATA
Temperature range	-65°C to +165°C
MATERIAL DATA
Bodies, outer contacts	Beryllium copper--Au plating
	Stainless steel--Passivation
	Brass--Au plated / ternary alloy plating
	Phosphor bronze --Au plating
Pin contacts	Brass/Beryllium copper--Au plating
Socket contacts	Beryllium copper / Phosphor bronze--Au plating
Crimp ferrules	Brass--Au plating
Insulator	PTFE
Gaskets	Silicone rubber

Product Tags: RF Coaxial Cable Connectors , RF Coaxial Connector Adaters , RF Coaxial Adapters , N to Ipex/Ufl RF Coaxial Adapters , SMA to N RF Coaxial Connectors for Cable , N to DIN RF Coaxial Adapters , Coaxial Cable Adapter , 4.3/10 to N Connector Adapter , Cable Connecto
