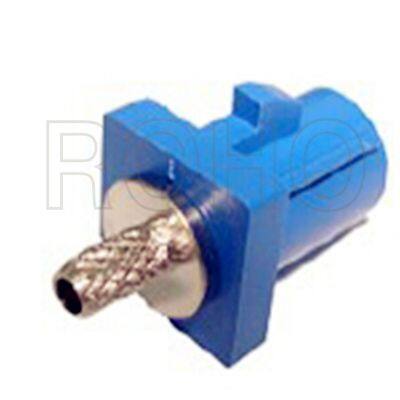

Fakra RF Connector Female Plug for Rg174, Rg178, Rg316, Rg58 Antenna Cable
US$ 1 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ROHO
Place of Origin:
China
Model Number:
Fakra RF Connector Female Plug
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Straight Blue/Gray/White Color RF Fakra Connector for Rg58/174/316 CableUS$ 1 - 10MOQ: 1 Piece -

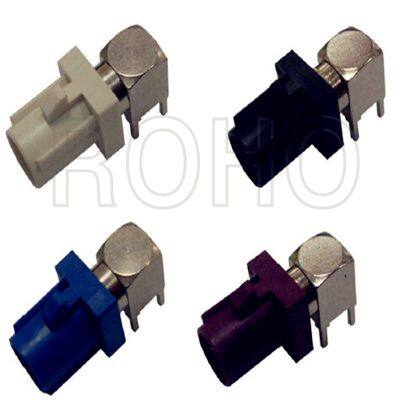

Right Angle RF Coaxial Fakra Connector Blue/Gray/Red Color for PCB MountUS$ 1 - 10MOQ: 1 Piece
-
Straight Gold Plated RF Coaxial Female Jack MCX Connector for LMR240 400 CableUS$ 1 - 10MOQ: 1 Piece
-
Right Angle RF Coaxial Male Plug MMCX Connector for Rg316 58 6 CableUS$ 1 - 10MOQ: 1 Piece
-
RF Coaxial SMB Connectors for PCB Mount and CableUS$ 1 - 10MOQ: 1 Piece
Brand Name
ROHO
Place of Origin
China
Model Number
Fakra RF Connector Female Plug
Type
Other, Fakra
Application
Automotive
Gender
Female
| ELECTRICAL DATA | |
| Insertion Loss | ≤0.25dB |
| Characteristic impedancd | 50Ω |
| Frequency range | 0~6GHz |
| Working voltage | ≤335V |
| VSWR | ≤1.3 |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding voltage | ≥1000V |
| Contact resistance | ≤20mΩ |
| MECHANICAL DATA | |
| Plastic housing retention force | ≥100N |
| Cable retention force | ≥120N |
| Temperature Range | -40~+90 |
| Solder version | to 200ºC/60s |
| Solder version SND | to 260ºC/60s |
| Material And Plating | |
| Plastic housing | P.A |
| Female center contacts | Bronze |
| female and male body ¢er contact | Brass |
| Insulators | PTFE |
