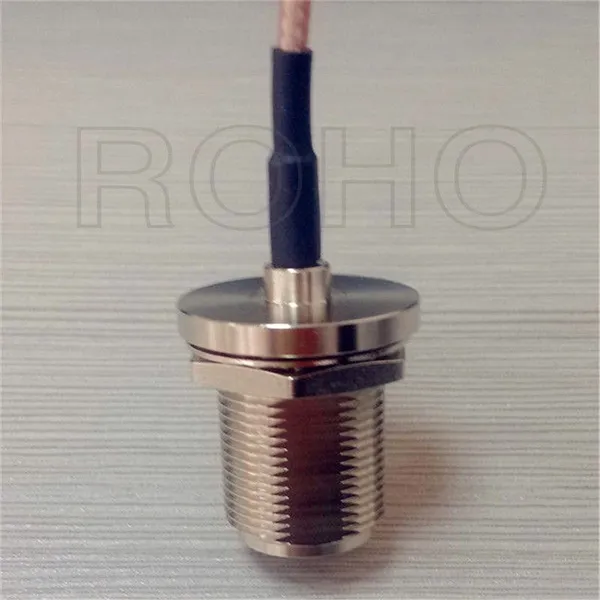

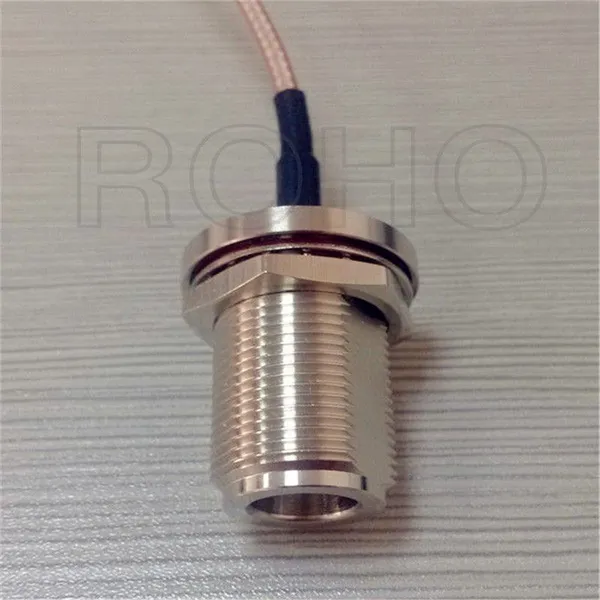

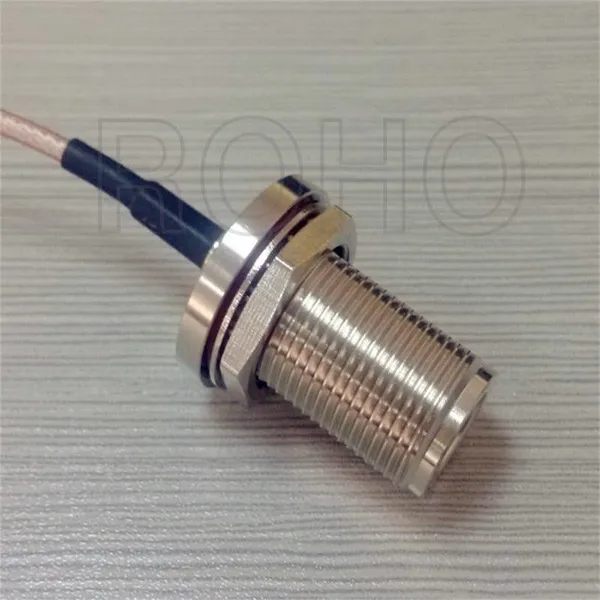

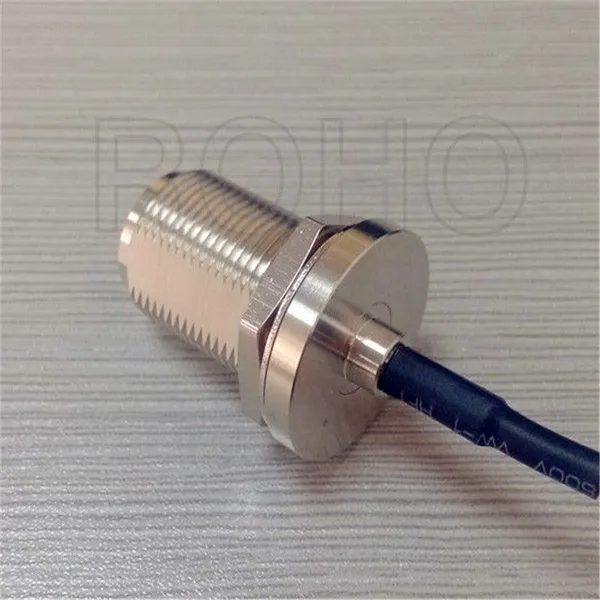

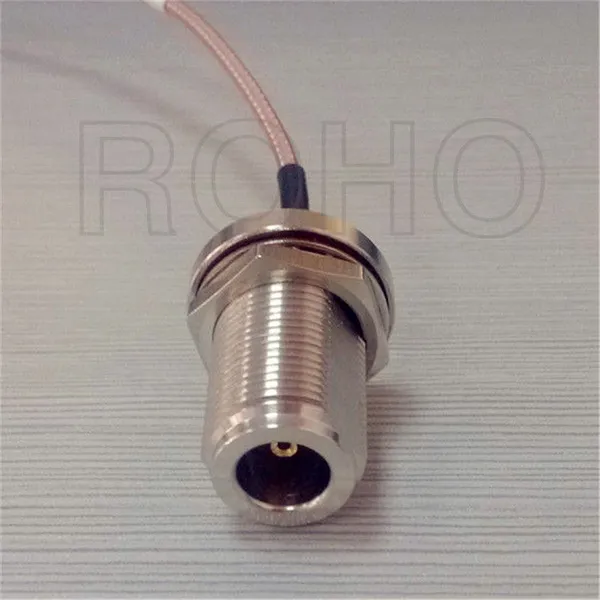

Straight Female Jack N RF Coaxial Connector for Rg316 141 Cable

Name: Straight Female Jack N RF Coaxial Connector for Rg316 141 Cable
Brand: ROHO
Price: USD $1 - 10 / Piece

FOB Price

USD $1 - $10 / Piece

1 Piece(Min.Order)

Product Details

Brand Name:	ROHO	Place of Origin:	China	Model Number:	N RF Coaxial Connector
Type:	F	Application:	RF	Gender:	Female

ELECTRICAL DATA
Impedance	50Ω
Frequency Range	Flexible cables DC 11GHz, semi-rigd cables DC18GHz
Withstand Voltage	≥2500V, 50Hz
Working Voltage	≤1000V, 50Hz (sea level)
Insulation Resistance	≥5000mΩ
Contact Resistance	Inner conductor: ≤1.0mΩ
Contact Resistance	Outer conductor: ≤0.2mΩ
RF leakage(2-3GHz)	Flexible: ≥90dB
3rd order intermodulation	≥140dBc
MECHANICAL DATA
Coupling nut torque	Recommended: 68Ncm--123Ncm / 6.0 in. Lbs--10 in. Lbs
Coupling nut torque	Proof torque: 170 Ncm / 15.0 in. Lbs
Proof torque	170Ncm / 15.0 in. Lbs
Durability (matings)	≥500
ENVIRONMENTAL DATA
Temperature range	-65°C to +165°C
MATERIAL DATA
Bodies	Brass--Ternary alloy plating
Pin contacts	Brass--Au/AG plating
Socket contacts	Copper beryllium alloy--Au plating
Crimp ferrules	Brass-- ternary alloy plating
Insulator	PTFE
Gaskets	Silicone rubber

ROHO CONNECTOR LIMITED: Contact nameAlan.xiao; Addressbao'an Shenzhen,Guangdong
