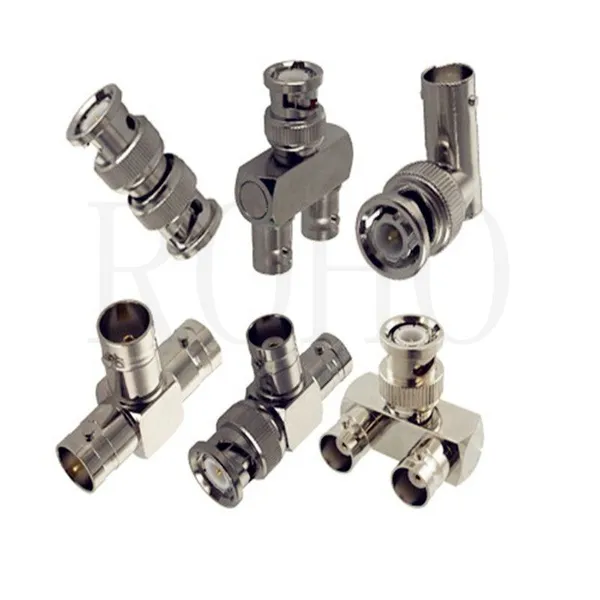

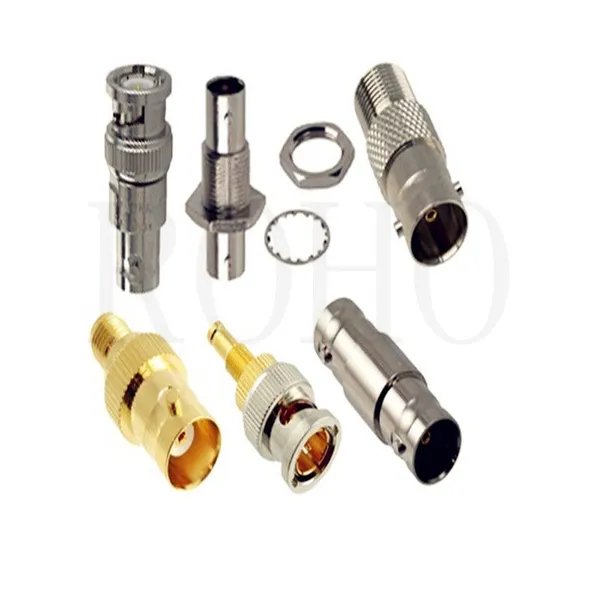

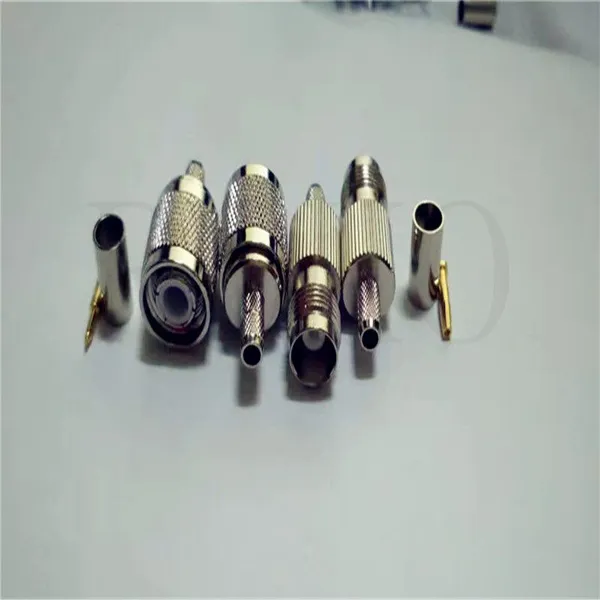

Waterproof 75/50 Ohm BNC RF Coxial Connector for Coaxial Cable

Name: Waterproof 75/50 Ohm BNC RF Coxial Connector for Coaxial Cable
Brand: ROHO
Price: USD $1 - 10 / Piece

FOB Price

USD $1 - $10 / Piece

1 Piece(Min.Order)

Product Details

Brand Name:	ROHO	Place of Origin:	China	Model Number:	Waterproof BNC RF Coxial Connector
Type:	BNC	Application:	RF	Gender:	Female

ELECTRICAL DATA
Impedance	50Ω
Frequency range (for connector interface)	DC~4GHz
Dielectric withstanding Voltage (at sea level)	1500V rms, 50Hz (depending on cable)
Working voltage (at sea level)	500V rms, 50Hz (depending on cable)
Insulation resistance	≥ 5000 mΩ
Contact resistance	centre contact≤1.5mΩ
Contact resistance	outer contact: ≤ 1 mΩ
RF-leakage (between 2÷3 GHz)	≥55 dB
MECHANICAL DATA
Coupling nut torque	7Ncm--28Ncm / 0.6 in.lbs--2.5 in.lbs
Coupling nut retention force	≥450N / 101.2 lbs
Contact captivation	≥27N / 6.1 lbs
Durability (matings)	≥500
ENVIRONMENTAL DATA
Temperature range	-65°C to +165°C
MATERIAL DATA
Bodies	Brass--Ni plating
Pin contacts	Brass--Au / Ag plating
Socket contacts	Copper--beryllium Au / Ag plating
Crimp ferrules	Copper alloy--Ni plating
Insulator	PTFE
Gaskets	Silicone rubber


ELECTRICAL DATA
Impedance	75Ω
Frequency range (for connector interface)	DC~1GHz
Dielectric withstanding Voltage (at sea level)	1500V rms, 50Hz (depending on cable)
Working voltage (at sea level)	500V rms, 50Hz (depending on cable)
Insulation resistance	≥ 1000 mΩ
Contact resistance	centre contact≤1.5mΩ
Contact resistance	outer contact: ≤ 1 mΩ
Durability (matings)	≥500
VSWR Right angle	≤ 1.3
MATERIAL DATA
Bodies	Brass--Ni plating
Pin contacts	Brass--Au / Ag plating
Socket contacts	Copper--beryllium Au / Ag plating
Crimp ferrules	Copper alloy--Ni plating
Insulator	PTFE
Gaskets	Silicone rubber

ROHO CONNECTOR LIMITED: Contact nameAlan.xiao; Addressbao'an Shenzhen,Guangdong
