Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable

Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable thumbnail-1
Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable thumbnail-2
Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable thumbnail-3
Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable thumbnail-4
Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable thumbnail-5
Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable photo-1

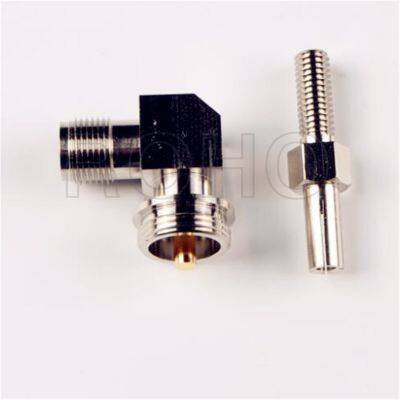

Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable photo-2
Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable photo-3

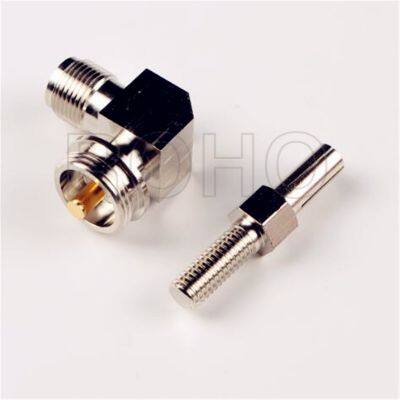

Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable photo-4
Right Angle SMA Female/Jack to TNC Male/Plug RF Coaxial Connector for Cable photo-5
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ROHO
Place of Origin:
China
Model Number:
TNC Male/Plug RF Coaxial Connector
Contact Supplier Request Quote Chat Now
Roho Connector Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ROHO
Place of Origin China
Model Number TNC Male/Plug RF Coaxial Connector
Type TNC
Application RF
Gender Male
ELECTRICAL DATA
Impedance                                                                  50Ω
Frequency Range DC-11GHz
Dielectric withstanding voltage (at sea level) 1500V,50Hz
Working Voltage (at sea level) 500V rms,,50Hz
Insulation Resistance ≥5000mΩ
Contact Resistance Inner conductor: ≤1.5mΩ
Outer conductor: ≤1mΩ
RF leakage(2-3GHZ) ≥90dB
MECHANICAL DATA
Coupling nut torque Recommended: 46Ncm--69Ncm / 4.1 in. lbs--6.1 in.lbs
Proof torque: 170 Ncm / 15.0 in.lbs
Coupling nut retention force ≥450N / 101.2lbs
Contact captivation ≥27N / 6.1lbs
Durability (matings) ≥500
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--Ternary alloy plating
Pin contacts Brass--Au plating
Socket contacts Copper beryllium alloy--Au plating
Crimp ferrules Brass-- Ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber

Product Tags: RF Connectors , RF Coaxial Connectors , TNC RF Coaxial Connectors , SMA Connector to TNC Connector , TNC Connector for N Connector , TNC Male to UHF Female Connector , Cable Connector , Wire Connector , Connectors
