Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable

Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable thumbnail-1
Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable thumbnail-2
Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable thumbnail-3
Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable thumbnail-4
Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable thumbnail-5
Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable photo-1

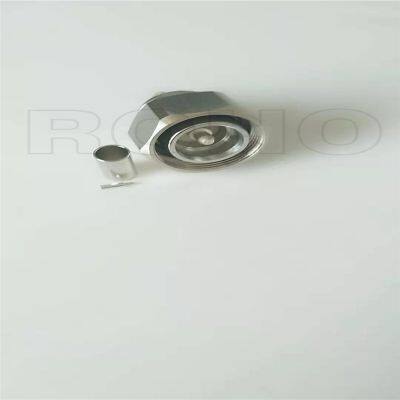

Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable photo-2

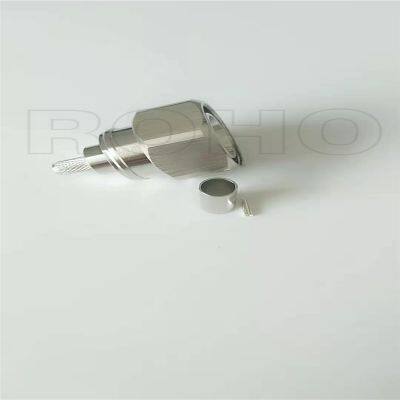

Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable photo-3
Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable photo-4

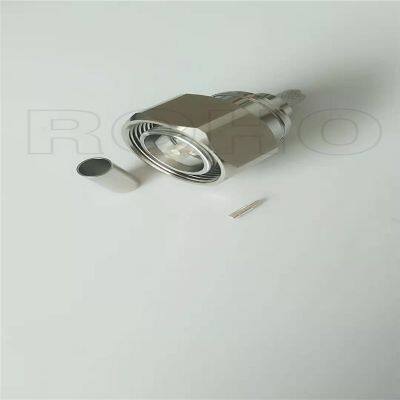

Low Pim -155dbc Min DIN 4.3/10 Male Plug Connector for Rg142 Cable photo-5
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ROHO
Place of Origin:
China
Model Number:
Min DIN 4.3/10 Connectors
Contact Supplier Request Quote Chat Now
Roho Connector Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ROHO
Place of Origin China
Model Number Min DIN 4.3/10 Connectors
Type DIN
Application RF
Gender Male
ELECTRICAL DATA
Impedance                                                                  50Ω
Frequency Range DC 3--18GHz
Dielectric withstanding voltage (at sea level) 4000 V rms,50Hz
Working voltage (at sea level) 2500 V rms,50Hz
Insulation resistance ≥ 100000 mΩ
Contact resistance Inner conductor: ≤0.4mΩ
Outer conductor: ≤1.5mΩ
RF leakage (at 1 GHz) ≥128dB
MECHANICAL DATA
Coupling nut torque Recommended: 25Ncm--30Ncm / 221 in. lbs--260 in.lbs
Proof torque: 35 Ncm / 310 in.lbs
Coupling nut retention force ≥1000N / 225.0 lbs
Contact captivation ≥200N / 45.0 lbs
Durability (matings) ≥500
ENVIRONMENTAL DATA
Temperature range -65°C  to +165°C
MATERIAL DATA
Bodies Brass--ternary alloy plating
Pin contacts Brass--Au/Ag plating
Socket contacts Phosphor bronze / Beryllium copper--Ag plated
Crimp ferrules Copper--ternary alloy plating
Insulator PTFE
Gaskets Silicone rubber
